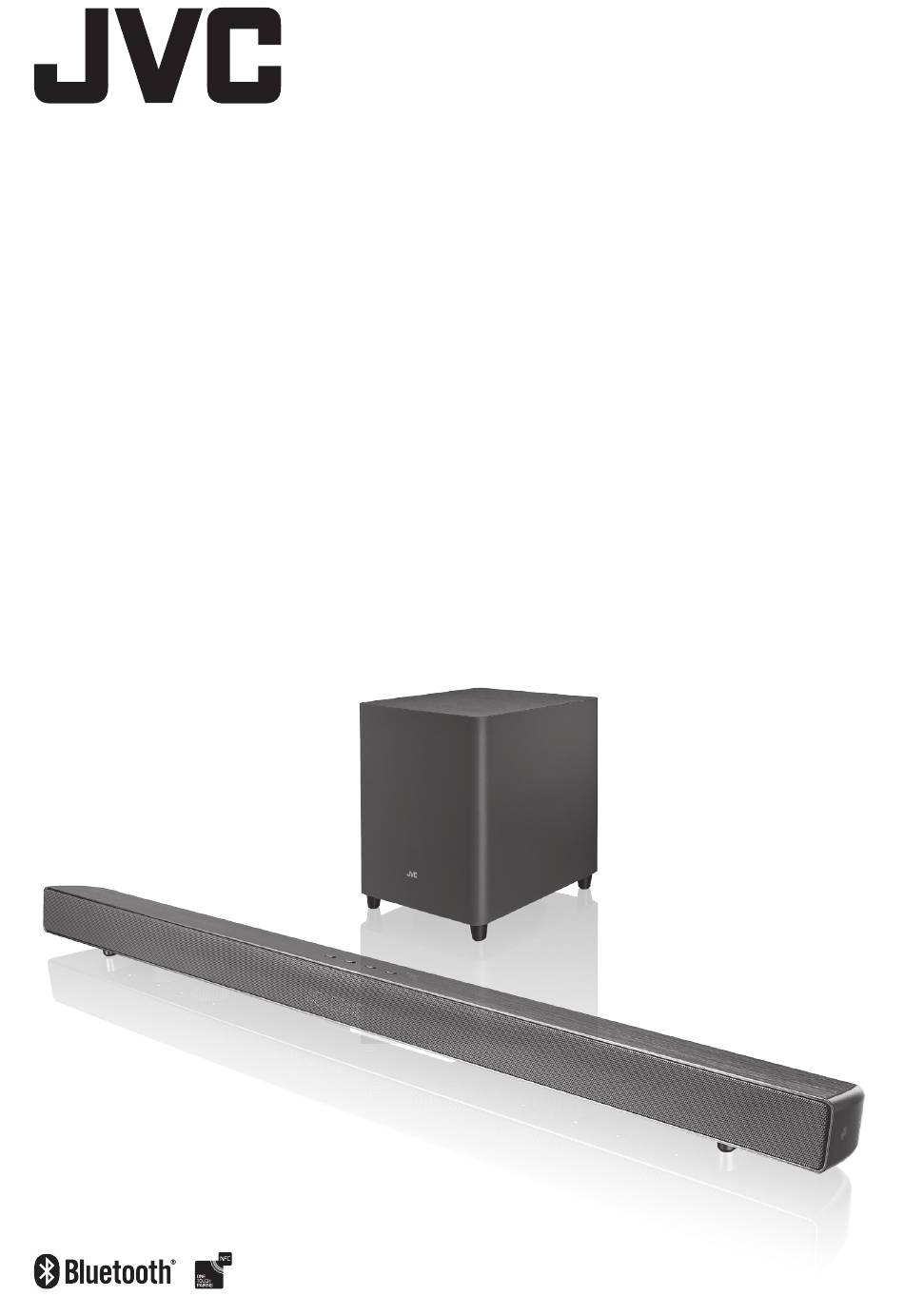

  • Page 1 Instruction Manual 2.1CH ALUMINIUM WIRELESS SOUNDBAR TH-WL707HX...

  • Page 2: Table Of Contents

    Contents Safety Warnings ........................3 Unpacking ..........................5 Product Overview ........................6 Main Unit .................................6 Rear View of Subwoofer ..........................7 Remote Control ............................8 Preparation ...........................9 Battery Replacement for the Remote Control ..................9 Remote Control Operation Range ......................9 Installing the Foot Pads .......................... 10 Wall Mounting ............................

  • Page 3: Safety Warnings

    Safety Warnings • Read all the instructions carefully before • A minimum distance of 5 cm around the using the unit and keep them for future unit should be maintained to allow for reference. sufficient ventilation. • Retain the manual. If you pass the unit • Do not install or place this unit in a onto a third party make sure to include this bookcase, built-in cabinet or in another...
  • Page 4 Supervision Maintenance • Children should be supervised to ensure • Ensure to unplug the unit from the mains that they do not play with the unit and the socket before cleaning. remote control. • Do not use any type of abrasive pad or • Never let anyone especially children push abrasive cleaning solutions as these may anything into the holes, slots or any other...

  • Page 5: Unpacking

    Thank you for purchasing your new JVC Soundbar. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues.

  • Page 6: Product Overview

    Product Overview Main Unit Front View 1. LED Display 3. NFC (Near Field Communication) Sensor Show the current status. 2. Remote Control Sensor Receive signal from the remote control. Top View SOURCE VOL– VOL+ SOURCE VOL– VOL+ Button Switch the unit between On and Standby mode.

  • Page 7: Rear View Of Subwoofer

    Rear View 2A Socket 4. AUX 2 Socket 2. COAXIAL Socket 5. AUX 1 (L/R) Sockets 3. OPTICAL Socket Rear View of Subwoofer Power PAIR AC 100-240V~ 1. POWER Indicator 3. AC 100~240V Power Socket Light up orange when the pairing 4.

  • Page 8: Remote Control

    Remote Control Button Switch the unit between On and Standby mode. Button PAIR Mute the unit or resume the sound. AUX 1 AUX 2 3. AUX 1 Button Press to enter AUX 1 mode. COAX PAIR Button Direct switch to Bluetooth® mode. Press and hold to enable Bluetooth®...

  • Page 9: Preparation

    Preparation Battery Replacement for the Remote Control 1. Press and slide the back cover to open the battery compartment of the remote control. 2. Insert two AAA size batteries. Make sure the (+) and ( – ) ends of the batteries match the (+) and ( –...

  • Page 10: Installing The Foot Pads

    Installing the Foot Pads Ensure all cables to the main unit are disconnected before installing or removing the foot pads. Wall Mounting • Installation must be carried out by qualified personnel only. Incorrect assembly can result in severe personal injury and property damage (if you intend to install this product yourself, you must check for installations such as electrical wiring and plumbing that may be buried inside the wall).
  • Page 11 3. Firmly fix 1 dowel (not included) into each hole in the wall if necessary. Dowel Solid wall (i.e., Solid brick, Solid concrete, Solid wood, Solid wooden battens) Drywall, Plaster wall, Lath wall, etc. 4. Insert 1 screw (not included) into each dowel. Be sure to leave a 3 mm gap between the wall and the screw’s head.

  • Page 12: Speakers Placement

    Speakers Placement SOUNDBAR • The subwoofer should be within 5 metres of the soundbar in an SUBWOOFER open area (the closer the better). • Do not put anything on the top of the subwoofer. Soundbar Soundbar carries most of the dialog as well as music and effects. •...

  • Page 13: Connections

    Connections This section involves various methods of connecting the product to other external components. Ensure all audio connections of the unit are connected before connecting to the mains power socket. Method 1: Optical / Coaxial Connection If your extneral device has an optical / coaxial socket, this is the best way to connect your soundbar.

  • Page 14: Method 2: Aux Connection

    Method 2: AUX Connection This is a basic connection for connecting your external device to your soundbar. Use an RCA to RCA stereo audio cable (included) or RCA to 3.5mm stereo audio cable (not included) to connect the soundbar’s AUX 1 (L/R) socket to the AUDIO OUT sockets of the external device.

  • Page 15: Connecting To The Mains Supply

    • Please turn the unit off completely to save energy when not in use. • The mains adapter and mains cable are designed for this JVC soundbar only. DO NOT use the mains adapter and mains cable for other purposes.

  • Page 16: Pairing The Wireless Subwoofer With The Soundbar

    Pairing the Wireless Subwoofer with the Soundbar Automatic Pairing Plug the soundbar and the subwoofer into the mains sockets and switch on the subwoofer. on the unit or on the remote control to switch the unit to On mode. The display will Press show “WELCOME”.

  • Page 17: General Operation

    This instruction manual explains the basic instructions for operating this unit. Unless otherwise stated, all operations described are based on remote control use. General Operation Standby / ON When you first connect the unit to the mains socket, the unit will be in Standby mode. During Standby mode, the POWER indicator of the subwoofer will be off.

  • Page 18: Adjusting The Speaker Level Settings And Effects

    Adjusting the Speaker Level Settings and Effects Adjusting the Volume Press VOL + / – to adjust the volume. • • If you wish to turn the sound off, press on the remote control. The display will show again, or press VOL + / – on the unit or on the remote control to “MUTE”.

  • Page 19: Bluetooth® Operation

    Bluetooth® Operation ® Pairing the unit with a Bluetooth device to listen to music: First time pairing 1. During On mode, press SOURCE on the unit repeatedly or press PAIR on the remote control to select Bluetooth® mode. The display will show BT. Then PAIRING will flash in the display.

  • Page 20: Maintenance

    Maintenance Ensure the unit is fully unplugged from the mains socket before cleaning. • To clean the units, wipe the case with a slightly moist, lint-free cloth. • Do not use any cleaning fluids containing alcohol, ammonia or abrasives. • Do not spray aerosol at or near the unit.
  • Page 21 Problem Solution The unit does not • The unit may freeze up during use. Switch the unit off and respond when pressing then on again at the mains socket to reset the unit. any buttons. Intermittent sound • You are at the operating limit of the subwoofer. Move the output from subwoofer.

  • Page 22: Specifications

    Specifications Brand Model TH-WL707HX ECO Standby Power < 0.5W Soundbar Power Supply Input AC100-240V ~ 50/60Hz, 1.0A Power Supply Output DC15V Main Unit Input DC15V Power Consumption Bluetooth® Bluetooth® 4.0 (A2DP) Signal to Noise Ratio > 65dB Net Weight 1.7kg...
  • Page 23 Others Information and Licences For general information about this appliance and handy hints and tips, please visit www.knowhow.com/knowledgebank or call UK: 0344 561 1234 Ireland: 1890 818 575. Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day.
  • Page 24 For Help and Support Call UK: 0344 561 1234 Ireland: 1890 818 575 The product is distributed and warranted exclusive by DSG Retail Ltd. “JVC” is the trademark of JVC KENWOOD Corporation, used by DSG Retail Ltd. under license. (IB-TH-WL707HX-150515V2)
