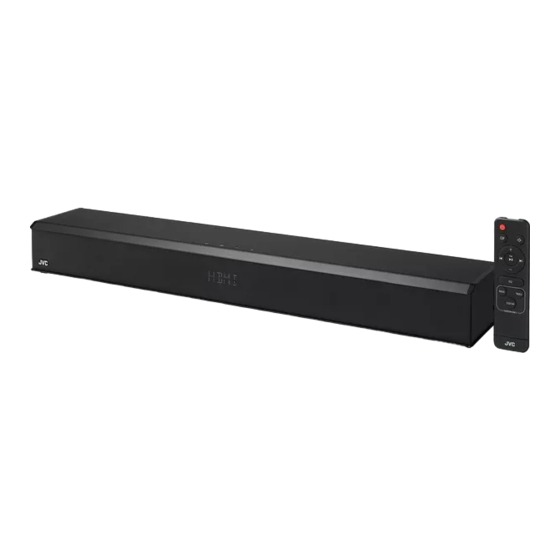

2.1ch soundbar with built in subwoofer

Advertisement

Safety Warnings - Soundbar
• Read all the instructions carefully before
using the unit and keep them for future
reference.
• Retain the manual. If you pass the unit
onto a third party make sure to include this
manual.
• Check that the voltage marked on the
rating label matches your mains voltage.
Damage
• Please inspect the unit for damage after
unpacking.
• Do not continue to operate the unit if you
are in any doubt about it working normally,
or if it is damaged in any way - switch off,
withdraw the mains plug and consult your
dealer.
Location of Unit
• The unit must be placed on a flat stable
surface and should not be subjected to
vibrations.
• Do not place the unit on sloped or unstable
surfaces as the unit may fall off or tip over.
• The mains socket must be located near the
unit and should be easily accessible.
• This unit is designed for indoor, domestic
use only.
Temperature
• Avoid extreme degrees of temperature,
either hot or cold. Place the unit well away
from heat sources such as radiators or gas /
electric fires.
• Avoid exposure to direct sunlight and other
sources of heat.
• Attention should be drawn to the use of
apparatus in moderate climates.
Naked Flames
• Never place any type of candle or naked
flame on the top of or near the unit.
Moisture
• To reduce the risk of fire, electric shock or
product damage, do not expose this unit
to rain, moisture, dripping or splashing.
No objects filled with liquids, such as
vases, should be placed on the unit. Do
not operate the unit with wet hands, near
water or other liquid.
• If you spill any liquid into the unit, it can
cause serious damage. Switch it off at the
mains immediately. Withdraw the mains
plug and consult your dealer.
Ventilation
• To prevent the risk of electric shock or
fire hazard due to overheating, ensure
that curtains and other materials do not
obstruct the ventilation vents.
• A minimum distance of 5 cm around the
unit should be maintained to allow for
sufficient ventilation.
• Do not install or place this unit in a
bookcase, built-in cabinet or in another
confined space. Ensure the unit is well
ventilated.
Safety
• Always disconnect the unit from the mains
supply before connecting / disconnecting
other devices or moving the unit.
• Unplug the unit from the mains socket
during a lightning storm.
• In the interests of safety and to avoid
unnecessary energy consumption,
never leave the unit switched on while
unattended for long periods of time, e.g.
overnight, while on holiday or while out of
the house. Switch it off and disconnect the
mains plug from the mains socket.
Mains Cable
• Make sure the unit or unit stand is not
resting on top of the mains cable, as the
weight of the unit may damage the mains
cable and create a safety hazard.
• If the mains cable is damaged it must be
replaced by the manufacturer, its service
agent, or similarly qualified persons in
order to avoid a hazard.
The mains plug is used as disconnect
device, the disconnect device shall
remain readily operable.
Interference
• Do not place the unit on or near appliances
which may cause electromagnetic
interference. If you do, it may adversely
affect the operating performance of the
unit, and cause a distorted picture or
sound.
Batteries
• Batteries used in the remote control for this
unit are easily swallowed by young children
and this is dangerous.
• Keep loose batteries away from young
children and make sure that the battery
holder tray is secure in the remote control.
Seek medical advice if you believe a cell
has been swallowed.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TH-D131B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for JVC TH-D131B

  • Page 1 Safety Warnings - Soundbar • Read all the instructions carefully before Ventilation using the unit and keep them for future • To prevent the risk of electric shock or reference. fire hazard due to overheating, ensure • Retain the manual. If you pass the unit that curtains and other materials do not onto a third party make sure to include this obstruct the ventilation vents.
  • Page 2 • Please dispose of batteries correctly by To prevent the following the guidance in this manual. • Do not expose the battery to direct spread of fire, sunlight or sources of excessive heat. keep candles • Attention should be drawn to the environmental aspects of battery disposal.
  • Page 3 Others Information and Licences Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day. Visit www.partmaster.co.uk or call 0344 800 3456 (UK customers only). Calls charged at National Rate. The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste.
  • Page 4 3rd Floor Office Suite, Omni Park SC, Santry, Dublin 9, Republic of Ireland The product is distributed and warranted exclusive by Currys Group Limited “JVC” is the trademark of JVCKENWOOD Corporation, used by Currys Group Limited under license. (JVC_Soundbar-Safety Warnings-211213V3)
  • Page 5 Instruction Manual 2.1CH Soundbar with built in subwoofer TH-D131B...
  • Page 7: Table Of Contents

    Contents Unpacking ..........................4 Product Overview ........................5 Main Unit .................................5 Remote Control ............................7 Battery Replacement for the Remote Control ..............8 Remote Control Operation Range ......................8 Wall Mounting ........................9 Speaker Placement ............................11 Connections ........................12 Method 1: Optical / Coaxial Connection ...................12 Method 2: HDMI Hub Connection .......................13 Method 3: AUX IN Connection ......................14 Connecting to the Mains Supply ......................15 General Operation ......................16...
  • Page 8: Unpacking

    Thank you for purchasing your new product. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues. Read all the safety instructions carefully before use and keep this instruction manual for future reference.
  • Page 9: Product Overview

    Product Overview Main Unit Front View 1. Remote control sensor 2. Display Top View Button Press to switch the unit between ON and STANDBY mode. Source Button Press to select the between LINE (AUX IN), BLUETOOTH, USB, OPT (Optical), COA (Coaxial) and ARC (HDMI ARC) mode.
  • Page 10 Rear View COAXIAL OPTICAL IN AUX IN HDMI ARC COAXIAL OPTICAL IN AUX IN HDMI ARC 1. AC~ Socket 5. AUX IN Socket 2. COAXIAL Socket 6. HDMI ARC Socket 3. OPTICAL Socket 7. Wall bracket screws 4. USB Socket...
  • Page 11: Remote Control

    Remote Control Button Switch the unit between ON and STANDBY mode. Source Button Press to select between AUX IN, BLUETOOTH, USB, OPT (Optical), COA (Coaxial) and ARC (HDMI ARC) mode. 3. +/– Button • Press to increase/decrease the volume level. •...
  • Page 12: Battery Replacement For The Remote Control

    Battery Replacement for the Remote Control 1. Press and slide the back cover to open the battery compartment of the remote control. 2. Insert two AAA size batteries. Make sure the (+) and (–) ends of the batteries match the (+) and (–) ends indicated in the battery compartment.
  • Page 13: Wall Mounting

    Wall Mounting • Installation must be carried out by qualified personnel only. Incorrect assembly can result in severe personal injury and property damage (if you intend to install this product yourself, you must check for installations such as electrical wiring and plumbing that may be buried inside the wall). It is the installer’s responsibility to verify that the wall will safely support the total load of the soundbar.
  • Page 14 3. Loosen the screws at the back of the unit. 634 mm COAXIAL OPTICAL IN AUX IN HDMI ARC Loosen the screws 4. Install the wall mounting screws into the back of the unit. COAXIAL OPTICAL IN AUX IN HDMI ARC 5.
  • Page 15: Speaker Placement

    Speaker Placement SOUNDBAR SOUNDBAR Soundbar Soundbar carries most of the dialogue as well as music and effects. • If your TV is placed on a table, you can place the soundbar on the table directly in front of the TV stand, centred with the TV screen. •...
  • Page 16: Connections

    Connections This section involves various methods of connecting the product to other external components. Ensure all audio connections of the unit are connected before connecting to the mains power socket. Method 1: Optical / Coaxial Connection Use an optical cable (included) or coaxial cable (not included) to connect the soundbar’s OPTICAL / COAXIAL socket to the OPTICAL OUT / COAXIAL OUT socket of the external device.
  • Page 17: Method 2: Hdmi Hub Connection

    Method 2: HDMI Hub Connection Using Your TV as a hub • Ensure to use an HDMI cable that can support the ARC function. • HDMI-CEC will be called different names by different manufacturers – please refer to your owner’s manual for details on setting up HDMI-CEC and ARC.
  • Page 18: Method 3: Aux In Connection

    Method 3: AUX IN Connection Use a 3.5 mm to RCA stereo audio cable (not included) or a 3.5 mm to 3.5 mm stereo audio cable (not included) to connect the soundbar’s AUX IN socket to the AUDIO OUT/ HEADPHONES sockets of the external device. After the connection is completed, 1.
  • Page 19: Connecting To The Mains Supply

    • To switch the unit off completely, remove the mains plug from the mains socket. • Please turn the unit off completely to save energy when not in use. • The mains cable is designed for this JVC soundbar only. DO NOT use the mains cable for other purposes.
  • Page 20: General Operation

    General Operation Standby / ON When you first connect the unit to the mains socket, the unit will be in STANDBY mode. • Press button on the unit or on the remote control to switch the unit on. The display will show “HELLO“.
  • Page 21: Coaxial/Optical/Hdmi Arc/Aux In Operation

    Coaxial/Optical/HDMI ARC/AUX IN Operation There are COAXIAL/OPTICAL/HDMI ARC/AUX IN sockets located at the rear of the unit. 1. Before connecting to the mains socket, ensure all the connections are completed. 2. While in the ON mode, press Source button on the unit or remote control repeatedly to select between AUX IN, OPT (OPTICAL), COA (COAXIAL) and ARC (HDMI ARC) mode.
  • Page 22: Bluetooth® Operation

    1. Press mode. The display will show BLUETOOTH READY. 2. Activate your Bluetooth® device and select the search mode. “TH-D131B” will appear on your Bluetooth® device list. 3. Select “TH-D131B” enter “0000” for the password if necessary. The unit will voice “Paired”...
  • Page 23: Maintenance

    Maintenance Cleaning the Unit Ensure the unit is fully unplugged from the mains socket before cleaning. • To clean the units, wipe the case with a slightly moist, lint-free cloth. • Do not use any cleaning fluids containing alcohol, ammonia or abrasives. •...
  • Page 24: Hints And Tips

    Hints and Tips If a problem does occur, it may often be due to something very minor. The following table contains various tips. If you require additional assistance For UK, please call our UK Call Centre on 0344 561 1234. •...
  • Page 25 Problem Solution I cannot find “TH- • Ensure that the unit is switched on. D131B” on my • Ensure that the Bluetooth® function is activated on your Bluetooth® device Bluetooth® device. • The unit has a Bluetooth® function that can receive a signal within 8 metres.
  • Page 26: Product Fiche And Specifications

    Product Fiche and Specifications Brand Model TH-D131B Soundbar Input AC 220 - 240 V~50/60 Hz Bluetooth® Bluetooth® Version Bluetooth® 4.2 Maximum 5 dBm transmitted power Frequency bands 2402 MHz ~ 2483.5 MHz Power Consumption 30 W USB Output 0.5A Ecodesign Information (Soundbar)
  • Page 28 Product Manuals and enter the model number. Declaration of Conformity (RER) Hereby, Currys Group Limited declares that the radio equipment type [TH-D131B] is in compliance with Radio Equipment Regulations 2017 (S.I. 2017/1206). The full text of the UK declaration of conformity is available at the following internet address: https://www.
