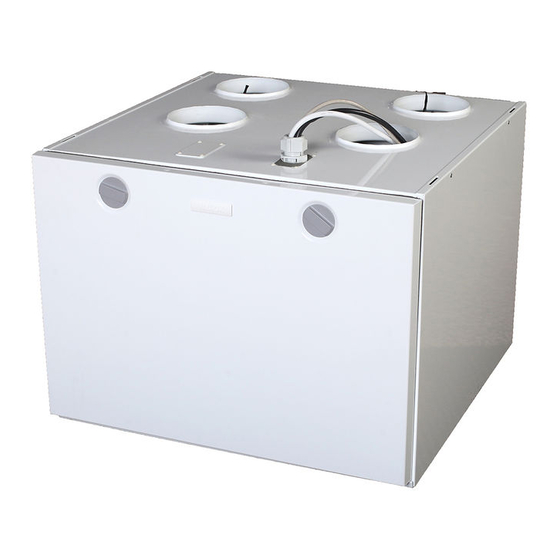

- Page 1 Model Document Vallox 101 MV D5331 Type Valid from B3741 31.08.2020 Updated 21.08.2020 Manual Ventilation unit...
-
Page 2: Table Of Contents
MyVallox installation of the Vallox Silent Klick siphon......9 Cloud service and sign... -
Page 3: Safety
INTENDED USE device. All Vallox ventilation units have been designed to provide appropriate and continuous ventilation so as to present no threat to health and to maintain structures in good condition. IMPORTANT... -
Page 4: Safety Signs Used In The Instructions
INSTALLATION OPTIONS NOTE The standard equipment and • Vallox 101 MV can be mounted either on the wall, or on the ceiling available accessories by using a mounting plate (optional). vary from country to country. SYSTEM DESCRIPTION Internet 2. -
Page 5: Ventilation Unit Control
For the MyVallox Cloud/ Home instructions, Ventilation unit control options. please go to www. techmanuals.info/ ValloxMV/ENG/ Operation of the Vallox ventilation unit can be controlled by the onlinehelp/webhelp following means: • Through the My Vallox Control panel installed in the building. •... -
Page 6: Main Parts
MAIN PARTS R model in the figure Post-heatingresistor (in the supply air duct) Extract air fan Safety switch Internal carbon dioxide and Supply air fan humidity sensor Fine filter for supply air Control panel Heat recovery cell Carbon dioxide sensor (optional) Bypass damper of the HR cell Humidity sensor (optional) Coarse filter for supply air... -
Page 7: Installation
Make sure that the unit is horizontally level after mounting. MOUNTING ON THE CEILING Vallox 101 MV can be equipped with an optional ceiling mount plate. To attach the ceiling mounting plate: • On rafter frames or other frame structure with M8 thread bars so NOTE that they withstand the weight of the unit. -
Page 8: Installing The Ventilation Unit To The Ceiling Mounting Plate
Installing the ventilation unit to the ceiling mounting plate Install the ceiling mounting plate with M8 thread bars so that it is horizontally level. NOTE The end of the thread bars must be 5 mm or less below the fastening nut. Do not fasten the ceiling mounting plate too tight to the ceiling. -
Page 9: Removal Of Condensing Water
147,5 be moved to the pipe connection part that is mounted on the wall. Space required by the alternative Vallox Silent Klick siphon installation method (elbow) MEASURING AND ADJUSTING THE AIR FLOWS OF THE VENTILATION UNIT The accessories delivered with the unit include four (4) air flow measuring tubes. -
Page 10: Dimensions And Duct Outlets
DIMENSIONS AND DUCT OUTLETS Main parts Dimensions and duct outlets Dimensions 461,5 136,5 R model in the figure. In the L model, the parts are mirrored 1. Extract air fan 6. Coarse filter for supply air 7. Coarse filter for extract air 2. -
Page 11: Maintenance
Disconnect the ventilation unit from the mains ventilation unit remains in top condition, giving electricity supply. the best results. To 2. Open door of the Vallox ventilation unit by undoing select and order filter the finger screws. packages, please go to: 3. Lift the door off. -
Page 12: Cleaning The Heat Recovery Cell
Disconnect the ventilation unit from the mains electricity IMPORTANT supply. Handle the cell 2. Open door of the Vallox ventilation unit by undoing the carefully! For example, finger screws. do not lift the cell by the 3. Lift the door off. -
Page 13: Cleaning The Fans
To clean the fan: them. Disconnect the ventilation unit from the mains electricity supply. Handle the fan blades 2. Open door of the Vallox ventilation unit by undoing the finger carefully. Do not screws. remove or move the 3. Lift the door off. -
Page 14: Technical Specifications
TECHNICAL SPECIFICATIONS Product title Product number Vallox 101 MV R 4102189 Vallox 101 MV L 4102197 Air volumes Fans Supply air 90 dm /s, 100 Pa Supply air 0,115 kW 0,9 A EC Extract air 98 dm /s, 100 Pa... -
Page 15: Internal Electrical Connection
Digital input 2 and 130°C overheating protection 11V1 11.1 V operating voltage AN/I Analog input 0-10VDC RM/I 24V relay input CABLE COLOURS RM/O 24V relay output Black Blue Brown White Grey Yellow YEGN Yellow-green © Vallox Oy - All rights reserved... -
Page 16: External Electrical Connection
EXTERNAL ELECTRICAL CONNECTION 7028350 2014-08-29 JS MyVallox MyVallox REMOTE Control MONITORING 0.3W sensor Modbus RTU 2x2x0,5+0,5 2x2x0,5+0,5 MyVallox CO 2 MyVallox 2x2x0,5+0,5 sensor Control 1.2W 2x2x0,5+0,5 2x2x0,5+0,5 External Analog input temperature two different sensor 2x0,5 2x0,5 NTC 4K7 functions 2x0,5 2x0,5 2x0,5 Potential-free contact... -
Page 17: External Electrical Connection For Controlling The Mlv Duct Radiator
Digital and analog ground potential RM/I 24V relay input RS_A Local hardware Modbus A signal RM/O 24V relay output RS_B Local hardware Modbus B signal Circulation pump External temperature sensor connector Solenoid valve D/I1 Digital input 1 © Vallox Oy - All rights reserved... -
Page 18: Duct Radiator Operation
DUCT RADIATOR OPERATION If the duct NOTE: radiator is used in the supply air duct, it Always follow first and foremost the connection diagram can only be used for provided by the HVAC designer or heat pump manufacturer. cooling. Also read the duct radiator manual. The accompanying figure shows an example of the arrangement for connecting the heating/cooling radiator unit When used to... -
Page 19: Duct Radiator Operation Chart
Feed from the distribution board External electrical junction box for the MV Air extraction External NTC sensor for Vallox MV ventilation units 24 VDC relay/contactor for controlling the pump and the solenoid valve. Not included in Duct radiator (reverse connection) the delivery. -
Page 20: Exploded View And Parts List
Damper motor Connection box 3526700 930621 Wall mounting plate 3080700 Post-heating resistor 942220 MyVallox Control panel 949033 Siphon Vallox Silent MyVallox humidity sensor 3494701 Door 4102334 946149 Klick (optional) MyVallox carbon dioxide Coarse and fine filter Mounting screw of the... -
Page 21: Conformity Certificates
CONFORMITY CERTIFICATES... - Page 23 © Vallox Oy - All rights reserved...
- Page 24 Vallox Oy | Myllykyläntie 9-11 | 32200 LOIMAA | FINLAND Customer service +358 10 7732 200 | Aftersales +358 10 7732 270...
