Summary of Contents for Vallox A3740

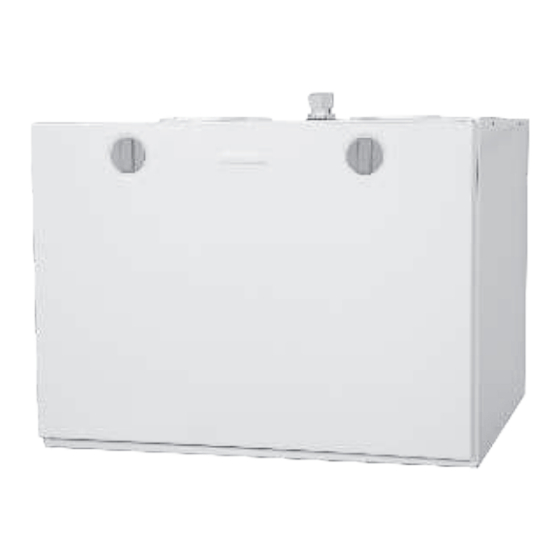

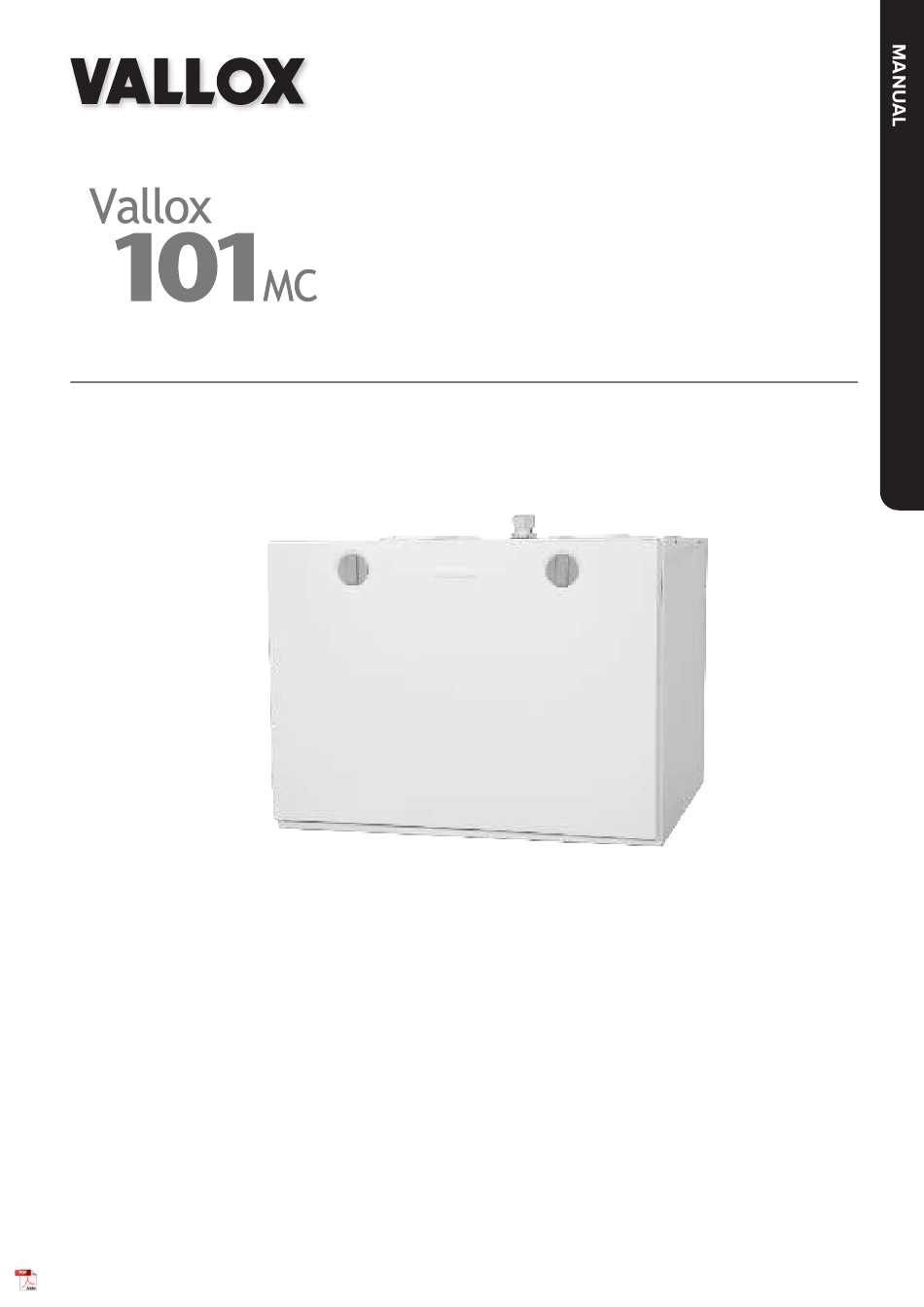

- Page 1 Model Document Vallox 101 MC R D4686 Vallox 101 MC L Valid from 31.08.2020 Type A3740 Updated 20.01.2021 Manual Ventilation unit...
- Page 2 Vallox Capto PTC EC Vallox ProControl panel (optional) (optional) (ordered separately) Vallox Delico PTD EC control hood, Vallox Capto PTC EC control hood, Vallox X-Line PTXP MC control hood, or Vallox X-Line PTXPA MC control hood (ordered separately) Ceiling bushing for electric wires Vallox X-Line PTXP MC...
-
Page 3: Fan Speed Adjustment
FAN SPEED ADJUSTMENT The fan speed of the Vallox ventilation unit is adjusted using a four-step control. The available speed options of the control switch are 1, 2, 3, and 4: Away mode. The ventilation efficiency can be temporarily reduced when the apartment is unoccupied. -
Page 4: Maintenance Reminder
The maintenance reminder will be set off automatically when the door of the ventilation unit is opened or the power is turned off. The maintenance reminder can also be set off manually. Vallox Delico PTD EC and Vallox Capto PTC EC The Vallox Simple Control panel, and the Vallox... -
Page 5: Heat Recovery Cell
BEFORE BEGINNING MAINTENANCE WORK The R model is shown in the figures. When you open the door of Vallox 101 MC, the safety In the L model, the parts are mirrored. switch (S) cuts the power. Despite this, disconnect the power supply plug anyway. - Page 6 FANS The R model is shown in the figures. Check the cleanliness of the fans when servicing the filters In the L model, the parts are mirrored. and the heat recovery cell. Clean the fans as required. The fans are very sensitive to external impacts, and it is recommended that they be cleaned in place rather than removing them.
-
Page 7: Maintenance
See the condensing water connections on page 15. L model R model 147,5 147,5 Installation of the Vallox Silent Klick Installation of the Vallox Silent Klick siphon on the wall. siphon on the bottom pool © Vallox Oy - All rights reserved... - Page 8 Air flow measurement points TECHNICAL SPECIFICATIONS Nimike Product number Measurement points after the outlet collar. The fan curves 4102638 Vallox 101 MC R indicate the total pressure accounted for by duct losses. Vallox 101 MC L 4102629 Air volumes Supply air...
- Page 9 Adjustment position (V) 10,2 11,4 Air fl ow dm³/s 15/20 24/30 33/40 42/48 52/58 61/68 70/76 78/84 83/89 Air fl ow m³/h 54/72 86/108 119/144 151/173 187/209 220/245 252/274 281/302 299/320 , dB (A) © Vallox Oy - All rights reserved...
- Page 10 LINE: Phase An external 0-10VDC voltage supply can be remote NEUTRAL: Neutral connected to the S and GND signals 2 3 4 monitoring 230V 50 Hz SLI: Safety switch phase feed of the control signal for fan control. SNI: Safety switch neutral feed SLO: Safety switch phase to the circuit board Protective earth to a separate block Safety / door switch SNO: Safety switch neutral to the circuit board...
- Page 11 of the short circuit link of the mother board 3 and 5 from the MC unit’s control panel connector EXTERNAL ELECTRICAL CONNECTION with the Vallox Simple Control panel / Vallox PTXP MC, Vallox PTXPA MC cooker hood Control signal S Internal connection 11.2 VDC / +...
- Page 12 EXTERNAL ELECTRICAL CONNECTION Wiring between the control panel and the ventilation unit, NOMAK 2x2x0.5+0.5 with Vallox ProControl panel Ventilation unit cable Control panel connector leave disconnected S/DI2 Cable types specified in the drawing are indicative The phase of 24 VAC feed is connected...
-
Page 13: Installation Site
The outer diameter of the duct is 12mm Wall mounting Mount the Vallox 101 MC on the wall with a mounting plate, as shown in the adjacent figure. Make sure that the unit is horizontally level after mounting. Wall structure The wall structure must be observed in the mounting. - Page 14 The ceiling mounting plate is fastened to the M8 thread Ceiling mounting by using bars with the mounting supplies delivered with the a ceiling mounting plate mounting plate. NOTE! The end of the thread bars must be 5mm or less below the fastening nut (more detailed (optional) instructions are provided with the ceiling mounting plate).
- Page 15 12 mm siphon on the bottom pool Installation of the Vallox Silent Klick siphon on the wall If the Vallox Silent Klick siphon does not fit into the unit Installation of the Vallox Silent Klick siphon on the wall. ...
-
Page 16: Exploded View And Parts List
19 NTC sensor (specify the sensor reference number in the order) ..946140 10 Coarse filter for extract air ................978227 www.vallox.com Vallox Oy | Myllykyläntie 9-11 | 32200 LOIMAA | FINLAND Customer Service +358 10 7732 200 | Technical support +358 10 7732 270 © Vallox - All rights reserved...
