to protect your product, please read the operating instructions before opening the parasol
TUUCI
Shade Pod
assembly & operating instructions
applies to:
Bay Master and Vineyard Shade Pod

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Bay Master Shade Pod and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Tuuci Bay Master Shade Pod

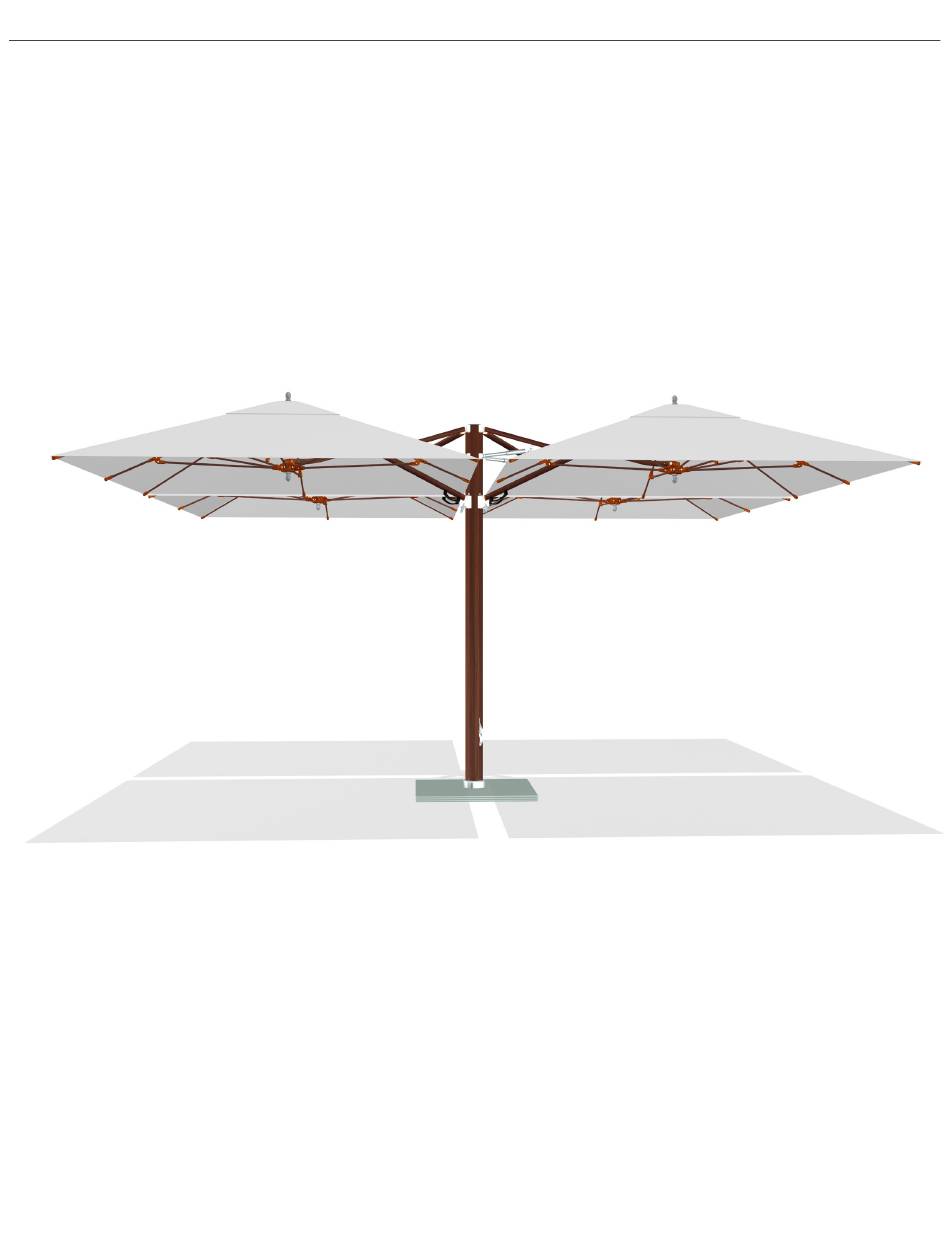

  • Page 1 TUUCI Shade Pod assembly & operating instructions applies to: Bay Master and Vineyard Shade Pod...
  • Page 2 Remove security stem from inside umbrella and mount to your base (instructions included with base). Step 3 Pull pins and lift up cam lock handles. Step 4 Mount umbrella onto security stem and push down cam lock handle until pin engages. security stem cam lock handles ribs beauty cover INSA 5000 | 6.18.2018 tuuci...
  • Page 3 Gently separate each rib individually from the center hub approximately 10 inches. If the rib does not move easily, do not force. Inspect the product for additional packaging. Step 7 To open push arm handle up until it snaps into the locking position arm-handle cart-lock INSA 5000 | 8.18.2018 tuuci...
  • Page 4 ASSEMBLY & OPERATION INSTRUCTIONS SHADE POD Step 8 To close umbrella, unlock the lever (by pushing cart upwards and pushing cart lock lever in) then slide down the cart by pulling down the arm handle. Step 9 Close umbrella with tie back when not in use. arm-handle cart-lock...

This manual is also suitable for:

Vineyard shade pod
