1.4.2 Connecting a 6-Wire Load Cell to the Terminal Block

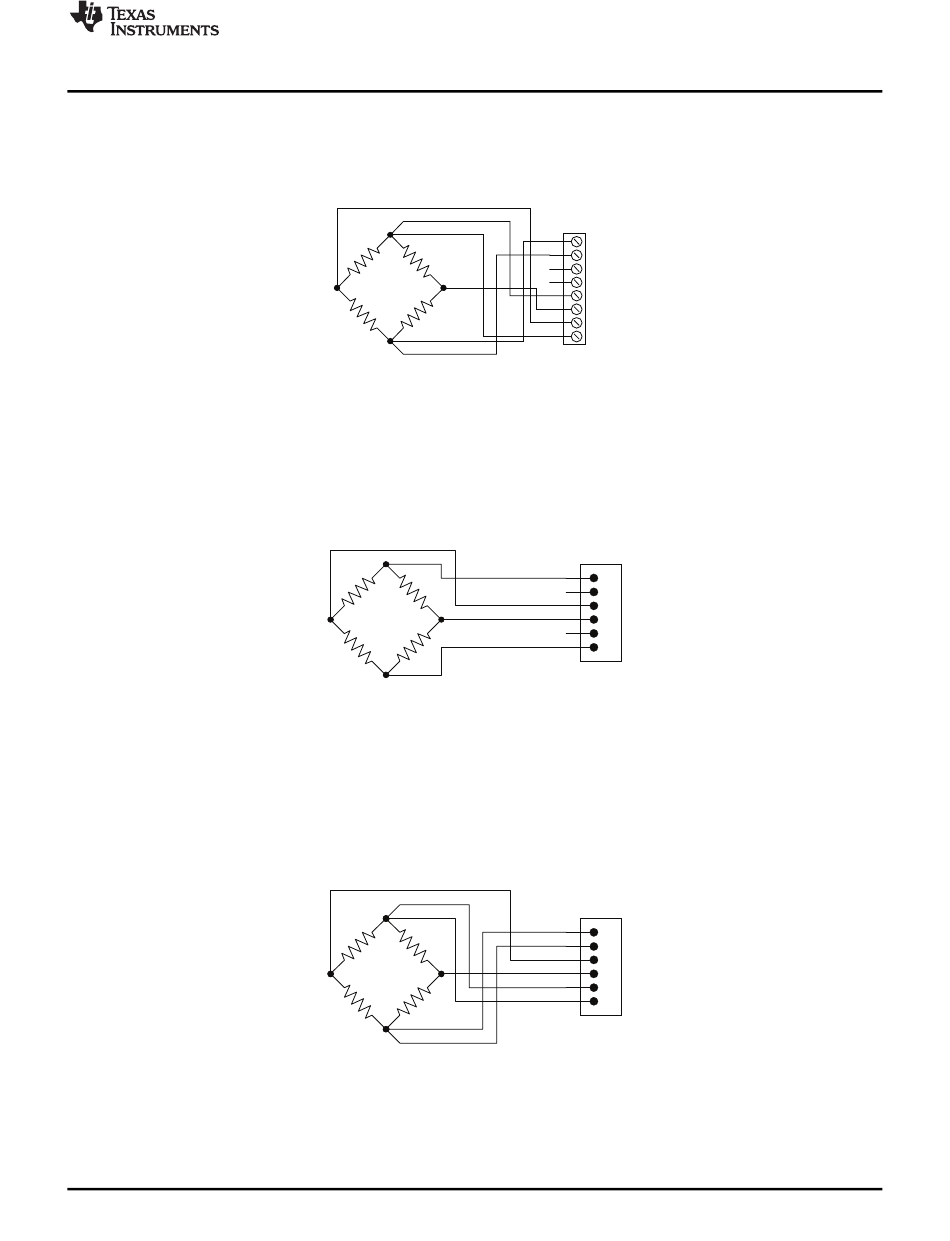

Figure 3 shows the connection of a 6-wire load cell to the terminal block. In this configuration, the load cell
is excited by the +5V power supply, and the ADC reference is taken from the sense wire returning from
the load cell. The sense wire connects to the excitation wire at the bridge sensor.
For this configuration, the reference select switch should be in the EXT position for best performance. The
+5V position also works, but may not perform as well.
1.4.3 Connecting a 4-Wire Load Cell to the Header
Figure 4 shows the connection of a 4-wire load cell to the header. In this configuration, the load cell is
excited by the +5V power supply, and the ADC reference is taken from the power supply.
For this configuration, the reference select switch must be in the +5VA position; the EXT position will not
work.
1.4.4 Connecting a 6-Wire Load Cell to the Header
Figure 5 shows the connection of a 6-wire load cell to the header. In this configuration, the load cell is
excited by the +5V power supply, and the ADC reference is taken from the sense wire returning from the
load cell. The sense wire connects to the excitation wire at the bridge sensor.
For this configuration, the reference select switch should be in the EXT position for best performance. The
+5V position also works, but the device may not perform as well.
SBAU120B – November 2005 – Revised July 2011
Submit Documentation Feedback
OUT-
SENSE+
EXC+
OUT+
EXC-
SENSE-
Figure 3. 6-Wire Load Cell to Terminal Block
Figure 4. 4-Wire Load Cell to Header
Figure 5. 6-Wire Load Cell to Header
Copyright © 2005–2011, Texas Instruments Incorporated
GND
REF-
IN2+
IN2-
REF+
IN1+
IN1-
+5VA
EXC+
6
5
OUT+
4
OUT-
3
2
EXC-
1
EXC+
6
SENSE+
5
OUT+
4
OUT-
3
SENSE-
2
EXC-
1
