SureCall Fusion Professional Yagi Quick Install Manual

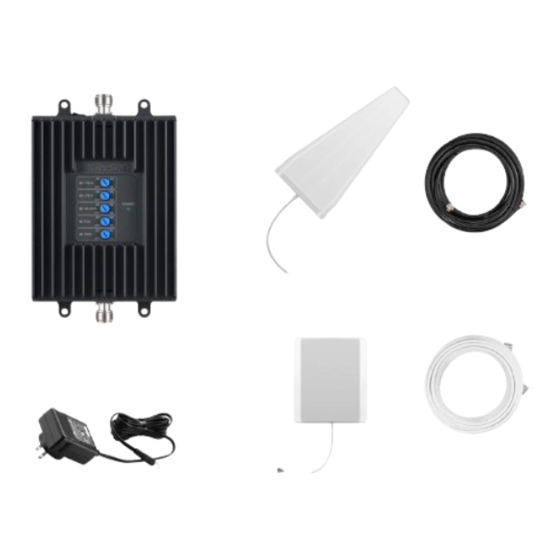

SureCall Fusion Professional
Yagi / Panel Kit with 50Ω cable
Contents
Outside Antenna - Directional Yagi
Booster & Power Supply Outside Cable - SC-400, 50 ft
Before installation, ensure adequate separation between the locations of the outside antenna and Inside antenna – at least 25 ft.

1. FIND AREA OUTSIDE WITH STRONGEST SIGNAL

Using your phone, identify the outside location with the strongest signal. Generally, this is found on the side facing your nearest cell
tower and as high as possible.
Note that Bars are not always a reliable measure of signal. The best way to confirm signal coverage is the ability to place and hold a
call. For specific dB signal measurements, use the methods below. Note that dB measurements appear as a negative number where the
closer to 0, the stronger the signal (eg. -100 dB would be considered a weak signal while -65 dB a strong signal).
Apple iPhones: Dial *3001#12345#* and press Call. In the top-left corner, a dB number appears instead of bars.
Android devices: download the app "Network Signal Info" in the Google Play store.
This signal booster requires a minimum cellular signal reading of -100dB at the location of the outside antenna. Signal between -70dB
and -90dB is recommended for best performance.
Please note: Signal stronger than -50dB may cause the affected frequency bands to turn off.

2. INSTALL THE OUTSIDE ANTENNA

Once you have located the area of strongest signal, mount the antenna to a pole or pipe (not
Washer U-bolt
included) at the highest possible elevation. The directional Yagi antenna works best when facing
Bracket
Nut
the direction of your carrier's cellular tower. To find the location of your carrier's closest cell tower
go to www.cellreception.com.
To install the outside antenna, assemble the u-bolt, bracket, nuts and washers as shown in the
illustration. Keep the connections loose enough to allow the antenna to rotate until the optimum
direction is found.
Note: The outside antenna may be installed on a variety of pipe angles. Ensure that the mounting
area has at least a 12-inch radius clear of obstructions and other radiating elements and orient
the antenna vertically with the drip hole at the bottom.
Once the outside antenna is secured to a pipe or pole, connect one end of the provided 50 ft.
coax cable to the antenna and tighten the connection.
Outside Antenna Assembly

3. INSTALL THE SIGNAL BOOSTER AND INSIDE ANTENNA

Choose a location for mounting the directional panel antenna on vertical surface. The antenna should be at the approximate height of
your cell phone when in use and facing a central area where signal is needed. Please note: Be sure to provide enough separation from
outside antenna - at least 25 ft. Also, the outside and inside antennas should face away from one another.
Using the plate, mark position of desired screw placement and screw mounting plate into place with the slide panel protruding towards
you (see panel antenna illustration below). Slide antenna securely onto mounting plate.
To install the booster, select a location that is near the inside panel antenna and a working AC outlet. Use the supplied screws or
appropriate screws for surface of mounting location and drill through screw tab holes on booster (see Booster Components Diagram
illustration) and mount the booster to a wall.
Connect the inside antenna and booster by connecting one end of the provided 20 ft. of coax cable to the inside antenna and the other
end of the cable to the booster port marked "INSIDE" and hand-tighten the connection.
Next, connect the outside antenna and booster by connecting the remaining end of the 50 ft. cable leading from the outside antenna
to the port of the booster marked "OUTSIDE".

4. CONNECT POWER

Connect the AC power cord to the booster and plug into a 110V AC power outlet. Once the booster has been completely assembled,
turn the booster's power switch on.
Note: If the Power LED does not turn ON or the Alert LEDs continue to flash, see the Troubleshooting section. This booster is rated for 5-15V input
voltage. DO NOT use the booster with a higher voltage power supply. This can damage the booster, cause personal injury and void your warranty.

CONFIGURE GAIN SETTINGS

The SureCall gain dials should be at maximum level and only reduced if other recommended actions do not resolve the issue. Only the
presence of a RED/YELLOW LED indicates the presence of an unresolved issue.
In any of these cases, the first action should be to increase the antenna isolation between the inside and outside antenna as much
as possible and restart the booster. If the situation continues, you can reduce the booster gain in 5dB increments until the LED status
resolves.
SC-FusionPro / 854328008633 05.14.20
Inside Antenna - Directional Panel
Inside Cable - SC-240, 20 ft

LED Indicators

The gain dials on the booster should always be at maximum level unless a control light is flashing red-yellow. Additionally, they should
only be reduced if other recommended actions do not resolve the issue.
Condition
GREEN SOLID
YELLOW SOLID
followed by GREEN SOLID
GREEN FLASHING Slowly
followed by GREEN SOLID
YELLOW FLASHING
Quickly
followed by GREEN SOLID
YELLOW/RED
FLASHING
WARNING: Do not attenuate the uplink and downlink dB settings below 35dB. This could cause the affected frequency band to
turn off.

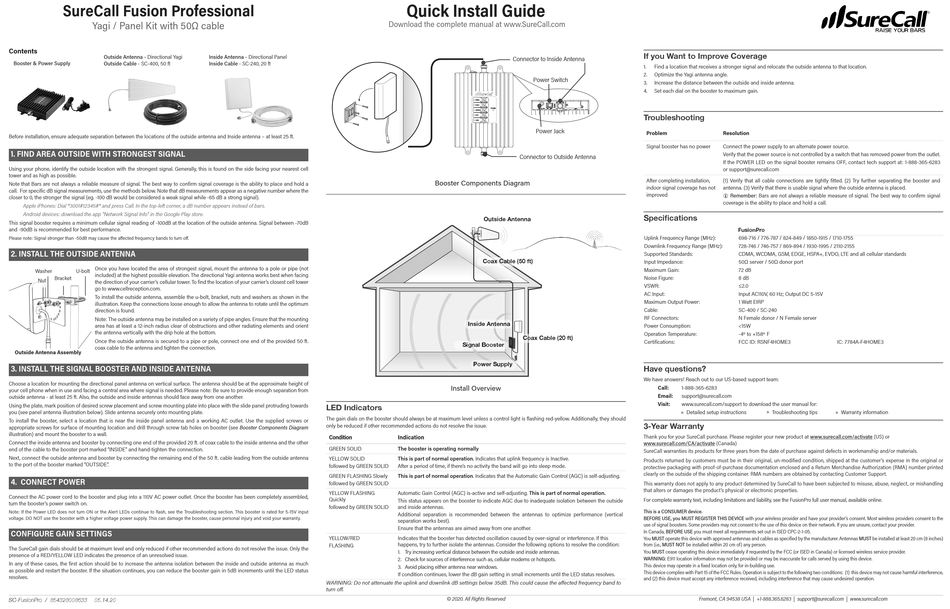

Quick Install Guide
Download the complete manual at www.SureCall.com
Connector to Inside Antenna
Power Switch
44 54
OFF 64
44 54
OFF 64
45 55
OFF 65
52 62
OFF 72
51 61
OFF 71
Power Jack
Connector to Outside Antenna
Booster Components Diagram
Outside Antenna
Coax Cable (50 ft)
Inside Antenna
Coax Cable (20 ft)
Signal Booster
Power Supply
Install Overview
Indication
The booster is operating normally
This is part of normal operation. Indicates that uplink frequency is Inactive.
After a period of time, if there's no activity the band will go into sleep mode.
This is part of normal operation. Indicates that the Automatic Gain Control (AGC) is self-adjusting.
Automatic Gain Control (AGC) is-active and self-adjusting. This is part of normal operation.
This status appears on the booster to indicate AGC due to inadequate isolation between the outside
and inside antennas.
Additional separation is recommended between the antennas to optimize performance (vertical
separation works best).
Ensure that the antennas are aimed away from one another.
Indicates that the booster has detected oscillation caused by over-signal or interference. If this
happens, try to further isolate the antennas. Consider the following options to resolve the condition:
1. Try increasing vertical distance between the outside and inside antennas.
2. Check for sources of interference such as, cellular modems or hotspots.
3. Avoid placing either antenna near windows.
If condition continues, lower the dB gain setting in small increments until the LED status resolves.
© 2020. All Rights Reserved

If you Want to Improve Coverage

1. Find a location that receives a stronger signal and relocate the outside antenna to that location.
2. Optimize the Yagi antenna angle.
3. Increase the distance between the outside and inside antenna.
4. Set each dial on the booster to maximum gain.

Troubleshooting

Problem Resolution
Signal booster has no power Connect the power supply to an alternate power source.
Verify that the power source is not controlled by a switch that has removed power from the outlet.
If the POWER LED on the signal booster remains OFF, contact tech support at: 1-888-365-6283
or support@surecall.com
After completing installation, (1) Verify that all cable connections are tightly fitted. (2) Try further separating the booster and
indoor signal coverage has not antenna. (3) Verify that there is usable signal where the outside antenna is placed.
improved
 Remember: Bars are not always a reliable measure of signal. The best way to confirm signal
coverage is the ability to place and hold a call.

Specifications

FusionPro
Uplink Frequency Range (MHz): 698-716 / 776-787 / 824-849 / 1850-1915 / 1710-1755
Downlink Frequency Range (MHz): 728-746 / 746-757 / 869-894 / 1930-1995 / 2110-2155
Supported Standards: CDMA, WCDMA, GSM, EDGE, HSPA+, EVDO, LTE and all cellular standards
Input Impedance: 50Ω server / 50Ω donor port
Maximum Gain: 72 dB
Noise Figure: 8 dB
VSWR: ≤2.0
AC Input: Input AC110V, 60 Hz; Output DC 5-15V
Maximum Output Power: 1 Watt EIRP
Cable: SC-400 / SC-240
RF Connectors: N Female donor / N Female server
Power Consumption: <15W
Operation Temperature: -4º to +158º F
Certifications: FCC ID: RSNF4HOME3
Have questions?
We have answers! Reach out to our US-based support team:
Call: 1-888-365-6283
Email: support@surecall.com
Visit: www.surecall.com/support to download the user manual for:
» Detailed setup instructions » Troubleshooting tips

3-Year Warranty
