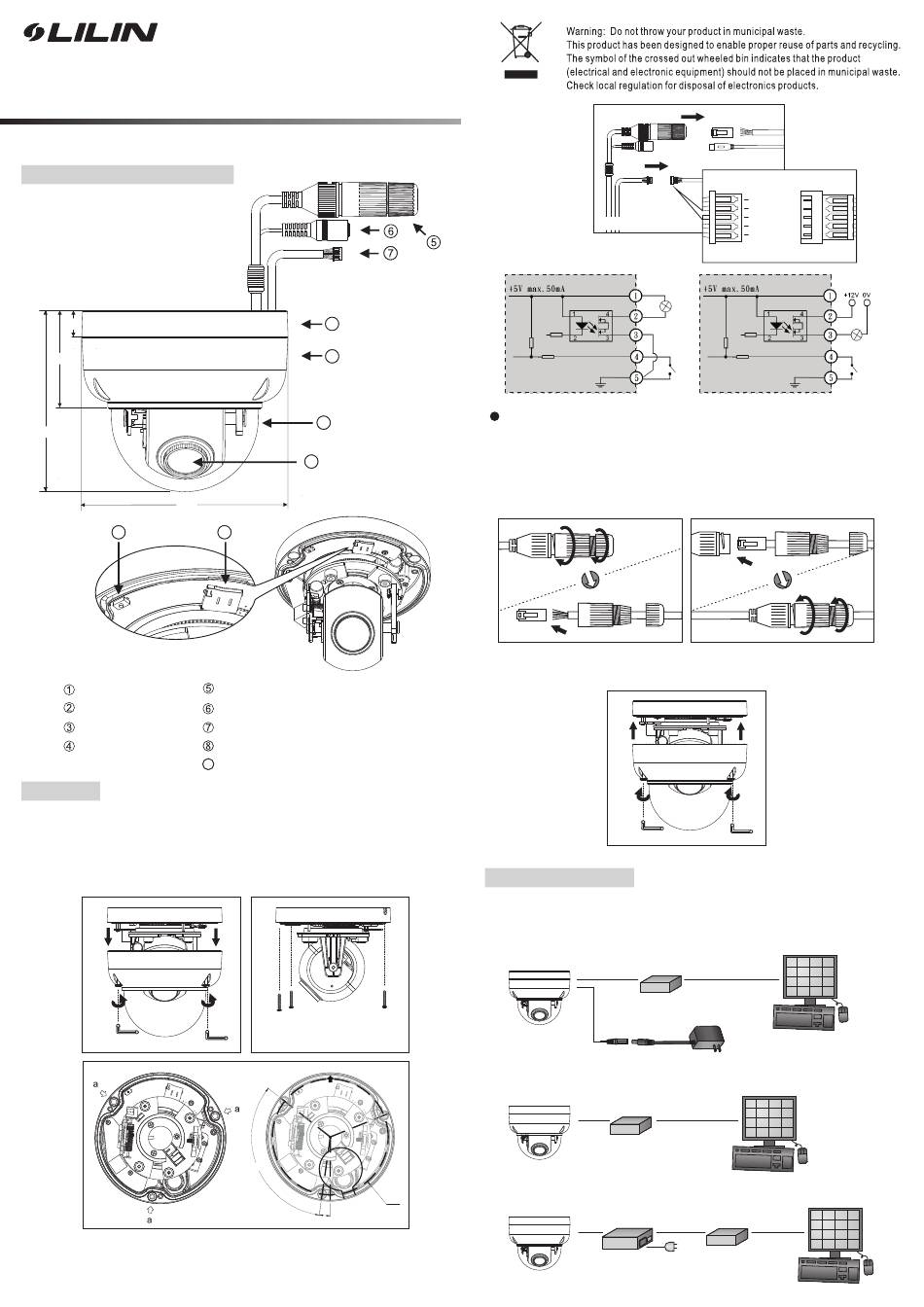

Lilin PZD6422CSE-2 Instruction Manual

D/N 2MP HD PTZ DOME IP
CAMERA
Part Description & Dimensions
16
57
106
120
2 9
Unit: mm
Bottom bracket
Upper cover
Transparent cover
Lens
Installation
1. Retrieve the camera and remove the bottom bracket from the
upper cover with a hex key (FIG.1).
Use the included screws (M4.0x25) through the holes marked as
"a," and fix the camera in the desired location (FIG.2 & FIG.3).
NOTE : The line group direction in the back.
FIG. 1
FIG. 3
3. Attach the Ethernet and power cables and Alarm in/out jack
connector to the RJ-45 connector and the DC-in connector and
Alarm in/out connector, respectively (FIG.4).
Instruction Manual
2 1
2 2
2 3
2 4
2 8
RJ-45 Ethernet connector (supports PoE)
Power jack (DC12V ±10%)
Alarm In/Out connector
Micro SD card slot
Factory default button
2 9
FIG. 2
Front
120°
8°
66-PZD6422CSE-2
Connect the RJ-45 Ethernet cable with a waterproof connector
First, remove the waterproof connector and unscrew the
waterproof nut. Insert the Ethernet cable and connect to the
RJ-45 connector with proper tools (FIG.5). Then, tighten the
waterproof connector and nut before the RJ-45 connector is
connected to the camera (FIG.6).
FIG. 5
4. Secure the upper cover to the bottom bracket with a hex key
(FIG.7).
System Architectures
For connecting D/N HD IP Camera series to the network, please follow one of the
system architectures:
(1). Use DC12V power adaptor and network switch connected to a network.
HD IP CAMERA
(2). Use with PoE of the network switch connected to the network.
HD IP CAMERA
(3). Use PoE power injector and the network switch connected to the network.
φ108
HD IP CAMERA
Network Cable
DC Power Input
Alarm In/Out
Connector +5V
N.O.
COM
FIG. 4
Alarm IN
GND
FIG. 6
FIG. 7
LAN LAN / Internet
Non-PoE Switch
DC12V Adaptor
LAN LAN / Internet
PoE Switch
PC
LAN LAN LAN / Internet
AC
Non-PoE Switch
PoE Power Injector
RED
WHT
GRN
ORG
BLK
SIREN
PC
PC
