ASSEMBLY INSTRUCTIONS
ITEM# L-GZ428PST

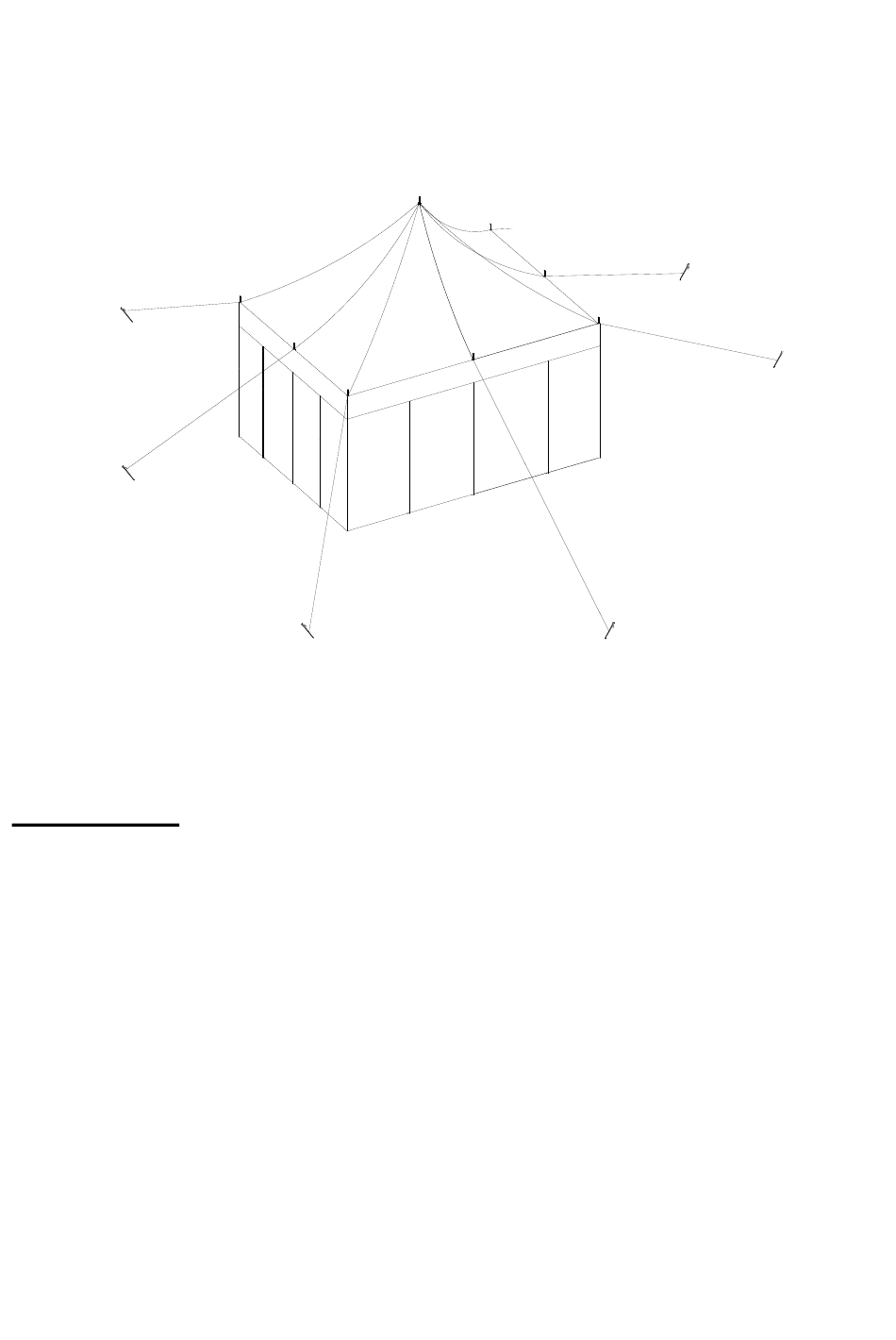

20' x 20' PARTY PAVILION
Our clear, easy-to-follow, step-by-step instructions will guide you through the project from start to finish. The
final product will be a quality piece that will go together smoothly and give years of enjoyment.
WARNINGS:
1. Assembly Instructions must be followed.
2. Carefully consider the possibility of falling rocks or tree limbs, lightning strikes, flash floods, avalanches,
strong winds, and other objective hazards to reduce the risk of injury to the occupants, or damage to the
canopy.
3. Anchor your canopy properly at all times to reduce the risk of injury to the occupants, or damage to the tent.
This includes staking out all guy lines, and securing the canopy top to the center pole by staking down and
adjusting the center peak rope.
WARNING: KEEP ALL FLAME AND HEAT SOURCES AWAY FROM THIS TENT FABRIC.
This tent meets the flammability requirements of CPAI-84. The fabric may burn if left in continuous contact with
any flame source. The application of any foreign substance to the tent fabric may render the flame-resistant
properties ineffective.
Tools required: hammer (not included)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L-GZ428PST and is the answer not in the manual?

Questions and answers

Summary of Contents for Sunjoy L-GZ428PST

  • Page 1 ASSEMBLY INSTRUCTIONS ITEM# L-GZ428PST 20’ x 20’ PARTY PAVILION Our clear, easy-to-follow, step-by-step instructions will guide you through the project from start to finish. The final product will be a quality piece that will go together smoothly and give years of enjoyment.
  • Page 2 Parts List: Parts Image Tow-piece Pole Four-piece Center Pole Base Plate Canopy 15” stake 9” stake Assembly Instructions: Remove canopy from the bag, unroll it and lay it out flat on level ground. Step 1: Assemble the ten two-piece corner and side poles, connect the two four-piece center poles and base plates as Fig.1.
  • Page 3 Stake Canopy Here 4' 4' Stake Canopy Here 4' 4' 4' 4' 4' 4' 4' 4' 4' 4' Canopy Rolled Out Step 2: Starting at one of the canopy corners, measure out approximately 4 ft. at a right angle and drive a 15” stake into the ground at a 45-degrees (as Fig.2) with the hook portion of the stake facing away from the canopy...
  • Page 4 Ground Ground Ladder Lock Adjuster Stake(Shown with Web Strap) Step 4: Go to the bottom of the stake-out webbing, which should be looped over the hook part of the stake, and adjust the tension of the stake by pulling the free end of the stake-out webbing (as Fig.5).
  • Page 5 Mesh Mesh Erected Canopy Center Pole Base Plates Guy Line Tensioner Step 6: Re-enter the canopy through one of the zippered doors. Place the tip of the four-piece center poles through the grommet in the top of the canopy and push the pole upward to an erect position Fig.7).
