10x12 Woven Post Gazebo
Model: L-GZ1033PST
SKU: 2721825

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L-GZ1033PST and is the answer not in the manual?

Questions and answers

Summary of Contents for Sunjoy L-GZ1033PST

  • Page 1 Assembly Instructions 10x12 Woven Post Gazebo Model: L-GZ1033PST SKU: 2721825...

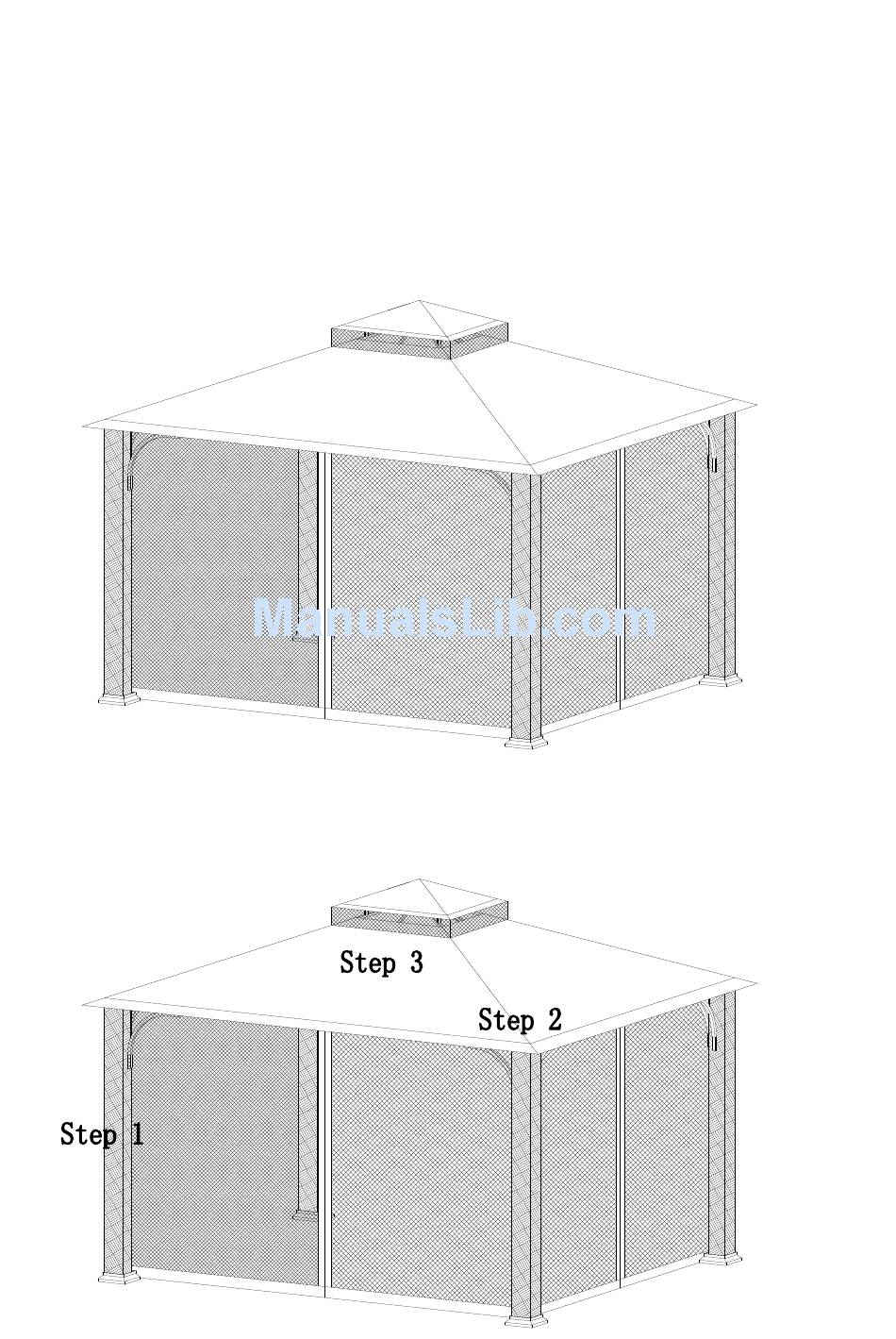

  • Page 2 Congratulations on your purchase of our SUNJOY 10x12 Woven Post Gazebo. Our clear, easy to follow, step-by-step instructions will guide you through the assembly process from start to finish. IMPORTANT: 1. When installing and assembling your gazebo, it is recommended that two or more adults are involved.
  • Page 3: Parts List

    Parts List Post Long left beam Long right beam Short left beam Short right beam Beam up connector Beam down connector Decorative ferrule Arch support Long netting pipe Short netting pipe Oblique beam down side connector Middle beam down side connector Oblique beam Oblique beam...
  • Page 4 Small top connector Stake cover Stake plate Hook Small canopy Big canopy Netting Hardware Pack 1 16 PCS M6*15 Flat bolt 128 PCS M6 Washer 48 PCS M6*25 Hex bolt 16 PCS M6*70 Hex bolt 16 PCS M6 Nut 32 PCS M6*40 Hex bolt 1 PCS M6 Wrench...
  • Page 5 sert the Stake cover (R) into the post (A) from bottom, then use bolt (AA) and washer Fig.1: In (BB) to fasten it with post. Use bolt (CC) and washer (BB) to fasten the oblique beam down connector (I) on the Fig.2: post (A).
  • Page 6 Use bolt (CC) and washer (BB) to fasten the assembled beam (B1, B2, C1, C2) on the up Fig.4: side of post (A). :Use bolt (CC) and washer (BB) to fasten the middle beam down connector (J) with Fig.5-1 long netting pipe (H, G) on the beam. 2: Use bolt (CC) and washer (BB) to fasten the long/short netting pipe (H, G) on the Fig.5- Beam (B1, B2, C1, C2)
  • Page 7 Attach the oblique beam (K) with down pipe (L) as pic. shows. Fig.8: Insert the up side of assembled oblique beam (K) into the tube of big top connector (O). Fig.9: Use bolt (GG), washer (BB) and nut (EE) to fasten the down side pipe (L) on the oblique Fig.10:...
  • Page 8 Your 10x12 woven post gazebo is now ready for use. Please do not return this product to the store. For technical assistance on assembly or replacement parts call Sunjoy Industries at 1(866) 578-6569 from 8:00 AM to 8:00 PM EST or Email menards@sunjoygroup.com...
