- Page 1 10'x10' Pergola with Solid Slats Lars Style# L-PG169PST-B2 DPCI# 009050552 Production No.: XXXXXXXX Assembly Instructions...
- Page 2 Safety Information 1. Two people are required for this assembly. 2. Some parts may contain sharp edges. Wear protective gloves. 3. When assembling and using this product, basic safety precautions should always be followed to reduce the risk of personal injury and damage to equipment.
- Page 3 Parts List P11141C01108 Post 1 P11142C01108 Post 2 P11571A01108 Base Cover P11683A01108 Base P11066A01108 Cross Beam 1 P11065A01194 Cross Beam 2 P11060E01194 Cross Beam 3 P13014C01194 Top Small Beam 1 P13015C01194 Top Small Beam 2 P12601A01108 Hook Assembly Instructions...
- Page 4 Hardware Pack H02020C11 M6X20 Bolt 32 PCS H19001C11 M6 Washer 32PCS H13001C11 M6 Spring Washer 2 PCS H02020D11 M8X20 Bolt 48 PCS H19001D11 M8 Washer 48 PCS H13001D11 M8 Spring Washer 48 PCS Stake ￠8*180 P12401A0100 8 PCS H0001C12 M6 Wrench 1 PC H0001D12 M8 Wrench...

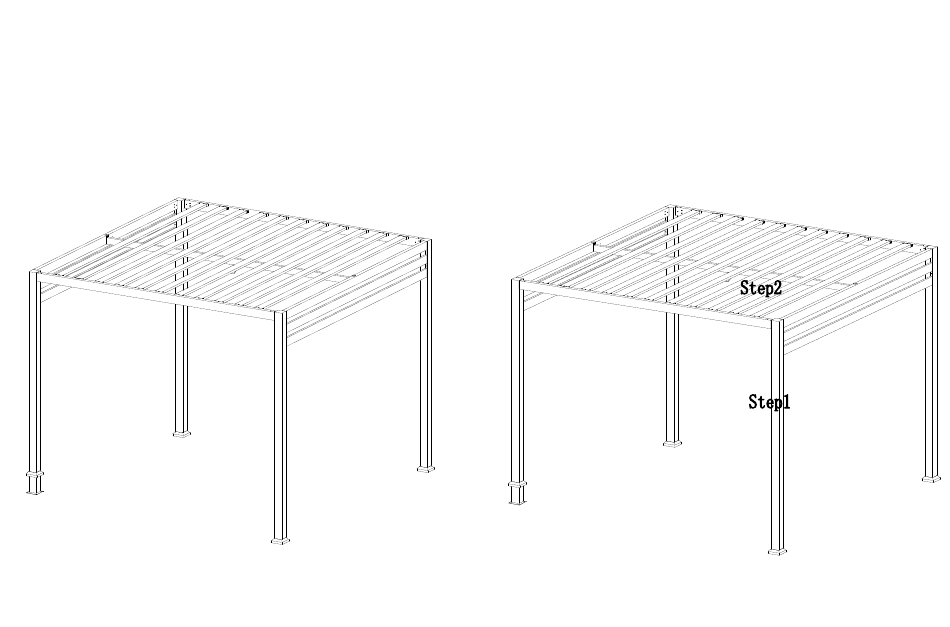

- Page 5 Assembly Instructions...
- Page 6 Fig.3: Attached Cross Beam 1 (E) Fig.1: Insert Base Cover (C) Fig.2: Attached the Cross Beam to Post (B) by Bolt (DD), Spring into Post (A, B), then fix Base 2(F1) to Post (B) by Bolt (DD), Washer (FF) and Washer (EE). (D) to Post (A, B) by Bolt (AA) Spring Washer (FF) and Washer Then...
- Page 7 Assembly Instructions...
- Page 8 Fig.6: Put The Top Small Beam Fig.5: Attached the Top Small Fig.4: Attached the Hook (I) to Beam 2 (H) to Cross Beam 1(G)’s end into the U-shaped on Top Small Beam 2 (H) 2(F1) by Bolt (AA), Spring the side of Cross Beam 1(E) (Big Washer (CC) and Washer hole need put upper and small...
