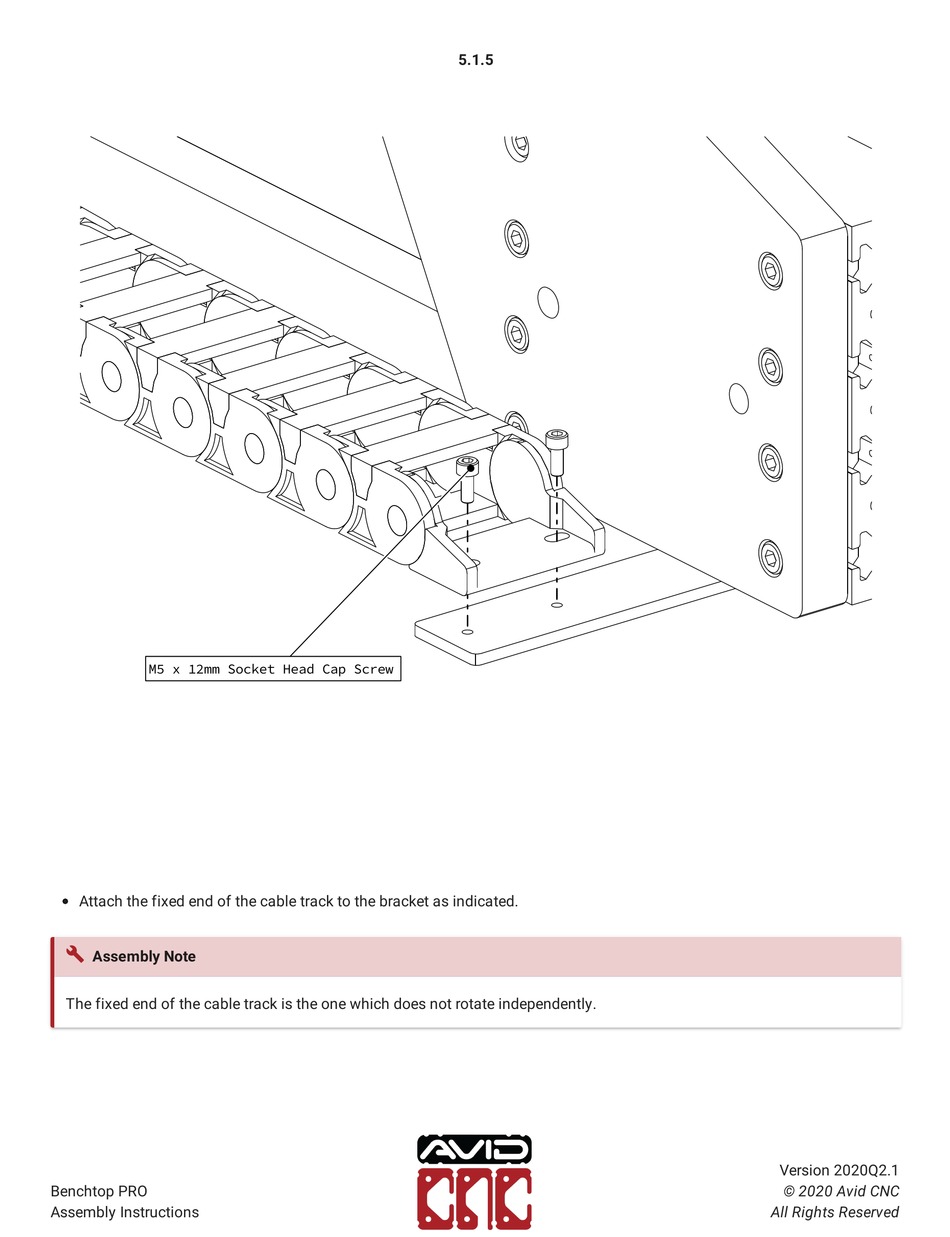

M5 x 12mm Socket Head Cap Screw
Attach the fixed end of the cable track to the bracket as indicated.
Assembly Note
The fixed end of the cable track is the one which does not rotate independently.
Benchtop PRO
Assembly Instructions
5.1.5
Version 2020Q2.1
© 2020 Avid CNC
All Rights Reserved
