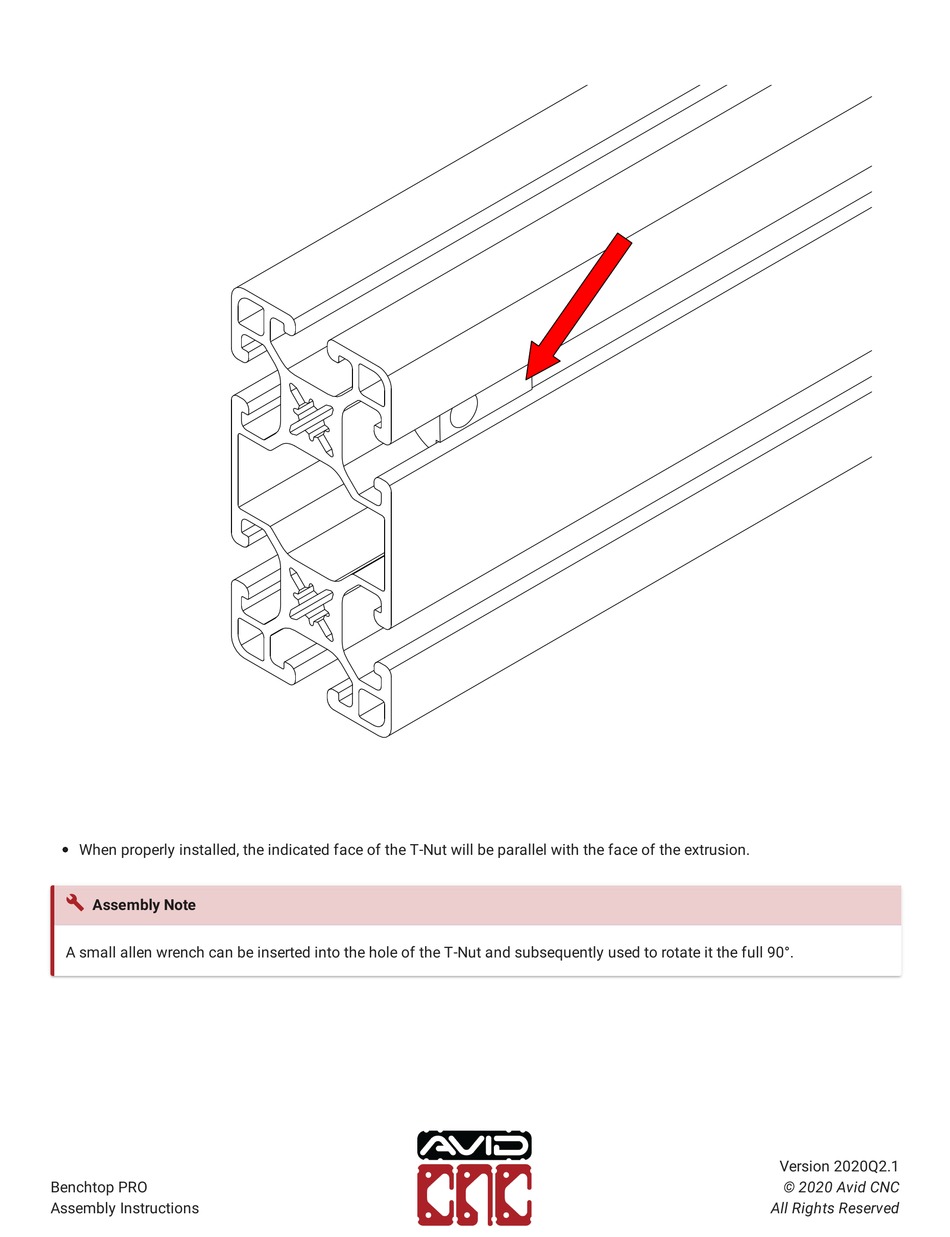

When properly installed, the indicated face of the T-Nut will be parallel with the face of the extrusion.
Assembly Note
A small allen wrench can be inserted into the hole of the T-Nut and subsequently used to rotate it the full 90°.
Benchtop PRO
Assembly Instructions
Version 2020Q2.1
© 2020 Avid CNC
All Rights Reserved
