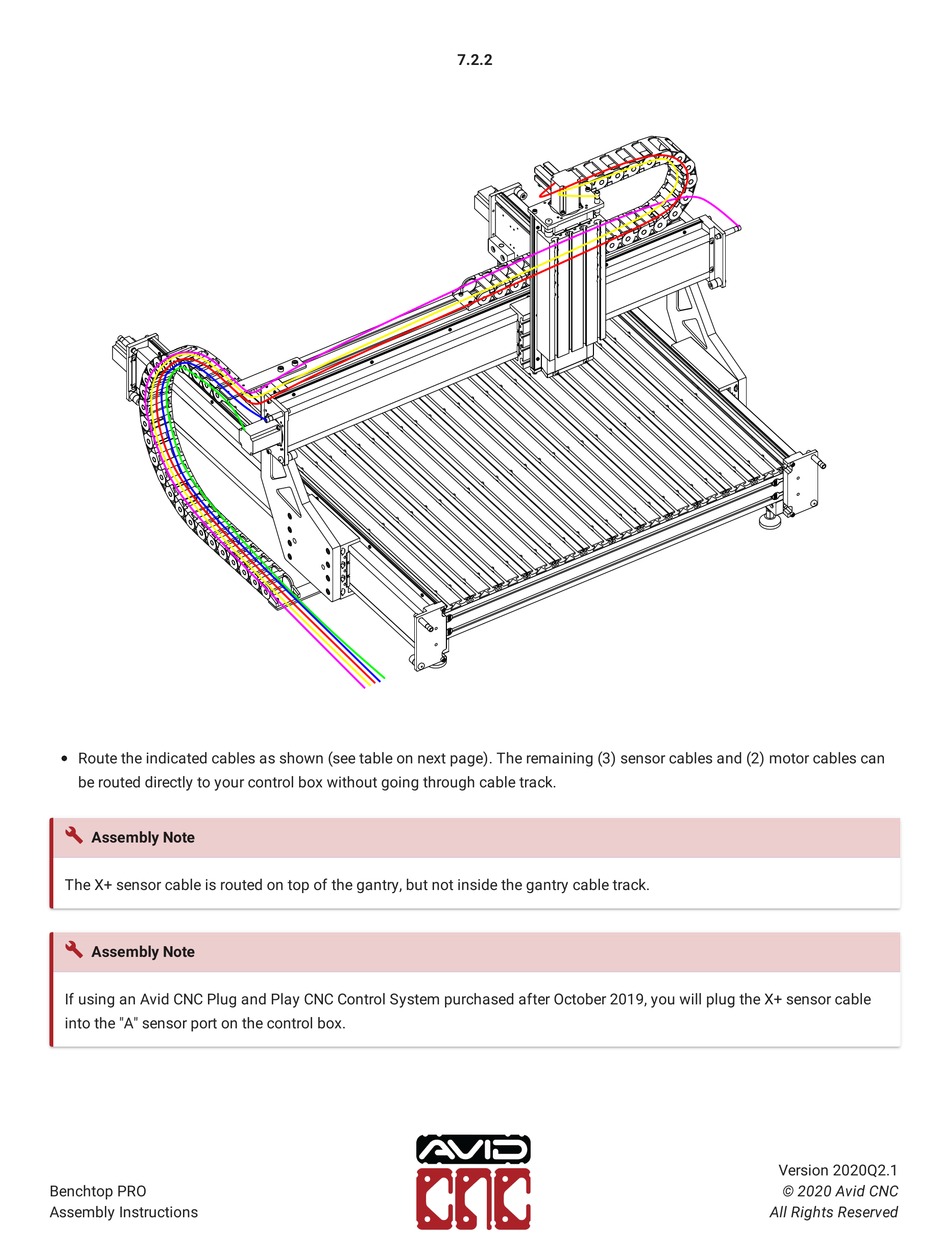

Route the indicated cables as shown (see table on next page). The remaining (3) sensor cables and (2) motor cables can
be routed directly to your control box without going through cable track.
Assembly Note
The X+ sensor cable is routed on top of the gantry, but not inside the gantry cable track.
Assembly Note
If using an Avid CNC Plug and Play CNC Control System purchased after October 2019, you will plug the X+ sensor cable
into the "A" sensor port on the control box.
Benchtop PRO
Assembly Instructions
7.2.2
Version 2020Q2.1
© 2020 Avid CNC
All Rights Reserved
