1.2 Leveling Feet Assembly

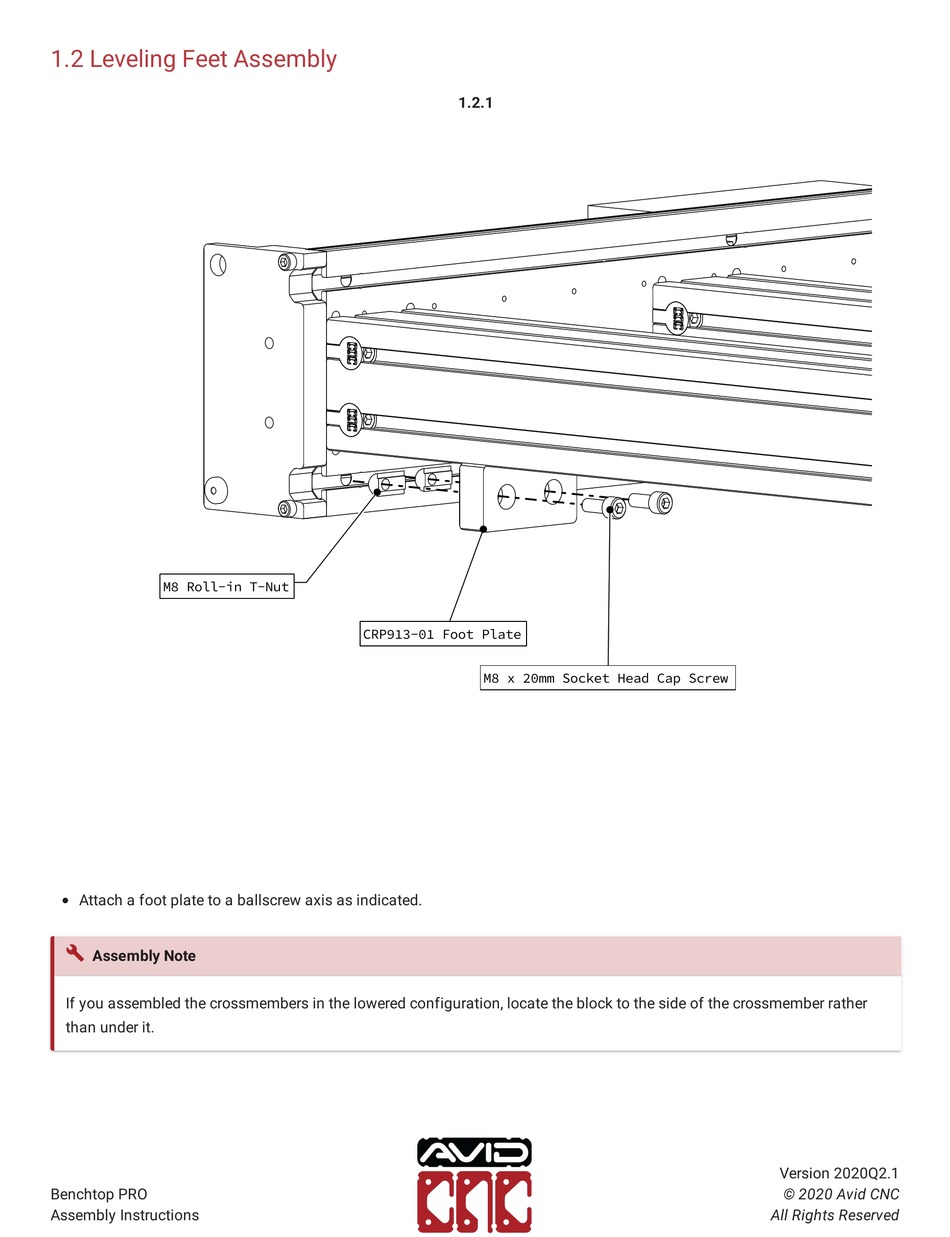

M8 Roll-in T-Nut
Attach a foot plate to a ballscrew axis as indicated.
Assembly Note
If you assembled the crossmembers in the lowered configuration, locate the block to the side of the crossmember rather
than under it.
Benchtop PRO
Assembly Instructions
1.2.1
CRP913-01 Foot Plate
M8 x 20mm Socket Head Cap Screw
Version 2020Q2.1
© 2020 Avid CNC
All Rights Reserved
