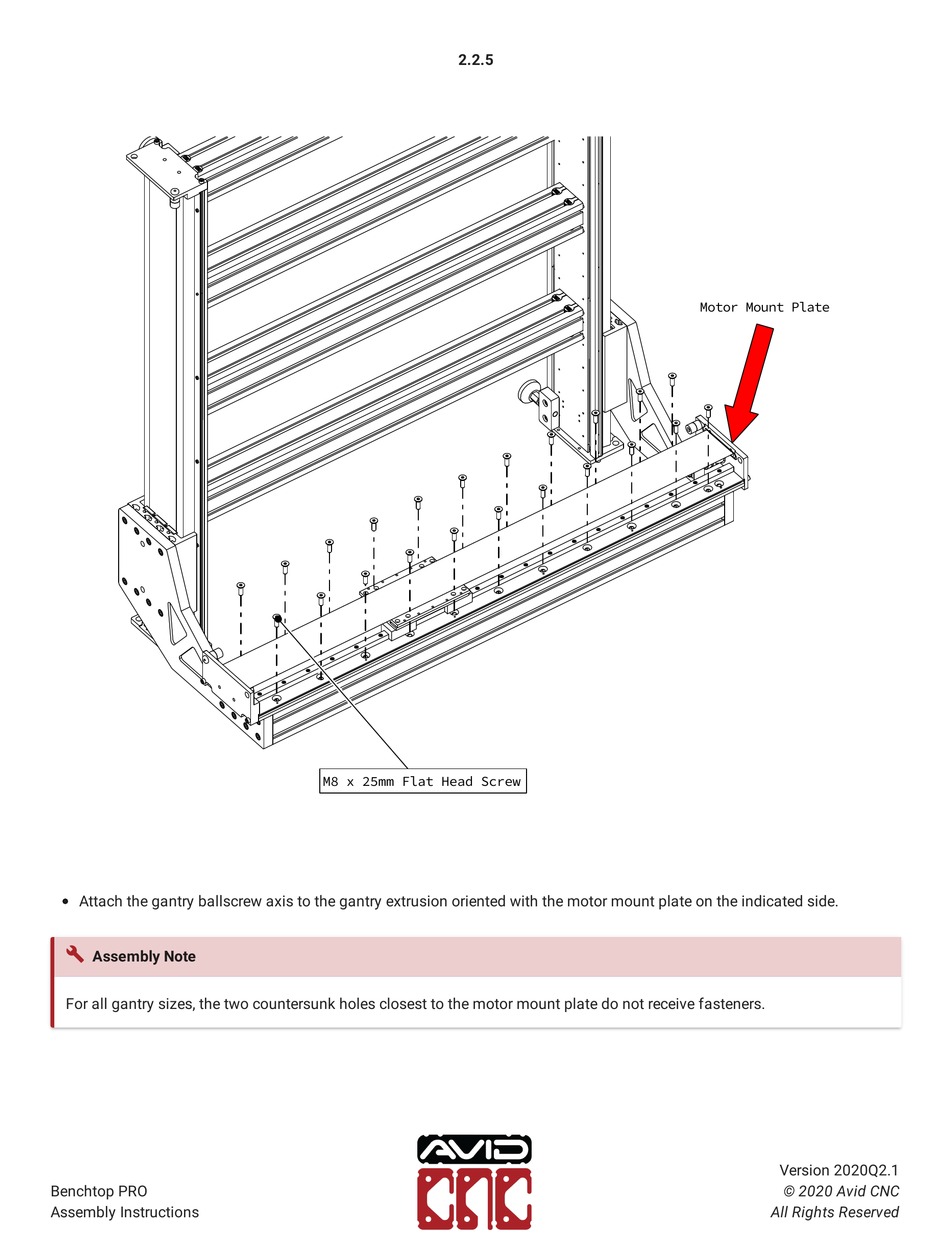

Attach the gantry ballscrew axis to the gantry extrusion oriented with the motor mount plate on the indicated side.
Assembly Note
For all gantry sizes, the two countersunk holes closest to the motor mount plate do not receive fasteners.
Benchtop PRO
Assembly Instructions
2.2.5
M8 x 25mm Flat Head Screw
Motor Mount Plate
Version 2020Q2.1
© 2020 Avid CNC
All Rights Reserved
