Vsh117-G & H - Danfoss VSH088 Application Manuallines

Variable speed scroll compressors, 50-60 hz - r410a
Table of Contents

Advertisement

Application guidelines
VSH117-G & H
14
FRCC.PC.014.A4.22

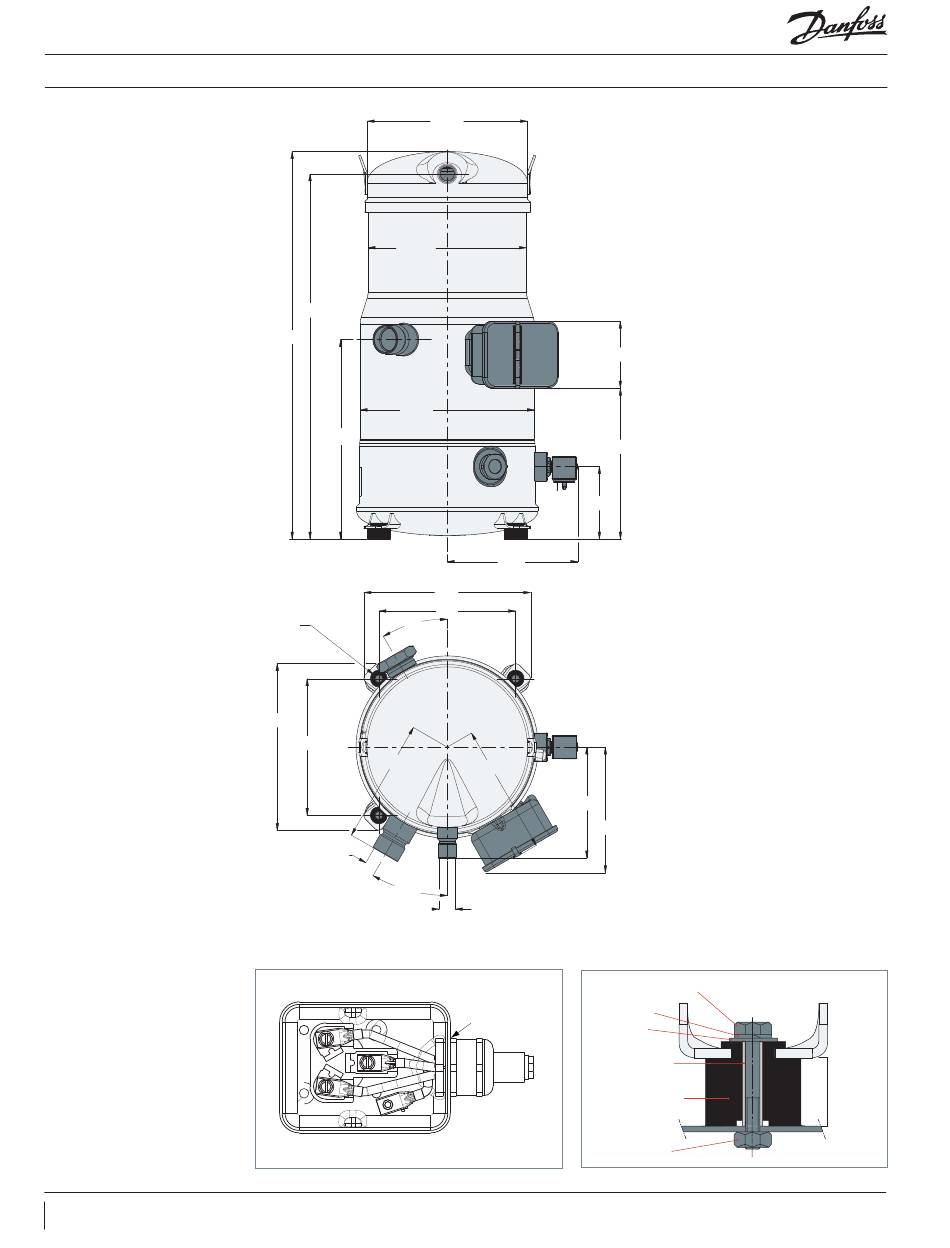

Dimensions
Ø8.82
Ø8.69
20.04
21.26
Ø 9.57
10.94
30°
4 x hole
Ø 0.75
9.13
7.52
6.81
Ø 1.38
30°
Electrical box
3.66
8.28
3.99
7.16
9.13
7.52
7.11
6.06
6.89
Ø 0.87
Grommet
Lock washer
Ø 1.30 inch hole
Flat washer
Steel mounting
sleeve
Rubber grommet
All dimensions in inch
HM 8 bolt
Nut
0.59 inch
