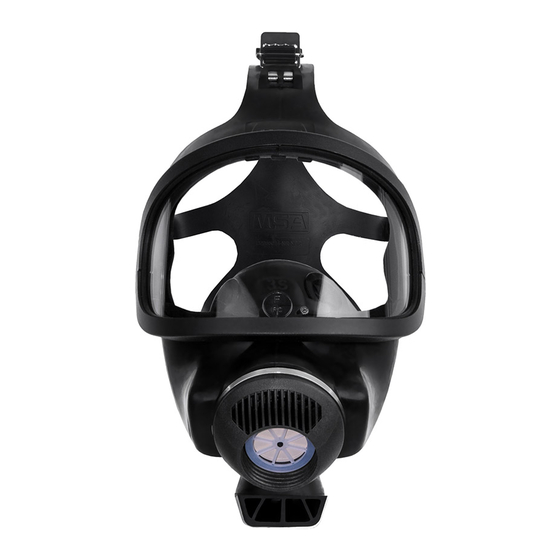

MSA 3S Operating Manual
Full face mask – negative pressure
Hide thumbs
Also See for 3S:
- Operating manual (20 pages) ,
- Quick start manual (38 pages) ,
- Quick start manual (38 pages)
Subscribe to Our Youtube Channel
Related Manuals for MSA 3S
Summary of Contents for MSA 3S
- Page 1 Operating Manual 3S Full Face Mask – Negative Pressure Order No.: 10089056/02 MSAsafety.com...
- Page 2 MSA Europe GmbH Schlüsselstrasse 12 8645 Rapperswil-Jona Switzerland info.ch@MSAsafety.com www.MSAsafety.com © MSA 2018 All rights reserved...
-
Page 3: Table Of Contents
Replacement Parts ........17 3S Full Face Mask – Negative Pressure... -
Page 4: Safety Regulations
Safety Regulations Correct Use Series 3S Full Face Mask with standard thread connection according to EN 148-1 are not complete respiratory protective devices by themselves, but serve as facepieces [EN 136 CL3+] for use with respiratory filters, compressed air breathing apparatus, fresh air hose breathing apparatus and compressed air line breathing apparatus. -
Page 5: Description
The exhalation air passes through the exhalation valve directly to the ambient air. Fig. 1 Overview full face mask Face blank Connector with inhalation valve Head strap Exhalation valve Buckle Carrying strap Lens 3S Full Face Mask – Negative Pressure... -
Page 6: Mask Versions
Part Number Marking [date code, serial number] CE-marking with notified body number [DEKRA EXAM, Zertifizierungsstelle Dinnendahlstr. 9, 44809 Bochum] X: ATEX classification A, B or C according to the Lens typ. EN standard, class 3S Full Face Mask – Negative Pressure... -
Page 7: Certification
II 1 G IIB T6 -40 °C Ta +60 °C II 1 D Directive 89/686/EC or EN 136 CL3+ Regulation (EU) 2016/425, 0158 respectively DEKRA EXAM GmbH, Dinnendahlstr. 9, 44809 Bochum, Germany, Notified body number: 0158 3S Full Face Mask – Negative Pressure... - Page 8 Directive 89/686/EC or EN 136 CL3+ Regulation (EU) 2016/425, 0158 respectively DEKRA EXAM GmbH, Dinnendahlstr. 9, 44809 Bochum, Germany, Notified body number: 0158 The Declaration of Conformity can be found under the following link: https://MSAsafety.com/DoC 3S Full Face Mask – Negative Pressure...
-
Page 9: Use
The mask could otherwise leak. This danger also exists for instance for mask wearers with beards or deep scars in the sealing area. Donning the Mask WARNING! In order to guarantee a proper fit for those wearing glasses, the 3S Full Face Mask spectacle kit must be worn since ordinary glasses cannot be worn under the mask. -
Page 10: Leak Check
Loosen the head harness, press the buckles forwards using your thumbs. Do not grip the mask by the exhalation valve! Grip the mask by the connector and pull off backwards over your head. 3S Full Face Mask – Negative Pressure... -
Page 11: Cleaning, Disinfection
Disinfect the mask after cleaning. Removed components must be separately cleaned and disin- fected. Dry mask and components and reassemble mask in reverse order. Perform a tightness test [ chapter 5.5]. 3S Full Face Mask – Negative Pressure... -
Page 12: Disinfection By Hand
Always use original parts from MSA. Repairs and maintenance must be carried out only by authorised service centres or by MSA. Changes to devices or components are not permitted and will result in loss of approval. -
Page 13: Maintenance Of The Exhalation Valve
Perform a tightness test [ chapter 5.5]. Tightness Test of the Mask The testing of the masks for tightness is performed using an applicable MSA test device in accordance with the relevant operating manual. Fit mask tight onto the test instrument. -
Page 14: Visual Test And Function Test
For the safekeeping of the mask the mask container should be used. This also applies to masks with installed filters, except CO and NO filters. MSA rubber products are protected by an anti-aging agent that can become visible as a light coating. This coating is harmless and can be removed during cleaning. -
Page 15: Ordering Information
Head harness Lens Carrying strap Screw for lens ring Threaded ring Buckle with hook Slide ring Speech diaphragm Exhalation valve housing Threaded ring Exhalation valve disc Buckle with hook and D-ring Protective housing 3S Full Face Mask – Negative Pressure... -
Page 16: Full Face Mask
Special tool [for replacing exhalation valve and speech diaphragm] D2055038 Cover lens, adhesive [package of 10] D2055706 Exhalation valve closure D5135047 Mask hanger [package of 4] D2055753 Mask tightness test kit [for more MSA testing instruments refer to D6063705 www.MSAsafety.com] 3S Full Face Mask – Negative Pressure... -
Page 17: Replacement Parts
Threaded ring D5135041-SP Head harness [rubber] [package of 10] 10102911 Head harness [silicone] D2055219-SP Buckle with hook [package of 10] 10096406 Buckle with hook and D-ring [package of 10] 10096408 Carrying strap, assembly D2055707-SP 3S Full Face Mask – Negative Pressure... - Page 18 For local MSA contacts, please visit us at MSAsafety.com Because every life has a purpose...
