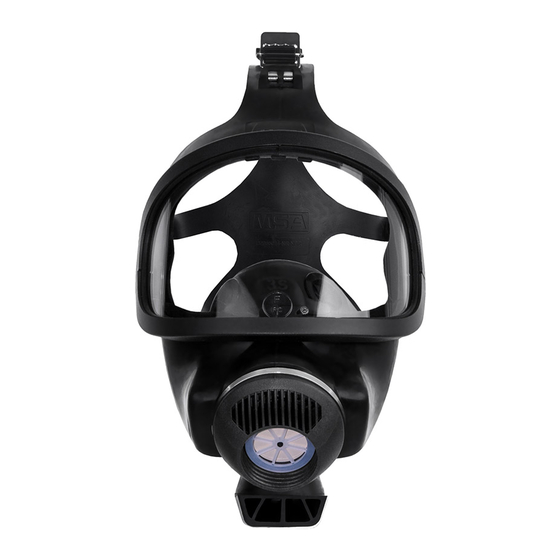

MSA 3S Operating Manual
Full face mask positive pressure
Hide thumbs
Also See for 3S:
- Quick start manual (38 pages) ,
- Quick start manual (38 pages) ,
- Operating manual (18 pages)
Related Manuals for MSA 3S
Summary of Contents for MSA 3S

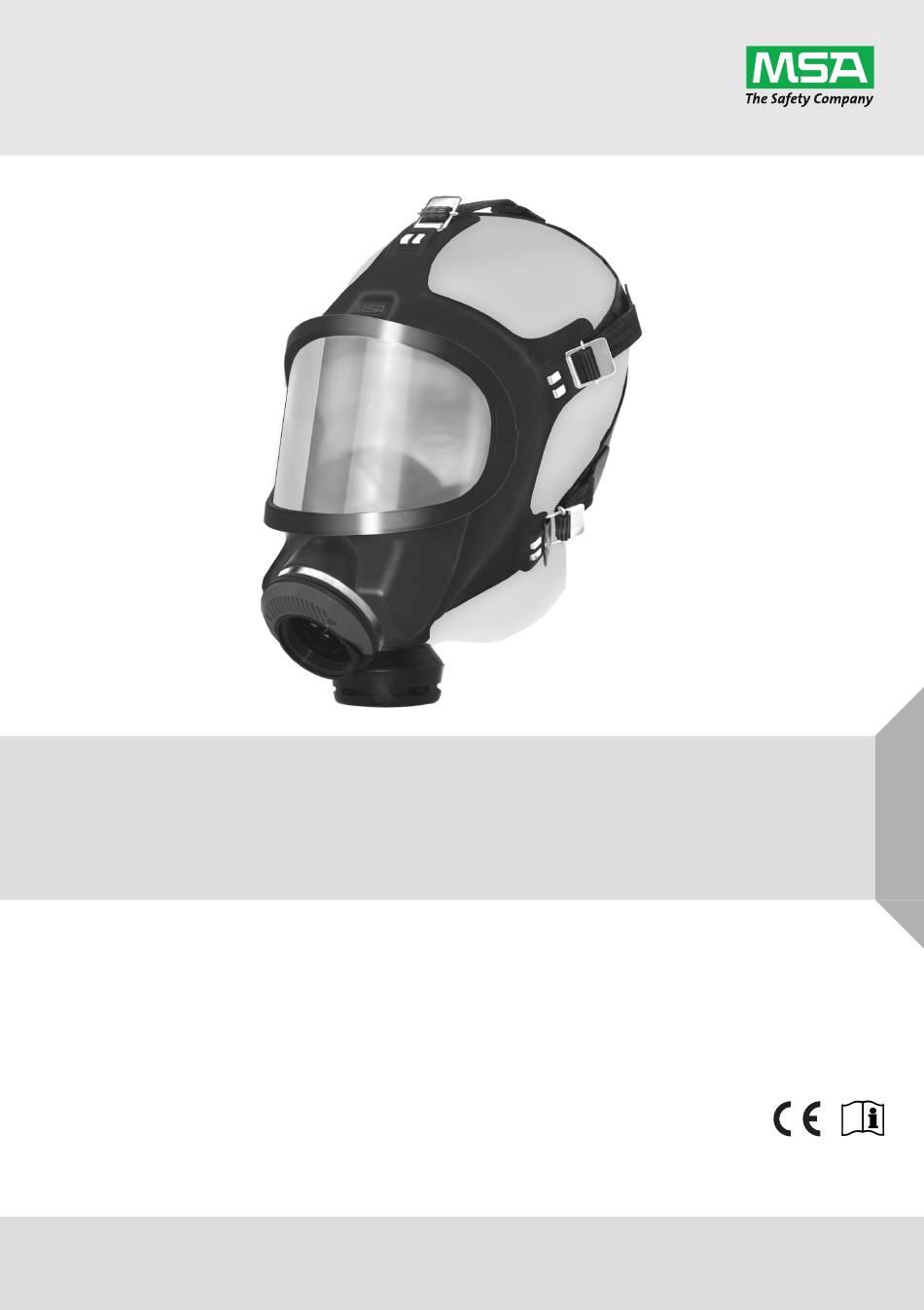

- Page 1 Operating Manual 3S Full Face Mask – Positive Pressure Order No.: 10090494/03 MSAsafety.com...
- Page 2 MSA Europe GmbH Schlüsselstrasse 12 8645 Rapperswil-Jona Switzerland info.ch@MSAsafety.com www.MSAsafety.com © MSA 2018 All rights reserved...
-
Page 3: Table Of Contents
Replacement Parts ........18 3S Full Face Mask – Positive Pressure... -
Page 4: Safety Regulations
Safety Regulations Correct Use Series 3S Full Face Mask with positive pressure connection according to EN 148-3 or special manu- facturer type are not complete respiratory protective devices by themselves, but serve as facepieces [EN 136 CL3+] for use with respiratory filters, compressed air breathing apparatus, fresh air hose breathing apparatus and compressed air line breathing apparatus. -
Page 5: Description
The exhalation air passes through the exhalation valve directly to the ambient air. Fig. 1 Overview full face mask Face blank Industrial harness Head strap Lens Buckle Connector with inhalation valve Rubber harness Exhalation valve 3S Full Face Mask – Positive Pressure... -
Page 6: Mask Versions
3S-PS-V-MaXX (CIS) • as standard version, with polycarbonate lens with silicate coating 3S-PS-V-MaXX small • as standard version, with small size face blank, polycarbonate lens (CIS) with silicate coating 3S Full Face Mask – Positive Pressure... -
Page 7: Marking/Certification
Part Number EAC conformity mark Marking [date code, serial number] CE-marking with notified body number [DEKRA EXAM, Zertifizierungsstelle Icon “Read the Manual” Dinnendahlstr. 9, 44809 Bochum] ATEX certification Mask Version GOST Certification Number 3S Full Face Mask – Positive Pressure... -
Page 8: Certification
II 1 G IIC T6 -40 °C Ta +60 °C II 1 D Directive 89/686/EC or EN 136 CL3+ Regulation (EU) 2016/425, 0158 respectively DEKRA EXAM GmbH, Dinnendahlstr. 9, 44809 Bochum, Germany, Notified body number: 0158 3S Full Face Mask – Positive Pressure... - Page 9 Directive 89/686/EC or EN 136 CL3 Regulation (EU) 2016/425, 0158 respectively DEKRA EXAM GmbH, Dinnendahlstr. 9, 44809 Bochum, Germany, Notified body number: 0158 The Declaration of Conformity can be found under the following link: https://MSAsafety.com/DoC 3S Full Face Mask – Positive Pressure...
-
Page 10: Use
The mask could otherwise leak. This danger also exists for instance for mask wearers with beards or deep scars in the sealing area. Donning the Mask WARNING! In order to guarantee a proper fit for those wearing glasses, the 3S Full Face Mask spectacle kit must be worn since ordinary glasses cannot be worn under the mask. -
Page 11: Leak Check
Loosen the head harness, press the buckles forwards using your thumbs. Do not grip the mask by the exhalation valve! Grip the mask by the connector and pull off backwards over your head. 3S Full Face Mask – Positive Pressure... -
Page 12: Cleaning, Disinfection
Disinfect the mask after cleaning. Removed components must be separately cleaned and disin- fected. Dry mask and components and reassemble mask in reverse order. Perform a tightness test [ chapter 5.5]. 3S Full Face Mask – Positive Pressure... -
Page 13: Disinfection By Hand
Always use original parts from MSA. Repairs and maintenance must be carried out only by authorised service centres or by MSA. Changes to devices or components are not permitted and will result in loss of approval. -
Page 14: Maintenance Intervals
Unscrew the threaded socket from the mask inside with the special tool. Remove the speech diaphragm. Assemble the new speech diaphragm with the gasket towards the connector. Perform a tightness test [ chapter 5.5]. 3S Full Face Mask – Positive Pressure... -
Page 15: Tightness Test Of The Mask
For the safekeeping of the mask the mask container should be used. This also applies to masks with installed filters, except CO and NO filters. MSA rubber products are protected by an anti-aging agent that can become visible as a light coating. This coating is harmless and can be removed during cleaning. -
Page 16: Ordering Information
Exhalation valve disc Threaded ring Valve spring Buckle with hook and D-ring Valve cap 3S-H-ESA series Valve cover 3S-H-PF and –PS series O-ring for plug-in connector 3S-H-MaXX series only 3S-PS Full Face Mask 3S Full Face Mask – Positive Pressure... -
Page 17: Full Face Mask
D4074895 Mask hanger [package of 4] D2055753 Mask tightness test kit D6063705 [for more MSA testing instruments refer to www.MSAsafety.com] Leak test adapter M45 x 3 D4074847 Leak test adapter [for quick-connect coupling] D4074890 3S Full Face Mask – Positive Pressure... -
Page 18: Replacement Parts
Buckle with hook [package of 10] 10096406 Buckle with hook and D-ring [package of 10] 10096408 Carrying strap, assembly D2055707-SP Adapter plug-in, assembly D2056727 Cover 10096409 Screw for cover [package of 10] D0012475-SP 3S Full Face Mask – Positive Pressure... - Page 19 Replacement Parts for -40°C versions Description Article No. Head harness IH 10153922- SP Nose cup valve disc, silicone [package of 20] 10104309-SP Exhalation valve P-500 A (RUS), assembly: 10031131-SP Exhalation valve cap 10031132-SP 3S Full Face Mask – Positive Pressure...
- Page 20 For local MSA contacts, please visit us at MSAsafety.com Because every life has a purpose...
