Summary of Contents for Kogan KAHCWDAC16A

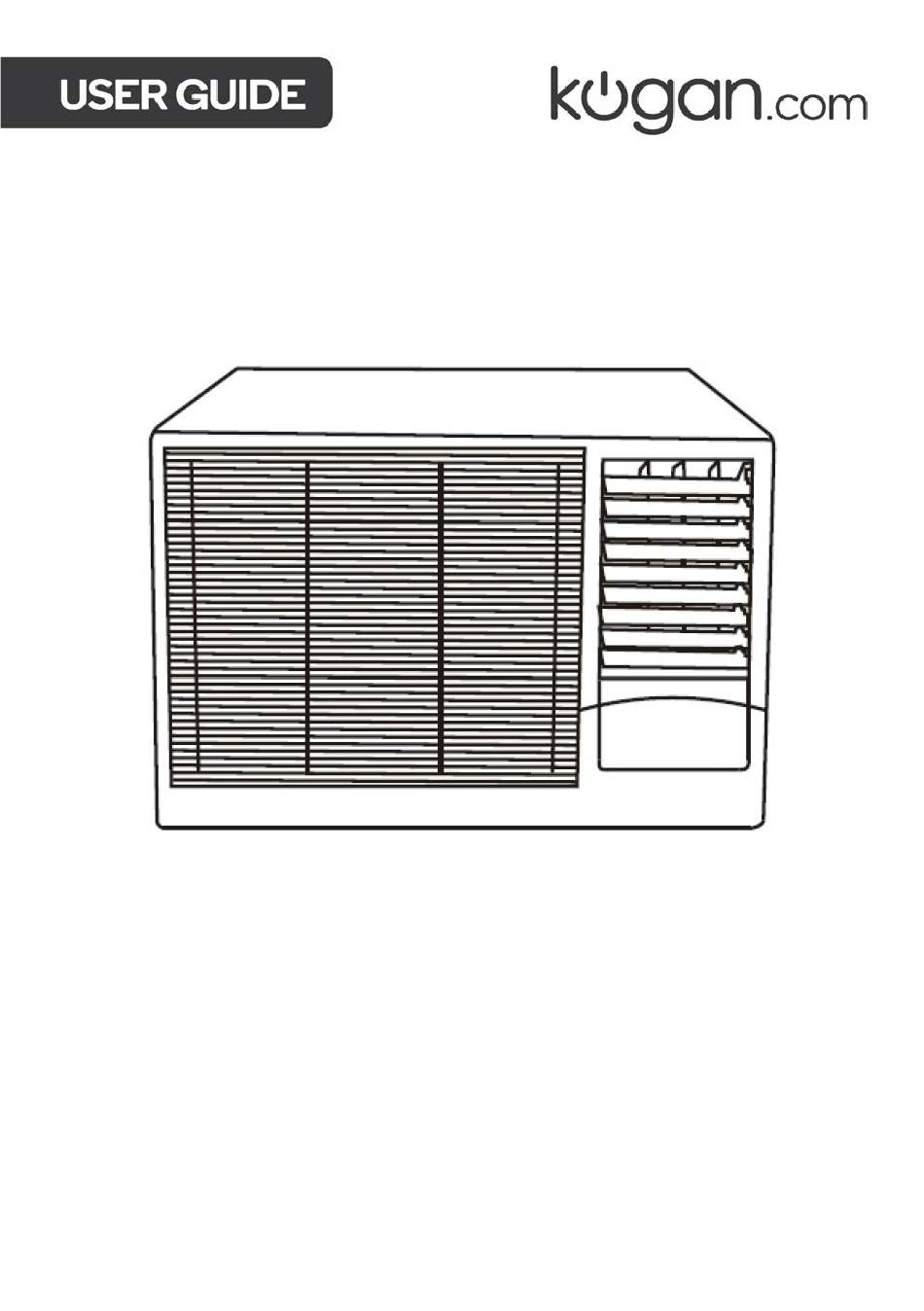

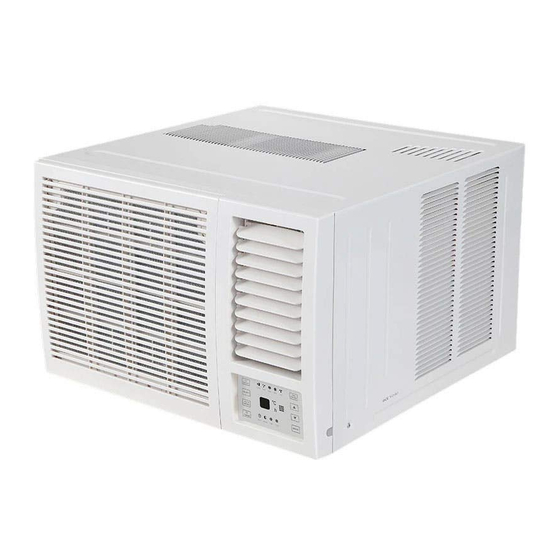

- Page 1 WINDOW WALL AIR CONDITIONER KAHCWDAC16A, KAWDAC26TA & KAWDAC41TA...
-
Page 2: Table Of Contents
Safety & Warnings Overview Installation Operation Cleaning & Care Specifications... -
Page 3: Safety & Warnings
• To ensure safety, always switch off and cut the power supply when the air conditioner is not in use for long time. • If the power cord is damaged, cease use immediately and contact help.Kogan.com for support. • Always switch off and cut the power supply before performing any maintenance or cleaning. - Page 4 Electric Shock Hazard The air conditioner has a serial rating voltage. It must have its own fuse or circuit breaker and no other device or unit should be operated on the fuse or circuit breaker. To avoid the possibility of personal injury, disconnect power to the unit before installing or servicing.
-
Page 5: Overview
OVERVIEW Front Cover Air inlet grille (Indoor) Cabinet Air outlet grille (Indoor) Air inlet grille (Outdoor) Vent Lever Control Panel Air filter Remote Control Control Panel... -
Page 6: Installation
INSTALLATION Location • Select a location that can support the weight of the air conditioner and will not cause increased operation noise or vibration. • Avoid direct sunlight for efficient cooling. • Select a place where there are no obstructions near the air inlet and outlet. Fig. - Page 7 Installation instructions Remove the front panel. (Fig.5) Remove the air filter. (Fig.6) Remove screws at the bottom of the front panel. (Fig.7) Open the panel cover. Remove the screws in the chassis-fixing board and cabinet. Some models have two more screws on the back of the cabinet. (Fig.8) Fig.
- Page 8 Install the drain tube connection into the hole provided at the rear of the air conditioner chassis. (Fig.10) (Available for single drainage method: rear drainage only). Bottom drainage: The drain tray is fixed in position using four screws, and the flare nut is used to block the rear drainage hole.
- Page 9 Carefully slide the unit back into the cabinet. (Fig.14) Fig. 14 Reinstall the retaining bracket, front panel, and mounting screws. (Fig. 8, 7, 15) Fig. 15 Reinstall the air filter. (Fig.16) Fig. 16...
-
Page 10: Operation
OPERATION Control panel buttons Button Function Used to adjust airflow direction. • Used to set or cancel timer operation. • When the unit is in operation, you can set the OFF TIMER. When the unit is off, you can set the ON TIMER. Timer setting range is 0 to 24 hours. - Page 11 Control panel The below symbols turn on when the relevant mode is in use. Button Function Timer Cooling Heating Fan only Sleep Display set temperature/display set timer Low fan speed Mid fan speed High fan speed Auto fan speed Compressor running...
- Page 12 Remote control The remote control transmits signals to the system. The unit will confirm the command with a beep. Button Function (TEMP UP) Increase the temperature or time by 1 unit (TEMP DOWN) Decrease the temperature or time by 1 unit ON/OFF To switch the unit ON/OFF To select the fan speed of AUTO/LOW/MID/HIGH...
-
Page 13: Cleaning & Care
CLEANING & CARE Air filter • The air filter should be washed at least once a month. If the air filter remains full of dust, the air flow will decrease, and the cooling capacity will be reduced. • The filter is behind the cover and can be pulled out from the right-hand side. •... - Page 14 Air cleaning filter The air cleaning filter is attached to the air filter. Wash the air cleaning filter as well when washing the air filter. Front cover • The front cover will accumulate dirt and dust. To clean it, wipe it with a soft dry cloth. When it is excessively dirty, wipe it with a soft cloth dampened with warm water or mild soap and then wipe it again thoroughly with a soft dry cloth.
-
Page 15: Specifications
SPECIFICATIONS Rated volts Amps 3.15 ambient temperature for cooling: 18~43°C. ambient temperature for heating: -5~20°C. Climate class rating ambient temperature for cooling: 25~52°C. ambient temperature for heating: -5~20°C. Disposal • Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. •... - Page 16 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
