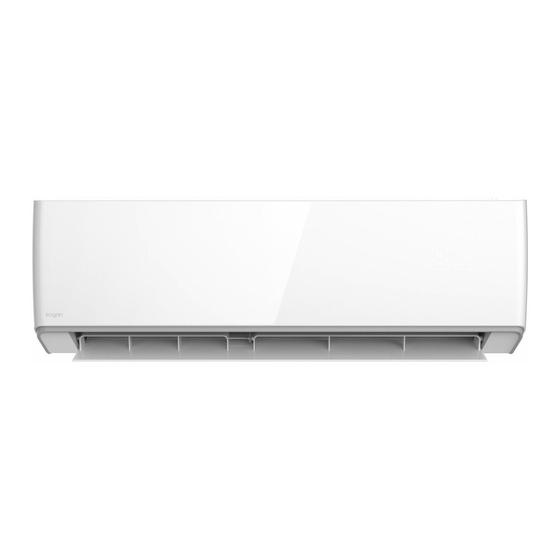

Kogan SMARTERHOME KAWFSAC26UA User Manual

Air purifying split system inverter air conditioner 2.6kw, 5.2kw, 7kw, 8kw
Hide thumbs Also See for SMARTERHOME KAWFSAC26UA:
Table of Contents

Advertisement

Quick Links

KOGAN SMARTERHOME™
AIR PURIFYING SPLIT SYSTEM
INVERTER AIR CONDITIONER
2.6KW, 5.2KW, 7KW, 8KW
KAWFSAC26UA, KAWFSAC52UA, KAWFSAC70UA, KAWFSAC80UA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMARTERHOME KAWFSAC26UA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kogan SMARTERHOME KAWFSAC26UA

Summary of Contents for Kogan SMARTERHOME KAWFSAC26UA

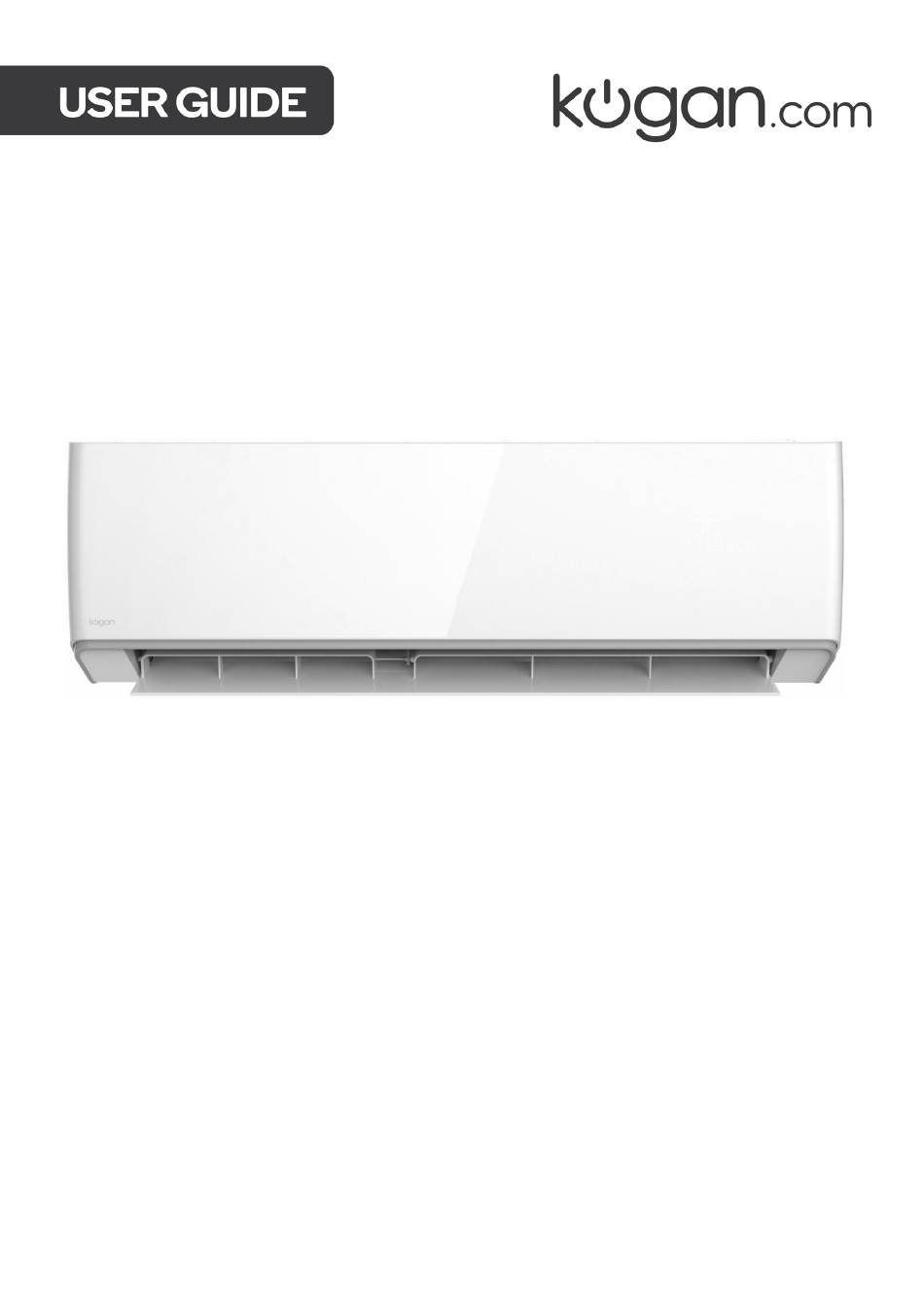

  • Page 1 KOGAN SMARTERHOME™ AIR PURIFYING SPLIT SYSTEM INVERTER AIR CONDITIONER 2.6KW, 5.2KW, 7KW, 8KW KAWFSAC26UA, KAWFSAC52UA, KAWFSAC70UA, KAWFSAC80UA...

  • Page 2: Table Of Contents

    Safety & Warnings Components List Overview Before Installing Indoor Installation Outdoor Installation Before First Use Operation Connect to SmarterHome™ App Google Home Control Amazon Alexa Control Cleaning & Care Scrap & Recovery Troubleshooting Dimensions Specifications Notes...

  • Page 3: Safety & Warnings

    • The refrigerant cannot charge more than 1.7kg. • Do not use any method to accelerate the defrosting process, or to clean, other than those recommended by Kogan.com. • Do not pierce or burn the air conditioner. Check the refrigerant pipeline regularly to ensure it is not damaged.
  • Page 4 • Do not allow water or any other liquid to touch the air conditioner or remote control. Contact with liquids may result in short-circuiting. • If the power cord is damaged, stop use immediately and contact help.Kogan.com for assistance. • Do not cut off the main power when operating.
  • Page 5 • Note the specifications on the fuse printed on the circuit board. WARNING: Immediately stop operation, cut off the power supply, and contact help.Kogan.com in the following situations: • If there are any harsh sounds or unpleasant odours during operation.
  • Page 6 • If refrigerant leakage affects the performance of the air conditioner, stop use immediately. The air conditioner must be vacuumed, then contact help.Kogan.com for assistance. • When using an electric drill to make holes in the wall, first check whether there is a pre-buried pipeline for water, electricity, and gas.
  • Page 7 Air conditioner positioning requirements • Do not install the air conditioner near heat sources or gas leakages, nor in areas with inflammable or explosive gases. • Avoid installing in places subject to strong artificial electric/magnetic fields. • Avoid installing in places subject to noise and resonance. •...
  • Page 8 • Minimum Cross-Sectional Area of Power cable and interconnection cord: Rated Current of Nominal Cross-Sectional Appliance (A) Area (mm²) 3 and < 6 0.75 6 and <10 10 and <16 16 and <25 • The size of the interconnection cord, power cable, fuse, and switch needed is determined by the maximum current of the unit.
  • Page 9 Operating temperatures If the indoor or outdoor units are operating in temperatures beyond the parameters when cooling/heating listed below, this may result in the units to stop working or cause other malfunctions. Ensure the air conditioner is not operating in these conditions. >43°C (Apply to T1) Outdoor unit When cooling...

  • Page 10: Components List

    COMPONENTS LIST • Indoor unit (x1) • Outdoor unit (x1) • Remote control (x1) • Drain pipe (x1) • Insulation tape (x1) • Wall sleeve (x1) • Putty (x1) • AAA batteries (x2) • User guide (x1) OVERVIEW Indoor unit Air inlet Force switch Air inlet grille...
  • Page 11 Outdoor unit Power cable Air outlet grille Connecting pipe Drain hose Air outlet Remote control Note: The remote control will show all symbols on the display when the air conditioner is turned on after which only the symbols relating to the current operation will be left illuminated.
  • Page 12 Increase/decrease buttons • Each press of the increase button increases the set temperature by 1°C. • Each press of the decrease button decreases the set temperature by 1°C. TURBO Under the COOL or HEAT mode, the turbo function quickens the rate the air conditioner reaches the set temperature.
  • Page 13 WIFI/iCLEAN • WIFI – Press this button 8 times consecutively to enter pairing mode with the Kogan SmarterHome™ app. • iCLEAN – This mode allows the air conditioner to clean itself. Whilst the air conditioner is turned off, press this button. The display will show ‘CL’ and the air conditioner will clean dust and dry the evaporator.

  • Page 14: Before Installing

    Check the refrigerant pipeline for any signs of damage. If damaged, do not install, and contact help.Kogan.com for assistance. • Check for refrigerant leakage before opening the package of the outdoor unit. If a leakage is found, do not install, and contact help.Kogan.com for assistance.

  • Page 15: Indoor Installation

    INDOOR INSTALLATION IMPORTANT: Contact an authorised installer to install this air conditioner. Do not attempt to install this yourself. Wall installation of the indoor unit must be secure to prevent any vibrations when the unit is operating and to prevent it from falling and causing injuries and damage. IMPORTANT: •...
  • Page 16 Mounting plate 1. Align the mounting plate with the wall. Using a pencil, mark the location of the holes. Using a drill, secure Phillips head screws (not supplied) into the mounting plate. Using a spirit level, ensure it is perfectly level both horizontally and vertically. 2.
  • Page 17 Interconnection cord (not supplied) 1. Open the panel, then using a screwdriver, remove the screw on the wiring cover. Remove the wiring cover. Panel Screw Wiring cover 2. Thread the interconnection cord through the hole at the back right side of the indoor unit and pull it through the front.
  • Page 18 3. Remove the wire clip, then connect the interconnection cord to the wiring terminal according to the wiring diagram and secure it by tightening the screws. Fix the interconnection cord with the wire clip. Notes: • This diagram is for reference only. If these diagrams look different, refer to the wiring diagram adhered onto the unit.
  • Page 19 Route of the pipeline Depending on the position and length of the indoor unit, the piping may be routed sideways either from the left or right (Fig. 1), or vertically from the back (Fig. 2). If routing sideways, cut off the removable cover on the side of the indoor unit. Connecting Connecting pipe, drain...
  • Page 20 Wrap the piping 1. Use the insulation tape all around the drain hose and other cables to create a seal. Connection pipe, drain hose, and cables Insultation tape 2. Connect the water outlet with the drain pipe and ensure the connection pipe, cables, and drain hose are straight.

  • Page 21: Outdoor Installation

    OUTDOOR INSTALLATION Placement guidelines When choosing the location for the indoor unit, ensure to follow the guidelines illustrated below. Space to obstruction Space to ≥ 50cm obstruction ≥ 10cm ≥ 50cm Space to Space to obstruction obstruction ≥ 30cm ≥ 200cm...
  • Page 22 Connection pipe 1. Remove the stop valve cover. 2. Align the ends of the connection pipe (comprising of the liquid and gas side pipes) with the stop valves. Connect by tightening the taper nut with your hands. Use a torque wrench to tighten until secure. Hold the connection with a spanner to prevent damage while tightening.
  • Page 23 Wiring 1. Using a screwdriver, loosen the screws and remove the access panels from the unit. Access panels 2. Connect the cables respectively to the corresponding terminals on the terminal board of the outdoor unit (see appropriate wiring diagram). If there are signals connected to the plug, conduct the butt joint.
  • Page 24 For model KAWFSAC80UA Note: This diagram is for reference only. If these diagrams look different, refer to the wiring diagram adhered onto the unit. 3. Ground wire: Remove the grounding screw out from the electric bracket, cover the grounding wire end onto the grounding screw, and screw it into the grounding hole. 4.
  • Page 25 4. After applying the vacuum, fully open the stop valve with an Allen key (not supplied). 5. Check that both indoor and outdoor connections are free of air leakage. Pressure gauge Compound pressure gauge Manifold valve Low handle High handle Charge hose Charge hose Stop valve...
  • Page 26 Checks after installation and before first use • Ensure the supply voltage is as required (220–240V). • Check for any faulty or missing connections in each of the power, signal, and grounding wires. • Check the grounding wire of the air conditioner is securely grounded. •...

  • Page 27: Before First Use

    BEFORE FIRST USE Once installed, the air conditioner must be tested before use. Connect the power cable into an independent power socket. Ensure the batteries are installed into the remote control. Ensure the area is well-ventilated. 1. Turn on the power and press the ON/OFF button on the remote control to start the unit.

  • Page 28: Operation

    OPERATION Modes This air conditioner features five modes: • Automatic – Allows the air conditioner to automatically adjust its settings to reach the desired temperature. • Cooling – Primarily used during warmer weather to cool areas down. • Heating – Primarily used during colder weather to warm areas up. •...
  • Page 29 4. Press the ON/OFF button and the air conditioner will begin operating. Notes: • When it is cold and wet outside, the outdoor unit may develop frost over the heat exchanger which will increase its heating capacity. The air conditioner will then automatically start its defrost function.
  • Page 30 Timer The timer is used to set the air conditioner to turn on/off after a desired period. If setting the timer to turn the air conditioner on, ensure the air conditioner is in standby. If setting the timer to turn the air conditioner off, ensure the air conditioner is on. •...
  • Page 31 Airflow direction adjustment • Press the SWING button on the remote control to adjust the vertical direction of airflow. • To adjust the direction of airflow left and right, ensure the air conditioner is turned off, then move the air vent manually. Note: Never place your hand into the air inlet or outlet when the air conditioner is in operation.

  • Page 32: Connect To Smarterhome™ App

    Install App Download the “Kogan SmarterHome” app from the Play Store (Android) or App Store (iOS). Register If you do not have a Kogan SmarterHome™ account, register or sign in with a verification code sent by SMS. To register: 1. Tap to enter the registration page.
  • Page 33 Set device in pairing mode Set the device in pairing mode by pressing the WI-FI button on the remote control eight times. The air conditioner will beep twice when it is ready to connect. If the air-conditioner does not beep, repeat this step. If no action is taken within ten minutes, or if the Wi-Fi connection is not completed in that time, the device will automatically exit pairing mode.
  • Page 34 3. Select ‘AP Mode’ for the set-up type. 4. Ensure that the device is in pairing mode and tap “Confirm”. 5. Enter your Wi-Fi details. It is important that your SmarterHome™ device and the app are connected to the same Wi-Fi network during setup.
  • Page 35 6. Follow the in-app prompts to continue the AP Mode connection, which will pair your mobile phone to the device’s Wi-Fi hotspot to ensure a connection. Note: If the Wi-Fi hotspot does not appear on your phone in the list of available networks, your device may not be set in AP Pairing Mode correctly.

  • Page 36: Google Home Control

    1. From the home page of the Google Home app, select the ‘+’ icon to access the ‘Add and manage’ page. 2. Select ‘Set up device’, then under the Works with Google banner, select ‘Have something already set up?’ 3. Select the search bar and type ‘Smarter Home’ to locate the Kogan SmarterHome™ service.
  • Page 37 4. Tap ‘Authorise’ to grant Google permission to access the SmarterHome™ app and your devices. 5. From here, you will be prompted to sign into your SmarterHome™ account using either your email or mobile phone number, depending on which method you used to register your account.
  • Page 38 7. Tap on any of the devices to view a list of available commands. Note: Please note that Google Home can only control the base/core functions of any compatible SmarterHome™ devices. To make full use of this product’s smart functionality, please use the Kogan SmarterHome™ app.

  • Page 39: Amazon Alexa Control

    AMAZON ALEXA CONTROL Note: You will need to have set up an Alexa account prior to linking your Kogan SmarterHome™ device. Adding “SmarterHome” to the Alexa app 1. From the home page of the Alexa app, select the ‘ ’ icon in the top-right and select Skills &...
  • Page 40 3. Tap ‘Enable to Use’ to add the Kogan SmarterHome™ skill to Alexa. 4. From here, you will be prompted to sign into your SmarterHome™ account using either your email or mobile phone number, depending on which method you used to register your account.
  • Page 41 SmarterHome™ account. 7. When your devices have successfully connected to the Alexa app, you will be able to control your Kogan SmarterHome™ devices via Alexa’s voice commands. Note: Please note that Alexa can only control the base/core functions of any compatible SmarterHome™...

  • Page 42: Cleaning & Care

    CLEANING & CARE Before cleaning the air conditioner, ensure it is turned off at the socket for at least five minutes. Not doing so may result in a risk of electric shock. • Do not wet the air conditioner as this can cause an electric shock. Do not rinse the air conditioner with water or any other liquid.
  • Page 43 3. Use a vacuum cleaner or water to clean/rinse the filter. If the filter is very dirty (for example, with greasy dirt), clean it with warm water (below 45˚C) and mild detergent, then put the filter under shade to dry. 4.
  • Page 44 Maintenance WARNING: Do not repair or maintain the air conditioner by yourself as incorrect maintenance may cause electric shock or fire or explode. Always contact an authorised service technician to conduct any repair/maintenance. • This unit uses refrigerant R32 and therefore must be disposed of by a licensed refrigeration mechanic with knowledge of appropriate gas reclamation methods.
  • Page 45 Where electrical components are being changed, they shall be fit for the purpose and to the correct specification. At all times the manufacturer’s maintenance and service guidelines shall be followed. If in doubt, consult help.Kogan.com for assistance. The following checks shall be applied to installations using flammable refrigerants: •...
  • Page 46 Checks to electrical devices Repair and maintenance of electrical components shall include initial safety checks and component inspection procedures. If a fault exists that could compromise safety, then no electrical supply shall be connected to the circuit until it is satisfactorily dealt with. If the fault cannot be corrected immediately but is necessary to continue operation, an adequate temporary solution shall be used.
  • Page 47 Removal and vacuum pumping Ensure there is no ignited fire source near the outlet of the vacuum pump and the area is well-ventilated. 1. Allow the maintenance and other operations of the refrigeration circuit to be carried out according to the general procedure, taking extra care when using flammable items.

  • Page 48: Scrap & Recovery

    SCRAP & RECOVERY Scrap The whole recovery process should be carried out under the guidance of qualified personnel. If recycling the refrigerant, personnel shall be thoroughly familiar with the equipment and all its features. Personnel must also analyse the refrigerant and oil samples before operation. Ensure the following guidelines are followed when scrapping: •...
  • Page 49 • Storage tanks should be equipped with pressure relief valves and globe valves. They should be in a good condition. If possible, empty tanks should be evacuated and maintained at room temperature. • The recovery equipment should be kept in a good working condition and there should be easy access to operating instructions.

  • Page 50: Troubleshooting

    TROUBLESHOOTING Issue Cause/solution Ensure the power plug is securely connected to an outlet and that there is electricity. The air conditioner does not Ensure all fuses for power are not blown. work. Check that sleep/timer functions are not active. If they are, wait or cancel the timer settings.
  • Page 51 If there is an odour, clean the air filter or activate the The indoor unit is blowing out iCLEAN function. an odour. Ensure there is no buildup or mould in the area or AC. There is the sound of running When the air conditioner is operating or has stopped, water when the air sometimes there is a hissing sound.

  • Page 52: Dimensions

    DIMENSIONS Left installation foot Right installation foot Air inlet Air outlet Outdoor Unit Size Model A (mm) B (mm) W1(W2)*H*D) (mm) KAWFSAC26UA 800 (860) x 545 x 315 KAWFSAC52UA 890 (950) x 700 x 350 KAWFSAC70UA 890 (950) × 700 × 350 KAWFSAC80UA 970 (1044) x 803 x 395...

  • Page 53: Specifications

    SPECIFICATIONS KAWFSAC26UA Capacity Cooling (Btu/H) 9,000Btu/H Heating (Btu/H) 9,895Btu/H Power Power 2.6kW Power supply supported 220–240V, 50Hz Power input (cooling) 530W Power input (heating) 680W Amperage Average consumption 522W Current (cooling) 3.2A Current (heating) 3.9A Other Temperature range 16–32°C Auto swing 80°...
  • Page 54 KAWFSAC52UA Capacity Cooling (Btu/H) 18,000Btu/H Heating (Btu/H) 18,000Btu/H Power Power 5.2kW Power supply supported 220–240V, 50Hz Power input (cooling) 1.28kW Power input (heating) 1.26kW Amperage Average consumption 1280W Current (cooling) 5.6A Current (heating) 5.5A Other Temperature range 16–32°C Auto swing 80°...
  • Page 55 KAWFSAC70UA Capacity Cooling (Btu/H) 24,000Btu/H Heating (Btu/H) 28,000Btu/H Power Power Power supply supported 220–240V, 50Hz Power input (cooling) 2000W Power input (heating) 2400W Amperage Average consumption 1990W Current (cooling) 8.5A Current (heating) Other Temperature range 16–32°C Auto swing 80° vertical Air flow volume 1300m³/h Discharge pressure...
  • Page 56 KAWFSAC80UA Capacity Cooling (Btu/H) 28,000Btu/H Heating (Btu/H) 28,660Btu/H Power Power Power supply supported 220–240V, 50Hz Power input (cooling) 2400W Power input (heating) 2550W Amperage Average consumption 2400W Current (cooling) Current (heating) Other Temperature range 16–32°C Auto swing 80° vertical Air flow volume 1250m³/h Discharge pressure 4.3MPa...

  • Page 57: Notes

    NOTES...
  • Page 60 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
