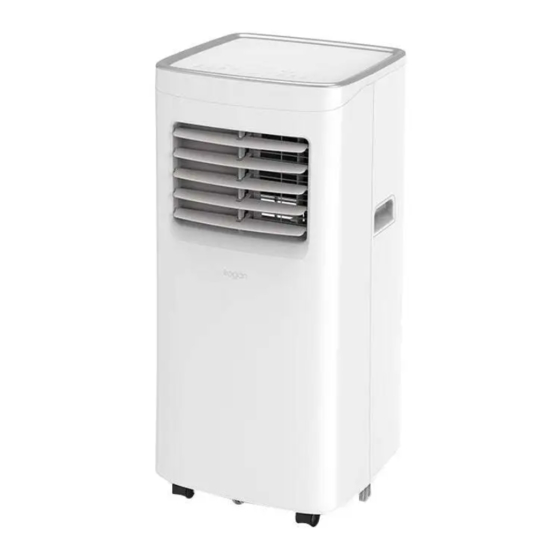

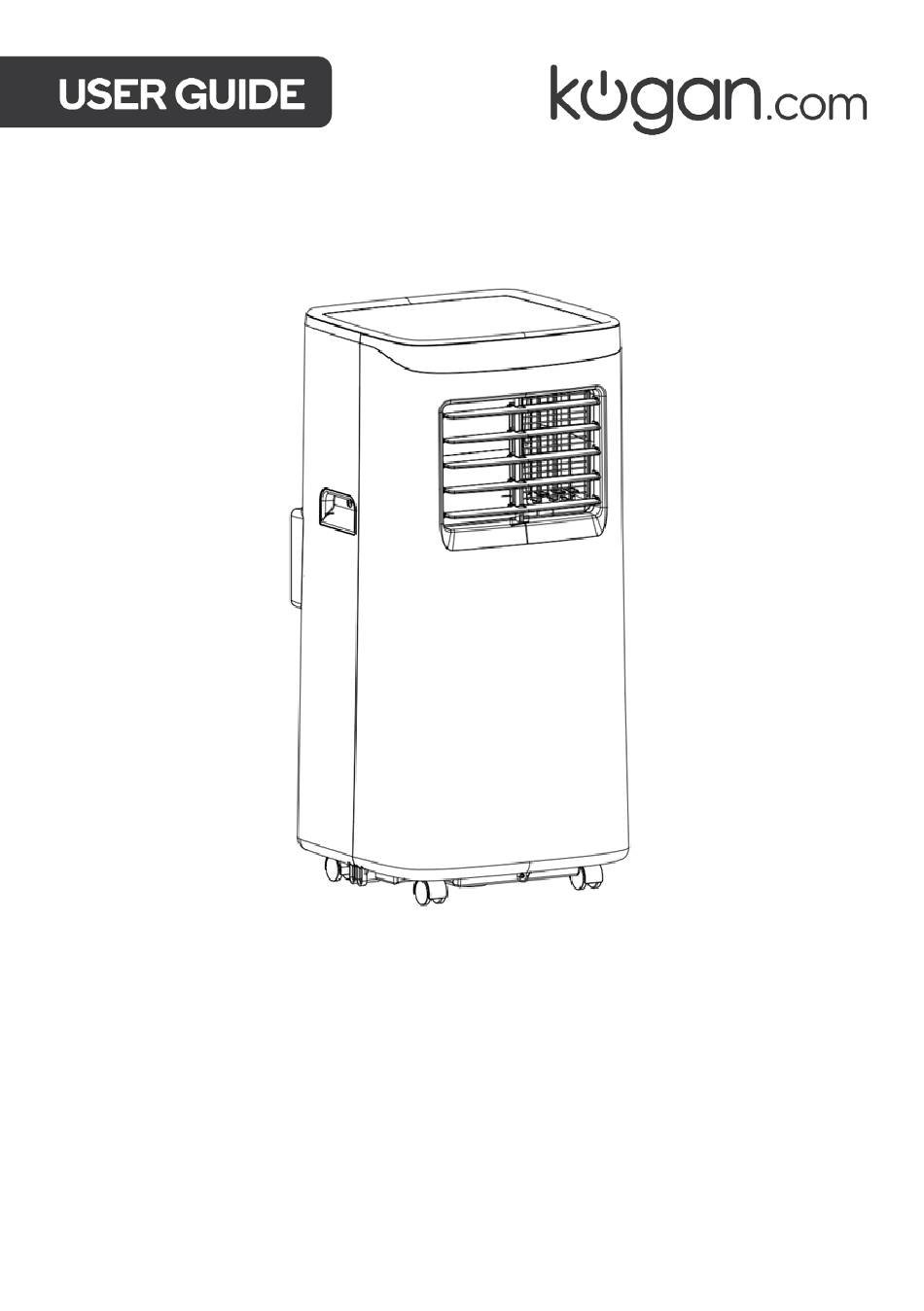

- Page 1 KOGAN SMARTERHOME™ 2.0KW PORTABLE AIR CONDITIONER 7,000 BTU KAWFPAC07JA...
-
Page 2: Table Of Contents
Safety & Warnings Overview Installation Before Use Operation Connect to SmarterHome™ App Google Home Control Amazon Alexa Control Cleaning & Care Maintenance Troubleshooting Specifications Schematic Diagram Electric Wiring Diagram Notes... -
Page 3: Safety & Warnings
SAFETY & WARNINGS Ensure to read all instructions and warnings in this user guide prior to assembly and first use. Retain this user guide for future reference. WARNING: Maintenance and repair requiring the assistance of other skilled • personnel shall be carried out under the supervision of professionals in the use of flammable refrigerants. - Page 4 • If the air conditioner is damaged, stop use immediately and contact help.Kogan.com for assistance. • If the power cord is damaged, stop use immediately and contact help.Kogan.com for assistance. • Do not use extension pipes or use different pipes than those provided as this may result in a malfunction.
- Page 5 COMPONENTS A Air conditioner (x1) B Window seal connector (x1) C Exhaust pipe (x1) D Duct interface (x1) E Window sealing plate (x1) F 1m drainage pipe (x1) G Remote control (x1) H AAA battery (x2) I User guide (x1)
-
Page 6: Overview
OVERVIEW Front view Control panel Decorative ring Top cover Signal receiver Air outlet Handle Front housing Castors... - Page 7 Side view EVA filter Upper drainage cover Handle Air inlet Rear housing CON filter Lower drainage cover...
- Page 8 Control panel Indicator lights Swing button Decrease button Fan speed indicators Timer button Mode button Mode indicators Fan speed button Sleep mode button Indicator lights Increase button Power button Full indicator Display Remote control 15 16 17 Fan speed button Sleep mode button Increase button Swing button...
-
Page 9: Installation
INSTALLATION Notes: • Ensure the air conditioner is kept upright. • Do not install the air conditioner in humid areas. Installing the exhaust pipe assembly 1. Remove the packaging from the duct interface, exhaust pipe, and window seal connector. 2. Straighten one end of the folded exhaust pipe and screw the duct interface clockwise into the exhaust pipe. - Page 10 Placing the air conditioner 1. Place the air conditioner on a dry, flat surface. Ensure there is at least a 50cm clearance away from any walls or obstructions. 50cm 50cm 2. Elongate the exhaust pipe assembly and snap the window seal connector into the hole of the window sealing plate.
-
Page 11: Before Use
BEFORE USE WARNING: Before use, keep the air conditioner upright for at least two hours to allow the refrigerant to settle. Remote control battery The remote control of air conditioner requires batteries to operate. 1. Remove the back cover of the remote control. 2. - Page 12 To switch between the modes, press the mode button on the remote control or control panel. The modes will cycle through and the relevant indicator lights below the mode indicators will illuminate. Cooling mode indicator Dehumidifying mode indicator Fan mode indicator Adjusting the temperature In cooling mode, press the increase and decrease buttons to adjust to the desired temperature (16–31°C).
- Page 13 Timer If the air conditioner is on standby, the timer can be set to turn on the air conditioner after a user-specified period. If the air conditioner is currently operating, the timer can be set to turn off the air conditioner after a user-specified period.
-
Page 14: Connect To Smarterhome™ App
CONNECT TO SMARTERHOME™ APP Install App Download the ‘Kogan SmarterHome’ app from the Play Store (Android) or App Store (iOS). Play Store (Android) App Store (iOS) To register: 1. If you already have a SmarterHome account, select ‘Log In’. To register a new account, select ‘Sign Up’. - Page 15 Set device in pairing mode When the device is first turned on, it may automatically enter pairing mode (power button on the control panel is flashing rapidly). If not automatically in pairing mode when powered on, you can manually set the device in pairing mode by pressing and holding the fan speed button for five seconds until power button on the control panel is flashing rapidly.
- Page 16 4. Ensure that the device is in pairing mode, with the power button on the control panel flashing rapidly, and tap “Confirm light is rapidly flashing”. 5. The device will commence the pairing process and connect to the app. Ensure your Wi-Fi router, mobile phone, and the SmarterHome™...
-
Page 17: Google Home Control
Note: You will need to have set up a Google Home account prior to linking your Kogan SmarterHome™ device. Adding ‘SmarterHome’ to the Google Home app 1. From the home page of the Google Home app, select the ‘+’ icon (top left corner, see arrow in the below screenshot) to access the ‘Add and manage’... - Page 18 3. Select the search bar and type ‘Smarter Home’ to locate the Kogan SmarterHome™ service. 4. From here, you will be prompted to sign into your SmarterHome™ account using either your email or mobile phone number, depending on which method you used to register your account.
- Page 19 Tap on any of the devices to view a list of available commands. Note: Please note that Google Home can only control the base/core functions of any compatible SmarterHome™ devices. To make full use of this product’s smart functionality, please use the Kogan SmarterHome™ app.
-
Page 20: Amazon Alexa Control
AMAZON ALEXA CONTROL Note: You will need to have set up an Alexa account prior to linking your Kogan SmarterHome™ device. Adding ‘SmarterHome’ to the Alexa app 1. From the home page of the Alexa app, select the ‘ ’ icon in the bottom-right and select ‘Skills &... - Page 21 3. Tap ‘Enable to Use’ to add the Kogan SmarterHome™ skill to Alexa. 4. From here, you will be prompted to sign into your SmarterHome™ account using either your email or mobile phone number, depending on which method you used to register your account.
- Page 22 7. Once connected, the app will perform a search and display the devices linked to your SmarterHome™ account. When your devices have successfully connected to the Alexa app, you will be able to control your Kogan SmarterHome™ devices via Alexa’s voice commands.
-
Page 23: Cleaning & Care
CLEANING & CARE Drainage When the water inside the air conditioner needs to be emptied, there are two ways to drain • Manual drainage • Continuous drainage Manual drainage 1. Press the power button to turn off the air conditioner, then unplug the power cord. 2. - Page 24 Cleaning Before cleaning and maintenance, ensure the air conditioner is turned off and unplugged. Exterior Wipe with exterior with a wet soft cloth. If the exterior has stubborn stains, wipe with a mild detergent. Note: Do not use chemicals (for example, benzene, alcohol, gasoline) as the exterior and air conditioner may become damaged.
- Page 25 Storage 1. Unscrew the drainage cover, unplug the water plug, and tilt the air conditioner backward to ensure no water is stored inside. 2. Connect the drainage pipe. Turn on the air conditioner and run it on a low fan speed until the drainage pipe becomes dry to keep the inside of the body in dry and prevent it from mildewing.
-
Page 26: Maintenance
MAINTENANCE Regarding appliances containing R290 Checks to the area Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimised. For repairs to the refrigerating system, the following precautions shall be completed prior to conducting work on the system. - Page 27 • Prior to work taking place, the area around the equipment is to be surveyed to make sure that there are no flammable hazards or ignition risks. • ‘No Smoking’ signs shall be displayed. Ventilated area Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or conducting any hot work.
- Page 28 • The seals or sealing materials have not degraded to the point that they no longer serve the purpose of preventing the ingress of flammable atmospheres. Contact help.Kogan.com if requiring replacements. Notes: The use of silicon sealant may inhibit the effectiveness of some types of leak detection equipment.
- Page 29 Leak detection methods The following leak detection methods/guidelines are deemed acceptable for systems containing flammable refrigerants: • Electronic leak detectors shall be used to detect flammable refrigerants, but the sensitivity may not be adequate or may need re-calibration. (Detection equipment shall be calibrated in a refrigerant-free area.) Ensure that the detector is not a potential source of ignition and is suitable for the refrigerant used.
- Page 30 Charging procedures In addition to conventional charging procedures, the following requirements shall be followed: • Ensure that contamination of different refrigerants does not occur when using charging equipment. • Hoses or lines shall be as short as possible to minimise the amount of refrigerant contained in them.
- Page 31 • When the cylinders have been filled correctly and the process completed, make sure that the cylinders and the equipment are removed from the site promptly and all isolation valves on the equipment are closed off. • Recovered refrigerant shall not be charged into another refrigerating system unless it has been cleaned and checked.
-
Page 32: Troubleshooting
TROUBLESHOOTING Problem Possible causes Solution The air conditioner is Plug the power cord into an outlet and unplugged. turn it on. Ensure the power plug is fully inserted The power plug is loose. into the outlet. The display shows ‘FL’ and The air the full indicator is Drain the water from the air conditioner. - Page 33 Ensure there are no obstructions and The ventilation openings there is at least a 50cm clearance are blocked. between the air conditioner and any other objects. The ambient temperature Adjust the set temperature to be below is warmer than the set the ambient temperature.
- Page 34 ‘E3’. display board. to the PCB, or replace the PCB. Note: If problems not listed in the table occur or recommended solutions do not work, contact help.Kogan.com for assistance.
-
Page 35: Specifications
SPECIFICATIONS Cooling capacity 7,000BTU/hr Power 2.06kW Running current 2.5A Standby power consumption 0.7W Power supply supported 220–240V, 50Hz Power input 785W Dehumidification capacity 0.7L/hr Refrigerant R290, 140g Air flow volume 300m³/hr Coverage area 10–15m² Cooling temperature range 16–31°C Noise level 65dB(A) Fuse parameters Type... -
Page 36: Schematic Diagram
SCHEMATIC DIAGRAM The specific technical parameters of the machine shall be subject to the nameplate on the product. Capillary Condenser Evaporator Compressor... -
Page 37: Electric Wiring Diagram
ELECTRIC WIRING DIAGRAM This marking indicates that this appliance should not be disposed of with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. -
Page 38: Notes
NOTES... - Page 40 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
