Balluff Inductive Coupler
BIC 1B0-IT1A7-Q40KFU-SM4A4A (Base)
BIC 2B0-IT1A7-Q40KFU-SM4A5A (Remote)
4

Installation

4.1 Mutual
Interference
4.2 Installation in
Metal
www.balluff.com

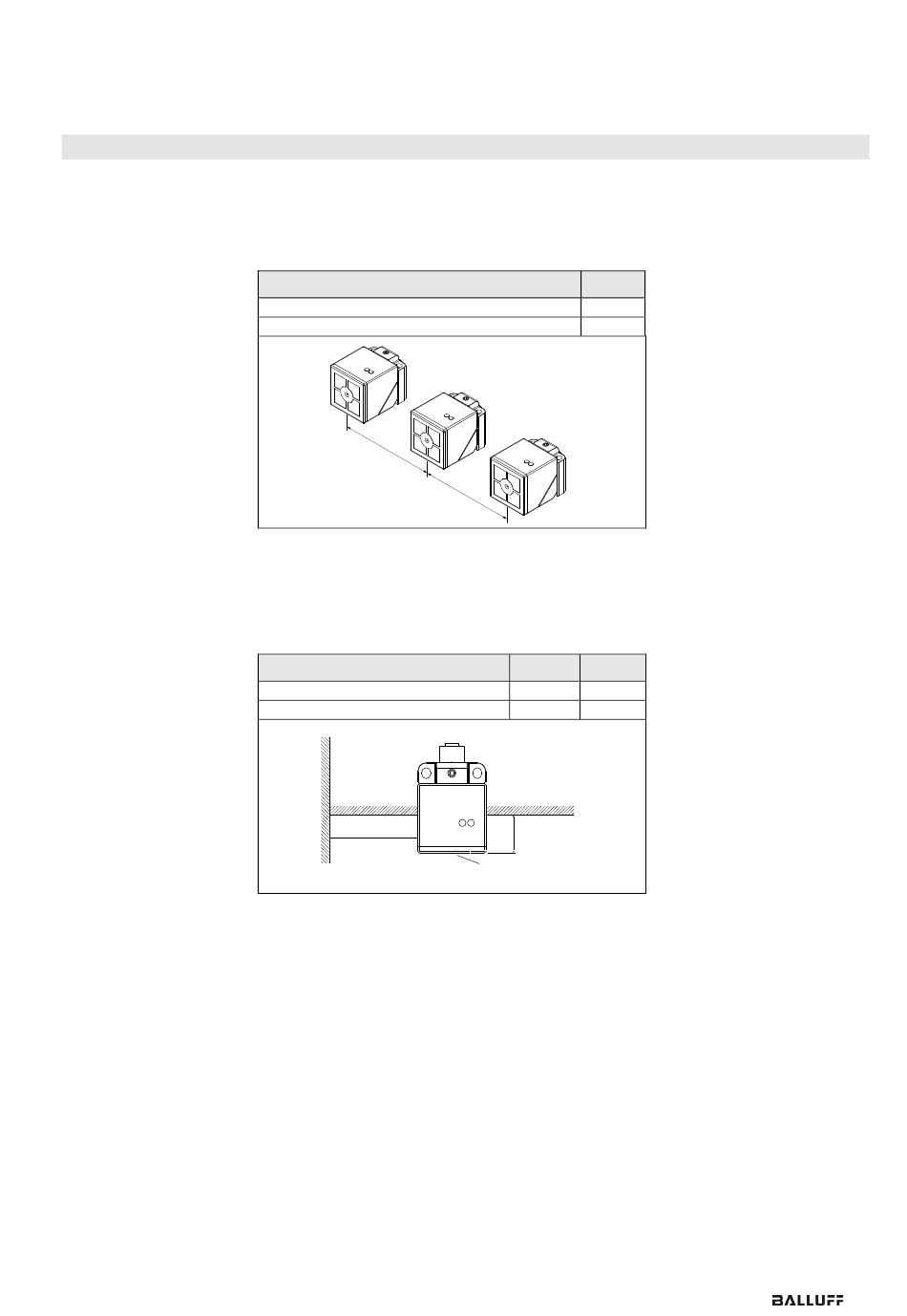

To prevent mutual interference with adjacent Bases or Remotes, the specified minimum
distances must be adhered to.
Type
BIC 1B0-IT1A7-Q40KFU-SM4A4A
BIC 2B0-IT1A7-Q40KFU-SM4A5A
A
Device damage due to induction effects!
Metallic objects in front of and on the coil cap cause the sensing surface to be heated. The
sensing surface is marked by the crosshairs on the housing.
Install the components so that no metallic objects are in the zone produced by distances A
and B. Distances A and B must be maintained independently of each other!
Type
BIC 1B0-IT1A7-Q40KFU-SM4A4A
BIC 2B0-IT1A7-Q40KFU-SM4A5A
A
A (mm)
≥ 200
≥ 200
A
A (mm) B (mm)
≥ 30 ≥ 20
≥ 30 ≥ 20
B
Sensing surface
