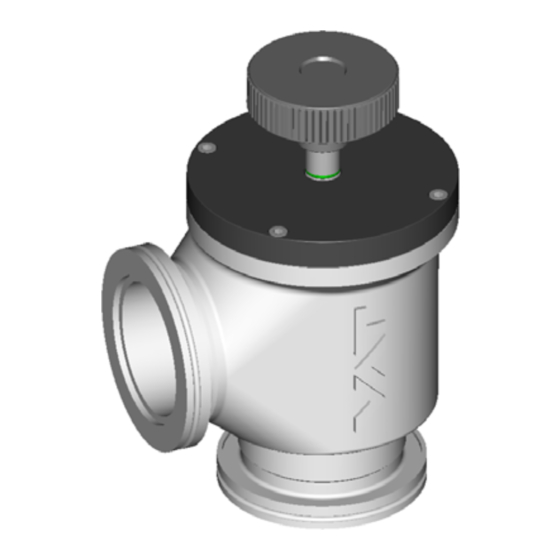

Vacuum Angle valve
Vacuum Inline valve
● with manual actuator
This manual is valid for the valve ordering number(s):
24436-QA/QH/QE/GE/01
24438-QA/QH/QE/GE/01
24536-QA/QH/QE/GE/01
24538-QA/QH/QE/GE/01
The fabrication number is indicated on each product as per the label
below (or similar):
made in Switzerland
Fabrication No.:
patented
24. . . – . . . . – . . . . / . . . .
A – . . . . . .
Explanation of symbols:
Read declaration carefully before you start any other
action!
Attention!
Product is in conformity with EC guidelines,
if applicable!
Disconnect electrical power and compressed air
lines. Do not touch parts under voltage!
VAT Vakuumventile AG, CH-9469 Haag, Switzerland
Tel +41 81 771 61 61 Fax +41 81 771 48 30 CH@vatvalve.com www.vatvalve.com

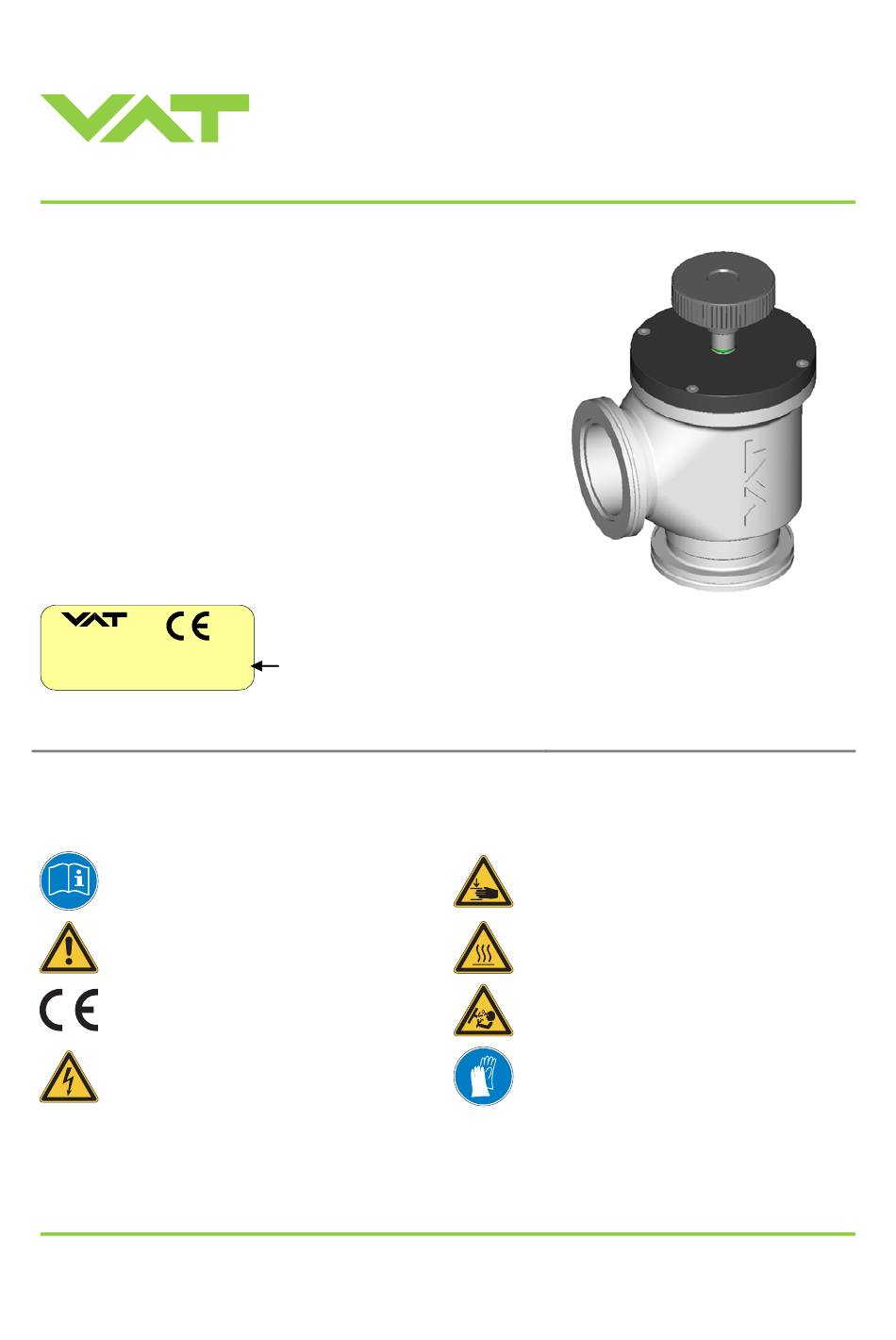

Installation, Operating & Maintenance Instructions
Series 244, DN 63 - 80 (I.D.2
Series 245, DN 63 - 80 (I.D.2
(Series 244)
(Series 245)
. .
Fabrication number
1
1
Keep body parts and objects away from the valve
opening!
Hot surfaces; do not touch!
Loaded springs and/or air cushions are potential
hazards!
Wear gloves!
265903EC
2010-03-02
/
" - 3")
2
/
" - 3")
2
1/10
