7865 North 86th Street  Milwaukee, WI 53224  Phone 414.354.1600  Fax 414.354.4760  www.mortara.com

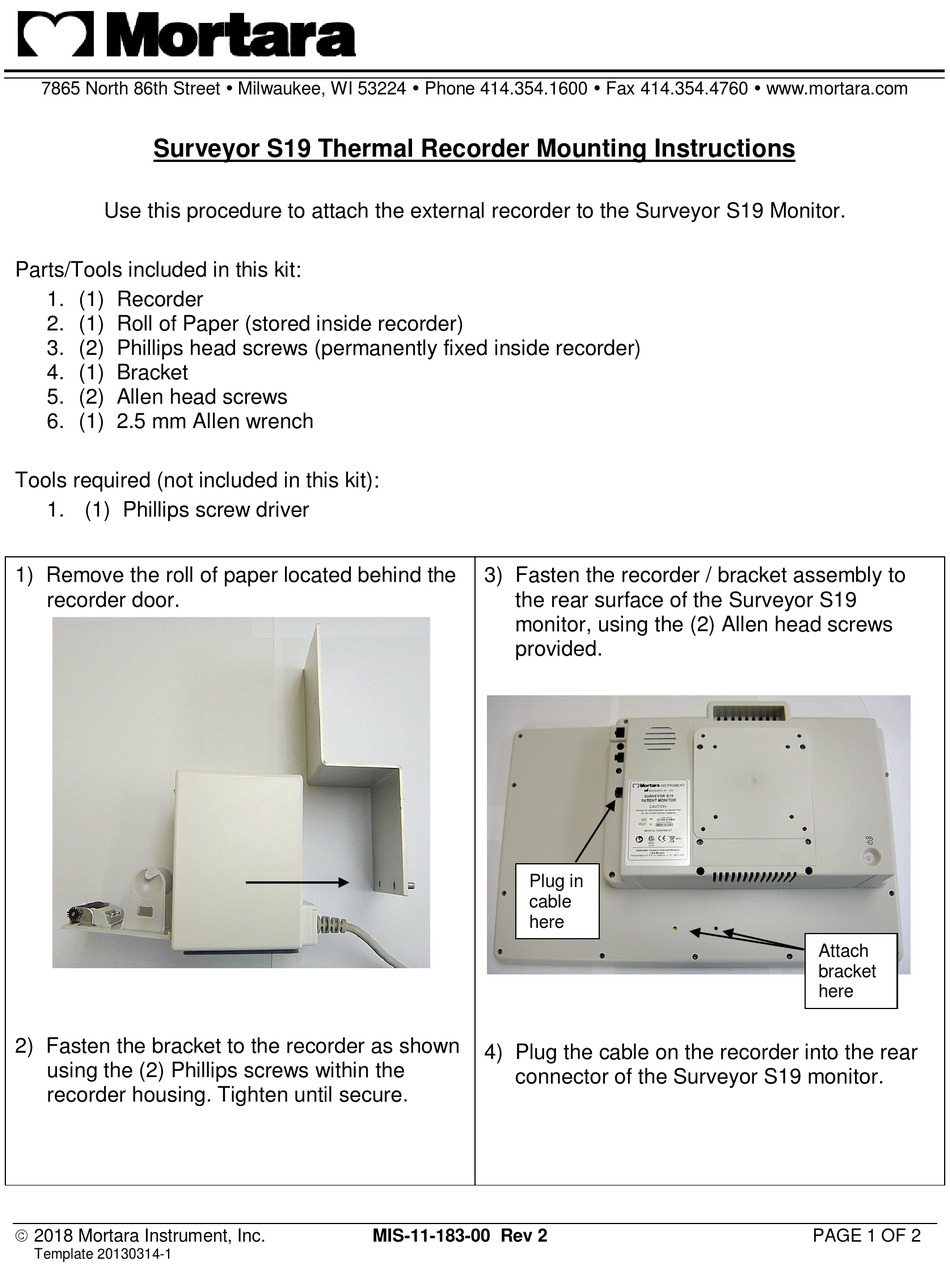

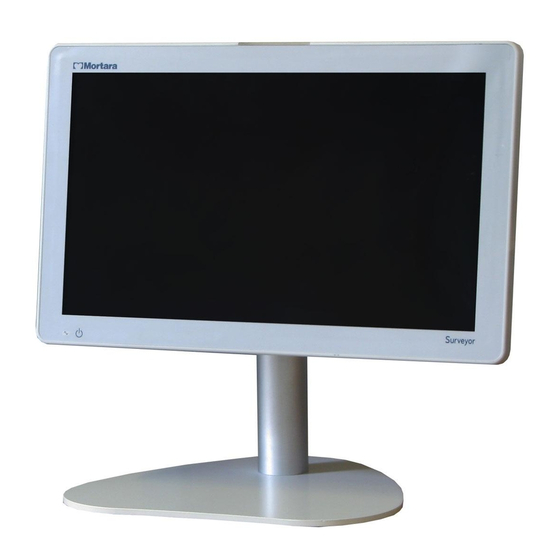

Surveyor S19 Thermal Recorder Mounting Instructions
Use this procedure to attach the external recorder to the Surveyor S19 Monitor.

Parts/Tools included in this kit:

1. (1) Recorder
2. (1) Roll of Paper (stored inside recorder)
3. (2) Phillips head screws (permanently fixed inside recorder)
4. (1) Bracket
5. (2) Allen head screws
6. (1) 2.5 mm Allen wrench

Tools required (not included in this kit):

1. (1) Phillips screw driver
1) Remove the roll of paper located behind the
recorder door.
2) Fasten the bracket to the recorder as shown
using the (2) Phillips screws within the
recorder housing. Tighten until secure.
 2018 Mortara Instrument, Inc.
Template 20130314-1
3) Fasten the recorder / bracket assembly to
the rear surface of the Surveyor S19
monitor, using the (2) Allen head screws
provided.
Plug in
cable
here
4) Plug the cable on the recorder into the rear
connector of the Surveyor S19 monitor.
MIS-11-183-00 Rev 2
Attach
bracket
here
PAGE 1 OF 2
