Ercol LUGO 4082 Quick Start Manual

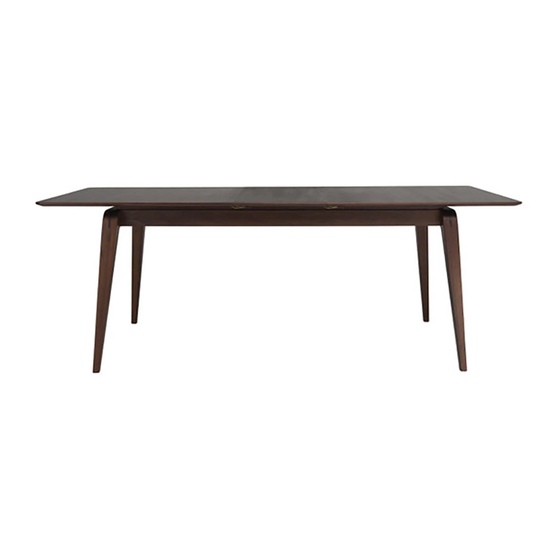

Medium extending dining table
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

Thank you for purchasing this Lugo medium extending dining table. Please ensure instructions are read in full before
attempting to assemble this product.
Installation should be carried out exactly according to the manufacturers instructions, otherwise a safety risk can
occur if incorrectly installed.
This product is heavy, it should be assembled as near as possible to the point of use. Take care when lifting to avoid
personal injury and (or) damage to the product.
The fittings pack contains small items which should be KEPT AWAY FROM YOUNG CHILDREN.
Read this leaflet in full before commencing assembly.
Ref: 2507 / 4082
4082 LUGO MEDIUM EXTENDING
DINING TABLE
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LUGO 4082 and is the answer not in the manual?

Questions and answers

Related Manuals for Ercol LUGO 4082

Summary of Contents for Ercol LUGO 4082

  • Page 1 4082 LUGO MEDIUM EXTENDING DINING TABLE Thank you for purchasing this Lugo medium extending dining table. Please ensure instructions are read in full before attempting to assemble this product. Installation should be carried out exactly according to the manufacturers instructions, otherwise a safety risk can occur if incorrectly installed.
  • Page 2 Please check the pack contents before attempting to assemble this product. A full checklist of components is given in this leaflet. If any components are missing, please contact the retailer from whom you bought this product. Items you will need Pre-assembly preparation This is a two person operation Parts checklist...
  • Page 3 Step by step assembly instructions 1. Fix 4x headless bolts (B) on the legs (2) as shown below. 2. Use 4x fixing heads (C) and 4x hex nuts (D) to attach the legs (2) to the top panel (1). Make sure placing the fixing heads (C) first by aligning the hole on them with the hole where the headless bolts go through.
  • Page 4 3. Fix 8x allen head bolts (A) by using an allen key (E). 4. Lift the unit to standing position. Ref: 2507 / 4082...
  • Page 5 5. Release the two catch locks under the top panel and extend both halves. 6. Take out the extension leaf and place it between the two halves of the top panel. 7. Fix the top panels in place by using the catch locks. Ref: 2507 / 4082...
  • Page 6 No liability will be accepted for damage or injury caused by incorrectly installed furniture. PLEASE KEEP THESEINSTRUCTIONS FOR FUTURE REFERENCE Ref: 2507 / 4082 Ercol Furniture Ltd, Summerleys Road, Princes Risborough, Buckinghamshire. HP27 9PX ercol.com YNG TAL 14 / ERLG006 D: 09.05.2019 / RN000...
