- Page 1 Gravur mit Farbfüllung 6.12.17 Gehäuse RAILSTOP RS S06 Mitgeltende Beschriftungsdaten: Kennzeichnung/ Freigegeben Branding User Manual 0158 EN 353-1:2014...
-
Page 2: Brief Description
- LMB arrester rail, C-profileCC • Rail attachments at a distance of 1.1 m or The fall arrester RAILSTOP RS S06 may only be ladder attachments at a distance of 1.7 m used in combination with the tested rail guide. - Page 3 BRIEF DESCRIPTION EQUIPMENT FALL ARRESTER • Aluminium casing. • Separate pawls to prevent falls and tilting: - Pawl A "Climb" in stainless steel with polyamide tape fall absorber and aluminium karabiner with Twistlock-Plus fastener and swivel. - Pawl B "Horizontal pull" in stainless steel with textile connecting loop and aluminium karabiner with Twistlock-Plus fastener.

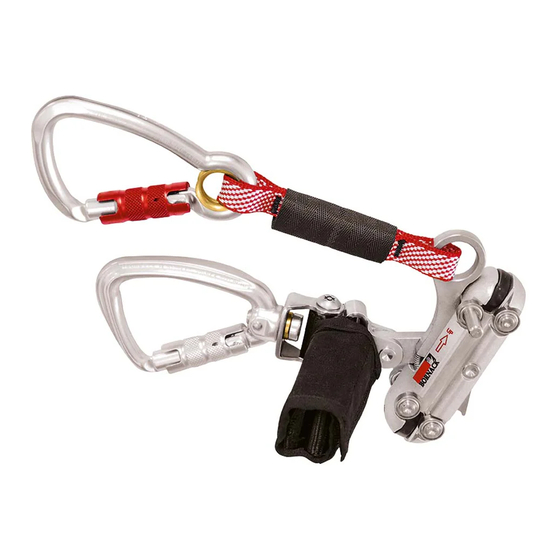

- Page 4 4 | 5 RAILSTOP RS S06 Locking pin to prevent wrong insertion into rail Karabiner B for hooking into the D-ring at chest Label pouch with Large roller with height (sternal) identification ball bearings Lanyard Identification Pawl A „climb“ Tape fall absorber...
- Page 5 LADDER END LOCK Climbing path Climbing path end with end lock End lock C-profile rail INSERT LOCK/CLIMBING LOCK Locking Locking pin Securing device PAWL Step Treaded plate Pawl Climbing path start RESTING PLATFORM REMOVAL FLAP Removal flap Resting platform Securing devices Locking Treaded plate...
-
Page 6: Before Using
BORNACK. • Check that the end stops at the start and end of the ascent path are in place. - Page 7 RAILSTOP RS S06 IN USE PREPARATION A Insert the fall arrester at the end of the rail or at the removal point in the rail profile. Pull the locking pin of the climbing lock downwards and hold. Guide the fall arrester, with the pin pointing to the right, into the C-profile and past the locking pin.
- Page 8 8 | 9 RAILSTOP RS S06 IN USE Use a fully body harness according to EN 361 with a sternal D-ring and ventral multifunction D-ring and observe the user manual for the full body harness. Adjust the full body harness to the wearer’s personal size so it fits snugly.
- Page 9 RAILSTOP RS S06 IN USE USING THE FALL ARRESTER CAUTION: CAUTION: The weight of the user with tools and equip- Before using, ensure there is enough clearance ment may not exceed 140 kg! to the ground below the user to prevent a fall onto a protruding obstacle or the ground.
- Page 10 10 | 11 RAILSTOP RS S06 IN USE CAUTION: If several persons use the ladder at the same time, maintain a minimum clearance of 3.0 m. • Only release from the fall arrester if there is no longer a risk of falling. If necessary, secure temporarily with a lanyard.
-
Page 11: Safety Instructions
• Application temperature -30 °C to +60 °C • Accessories from other manufacturers may • Check compatibility with other PPE parts. only be used if approved by BORNACK and may not impair the function and safety of the protective equipment. -
Page 12: Regular Inspections
A PPROVAL SERVICE Complies with the EC Directive 89/686/ EEC. If you have any further questions about safe use of this PPE or other BORNACK services, such Type testing and production monitoring by: DEKRA EXAM GmbH • Risk analysis Dinnendahlstr. 9, D-44809 Bochum CE 0158 •... - Page 13 No other cleaning agents may be used! • For information about disinfection, please For reasons of safety, after intensive use and/or contact the email hotline: info@bornack.de extreme conditions, e.g. sharp edges and • If the personal protective equipment comes chemical influences, the usage period may be into contact with saltwater, keep it wet until it reduced.
- Page 14 14 | 15 OTHER REPARATUR • For reasons of liability, repairs may only be carried out by the manufacturer or authorised workshops. • Only original spare parts from the manufac- turer may be used. STORAGE • Dry damp personal protective equipment before storing.
- Page 15 OTHER PRODUCT IDENTIFICATION The identification on this PPE contains the following information: Identification basic element Front: Reverse: Running Data direction matrix Serial no. Manu- facture date Charge Contact Logo Product name BFD Tasche mit BORNACK Logo Etikettenfahne BFD...
- Page 16 16 | 17 OTHER Identification label pouch Lanyard: Logo Product name Product type Product type Item no. Useful load matching climbing systems Norm Read/observe CE symbol user manual Componen Item no. Charge Manufactured on serial no. Data matrix Manufacturer address Identification tape energy absorber: Logo Product name...
- Page 17 Norms type Contact Matching fall arrester systems Only use the ladder with a fall Symbols of approved fall arresters arrester and a full body harness (BORNACK/Skylotec) Symbols of approved fall arresters: Product name/type Product name/type Logo Application temperature range Assembly...
- Page 18 Useful load serial no. Manufactured date matching BORNACK Use full body RS S / LMB climbing systems only harness Read/observe CE symbol user manual BORNACK GmbH & Co.KG Manufacturer Bustadt 39 address 74360 Ilsfeld/Germany Minimum distance between two Norm users...
-
Page 19: Ec Declaration Of Conformity
EC DECLARATION OF CONFORMITY... -
Page 20: T E S T C A R D
FOR ANNUAL MONITORING T h e t e s t c a rd m u s t b e Type fall arrester: RAILSTOP RS S06 completed by an expert that h a s b e e n b r i e f e d a n d... - Page 21 T E S T C A R D FOR ANNUAL MONITORING Please complete: Year Year Year Year Year Year Year Year Harness undamaged? No chem. soiling? Seams undamaged? No deformation of metal parts? Karabiners in place and functional? Condition of springs/rivets/ axles OK No corrosion damage? Smooth-running snapper...
- Page 22 22 | 23 T E S T C A R D FOR ANNUAL MONITORING T h e t e s t c a rd m u s t b e Rail/ladder type: _______________________________ completed by an expert that h a s b e e n b r i e f e d a n d Manufactured on: ______________________________ certified by the manager in...
- Page 23 T E S T C A R D FOR ANNUAL MONITORING Please complete: Year Year Year Year Year Year Year Year Year Year Identification and warnings in place An inspection tour was carried out? No damage/deformation of the guide rail/ladder? Attachment straps are undamaged? Attachment bracket and attach-...
- Page 24 24 | 25 T E S T C A R D FOR ANNUAL MONITORING Please complete: Year Year Year Year Year Year Year Year Year Year Only original parts were used? User manual available Blocked...
- Page 25 Notes:...
- Page 26 26 | 27 Notes:...
- Page 27 Notes:...
- Page 28 4800 Zofingen, AG Switzerland Tel + 41 (0) 62 / 886 30 40 info@bornack.ch www.bornack.ch © BORNACK – Subject to technical changes Reprinting or duplication, even of excerpts, is only permitted with written consent Status: 07/2018 GAL No. 000 164 anh...
