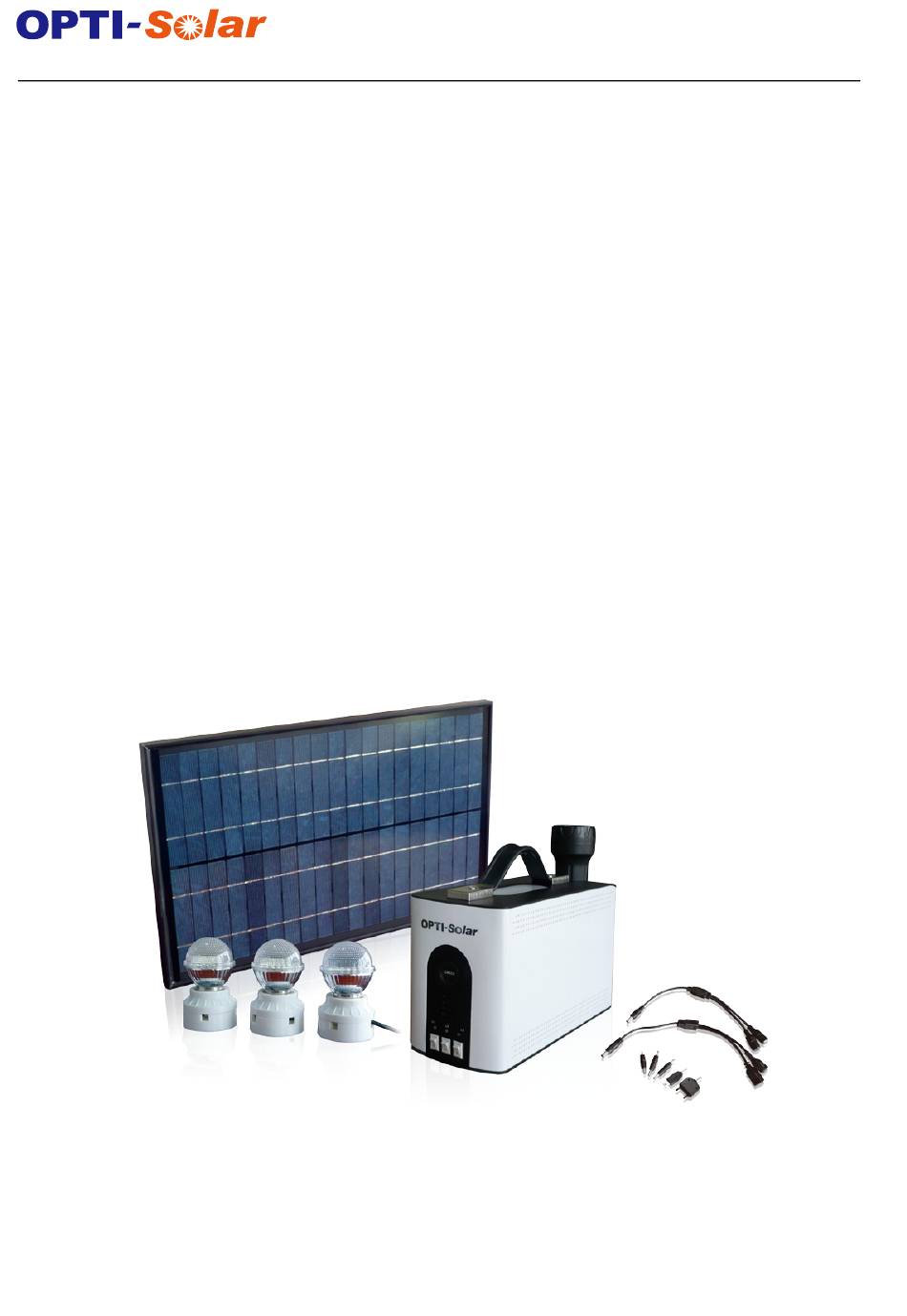

- Page 1 . o p t i - s o l a r . c o m User Manual Multi Functional Solar System MSS-20...
- Page 2 w w w . o p t i - s o l a r . c o m Contents Ⅰ.Cautions Ⅱ.System Summary Ⅲ.Technique Data Ⅳ.Methods of Installation Ⅴ.Methods of Operation Ⅵ. Maintenance Ⅶ.Conservation Ⅷ.Accessories List Ⅸ.FAQ and Solutions...
- Page 3 w w w . o p t i - s o l a r . c o m Ⅰ.Cautions ⅰ.Please read this user manual carefully in order to understand correct operation methods. Please make it in safe keeper for reference later after reading ⅱ.Before the first time of using, the system should be charged over 12hours in order to insure the battery is full.
- Page 4 w w w . o p t i - s o l a r . c o m LB-S2 System Function Introduction i t a Multifunctional Mobile Charger Socket (DC6V) Load Output Socket (DC12V/2A) Electrical Quantity Indicator Load Output Control Switch...

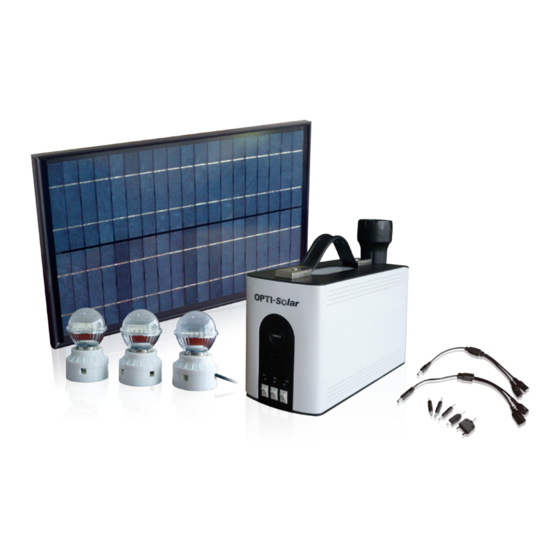

- Page 5 . o p t i - s o l a r . c o m 2) MSS-20 Performance Characteristic: MSS-20 is elaborately designed for lighting in areas without or be short of electricity. Since the system adopts solar energy, it’s environment-friendly, safe, quiet, and easy to carry and conceal. The 20W solar system can supply power to 3W (5W) high-efficient LED light for home/shop lighting as well as charging for mobile phones.
- Page 6 ● Over current protection：6A 3.5 Dormancy Function When the system is not allowed to discharge, the power control panel can automatically stop working in order to reduce power consumption. Ⅲ. Technical Data MSS-20 Battery Capacity 12V/14AH e t t e t t...
- Page 7 w w w . o p t i - s o l a r . c o m 、 Battery Host （L）×110（W）×160（H） e t i Ⅳ. Methods of Installation ⅰ、Firstly, take accessories out of the carton.: ⅱ、Fix the lights (the loads) to the wall or to the ceiling (light area). ⅲ、Fix solar panel to a place outdoor (there is no shadow blocking out and the sunshine can reach it.) Adjust the angle of solar panel according to the local latitude.
- Page 8 w w w . o p t i - s o l a r . c o m Ⅵ、Maintenance. This system adopts free maintenance design. The power of output and input is automatically controlled. So it's perennial free maintenance. 1、Battery charge and discharge used perfect automated management program. It won't be over charge and discharge.
- Page 9 w w w . o p t i - s o l a r . c o m Ⅷ、Accessory List Item Name Quantity Remark Battery Host 3W LED Lamp LB-S13L 3W LED Lamp LB-S14L 10W DC Fan with 3-metre wire LB-S13L Multifunctional Mobile Charger LED Lamp Holder with 8-metre Wire...
- Page 10 w w w . o p t i - s o l a r . c o m Ⅸ. FAQ and Solution： Questions Reasons Proposed Solutions There is something wrong Check the battery with the battery. Check the battery connection. Fuse pipe The polarity is reversed may be burned.
