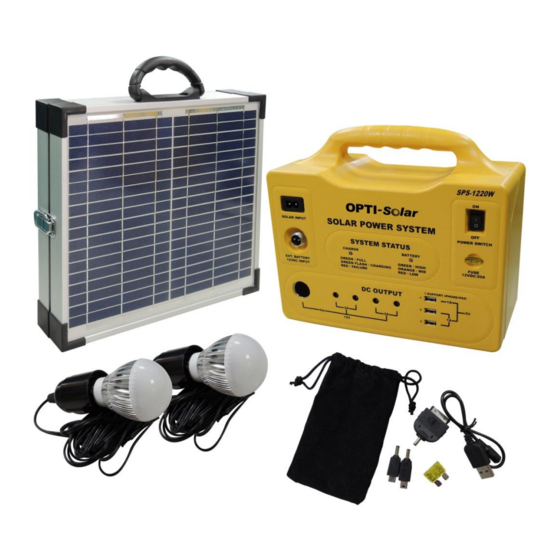

System introduction The point of the Solar Power System is to replace home power. It is also useful in situations such as: emergencies (rescue and disaster support), facilities with no power, camping and travel, etc. Appearance Handle Solar input / Main power switch AC/DC adapter input Main power fuse... -
Page 3: System Setup
System setup ● Solar power system default setting: 。Main power switch: off 。Main power fuse: open (Accessory parts) ● Insert the main power fuse ● Turn the main power switch on ● Connect the solar panel System status ● Battery level LED indicator 。Green - The battery power is at full 。Orange - The battery power is half-charged 。Red - The battery power is low... -
Page 4: System Application
System application ● Main power switch 。Main power and system working control 。Main power surge buffer POWER SWITCH ● Main power fuse 。Auto fuse 12 VDC/20A 。If unused for long periods, please FUSE remove the fuse 12VDC/20A ● Solar input 。Solar panels and AC/DC adapter input port 。Rated power input: 16~23 VDC / 90W (MAX) 。Supports the solar panels (option) expansion... - Page 5 ● System status 。Indicates the battery power level and solar charging working status 。Battery level indicator -Green - The battery power is fully charged -Orange - The battery power is half charged -Red - The battery power is low -Red flash - Indicates that the system will trigger the low battery protection mode (The light flashes red for 15 seconds and then the system automatically shuts down) -LED is not lighting - The system fails or won’t start at all.
- Page 6 。USB booster and conversion kits are optional. Supports different types of loads 。Includes overload and reverse polarity protection ● DC jackx4 (5.5*2.1) output: 12 VDC 。Output divided into two loops, each circuit provides 12 VDC / 2A (24W) power 。Supports device charging or loading usage 。Single-port maximum output 12 VDC / 2A (24W) 。Generally used for lighting, radio, PC notebook, fan, media player etc., or for anything that needs a small electrical charge...
-
Page 7: Use Characteristics
Use characteristics ● Portable design for easy carrying ● Ideal solar / AC power adapter ● Low power and high efficiency ● System status indication ● System safety protection ● Loading devices plug and play ● Easy to set up and Maintenance ●...
