Technical Information

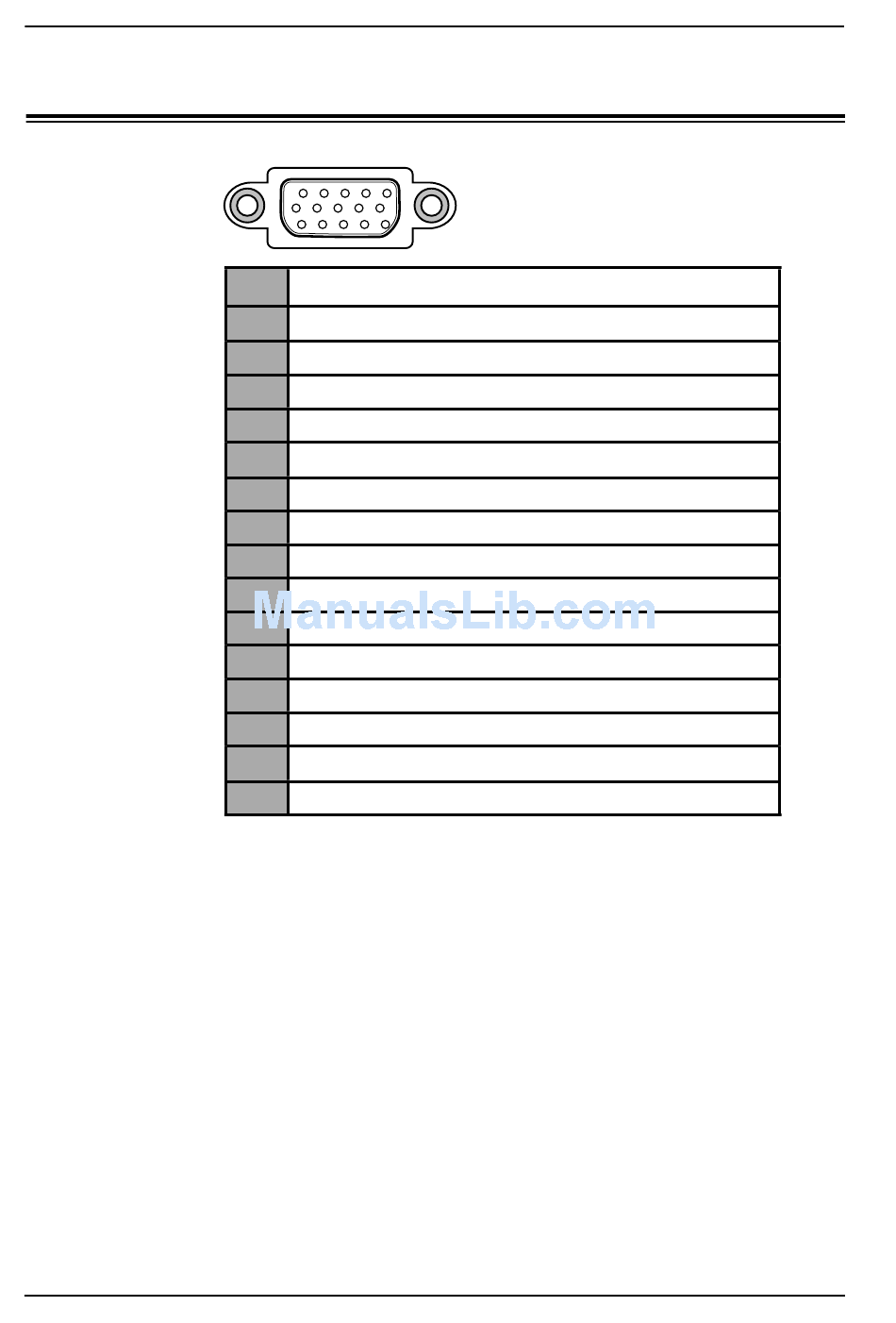

D-SUB Connector PIN Assignment

20
1
5
6
10
11
1
5
PIN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
DESCRIPTION
Red
Green
Blue
Ground
Self Test
Red Ground
Green Ground
Blue Ground
5 VDC
Ground
Ground
SDA (FOR DDC)
H. Sync
V. Sync
SCL (FOR DDC)
