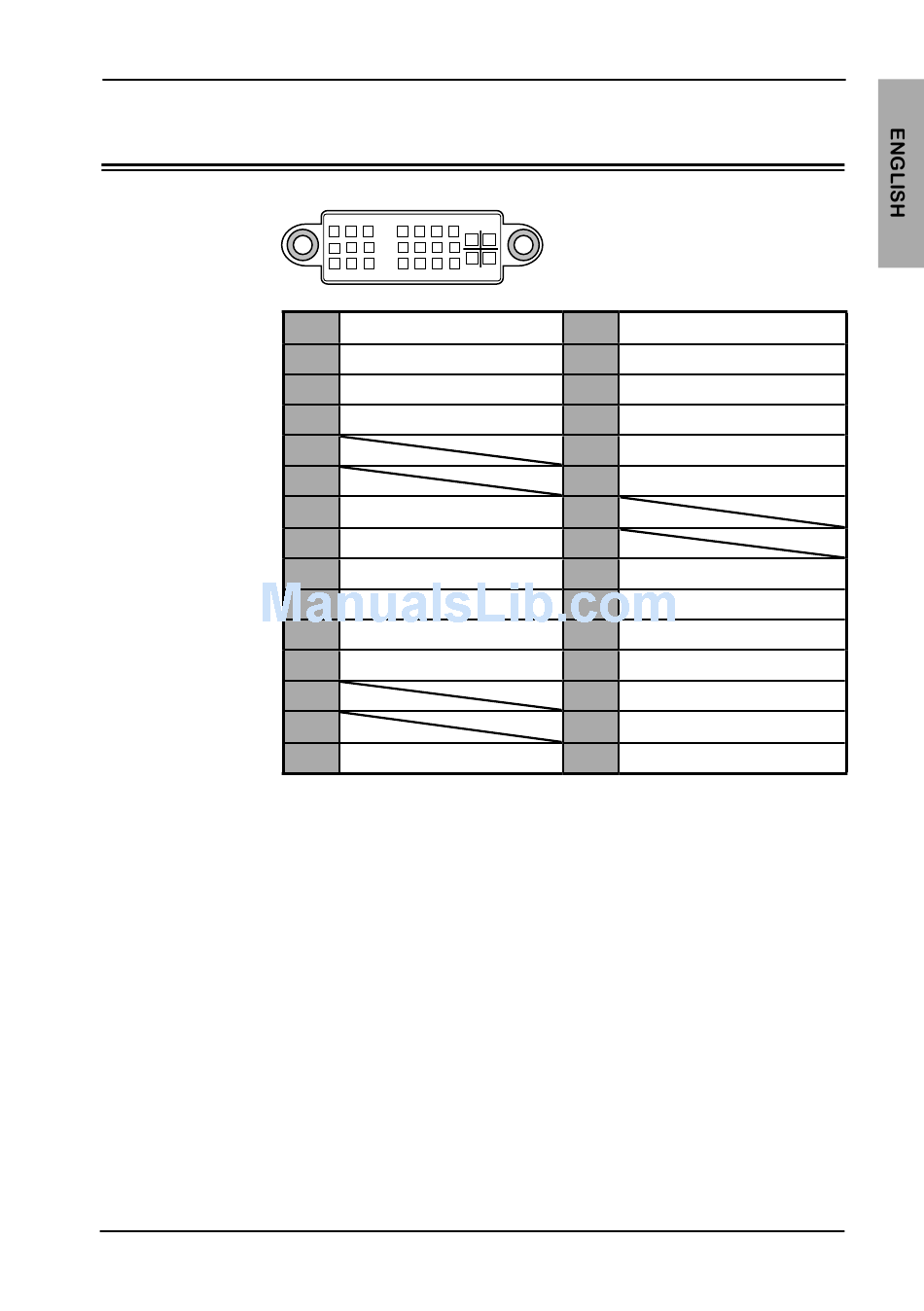

DVI Connector PIN Assignment

Xerox© LCD Monitor User's Manual
1
8
C1 C2
9
16
C3 C4
17
24
PIN
DESCRIPTION
1
TMDS Data 2-
2
TMDS Data 2+
3
TMDS Data 2/4 shield
4
5
6
DDC Clock
7
DDC Data
8
Analog Vertical Sync
9
TMDS Data 1-
10
TMDS Data 1+
11
TMDS Data 1/3 shield
12
13
14
+5V Power
Technical Information
PIN
DESCRIPTION
15
GND
16
Hot Plug Detect
17
TMDS Data 0-
18
TMDS Data 0+
19
TMDS Data 0/5 shield
20
21
22
Clock shield
23
Clock +
24
Clock -
C1
Analog red
C2
Analog green
C3
Analog blue
C4
Analog
