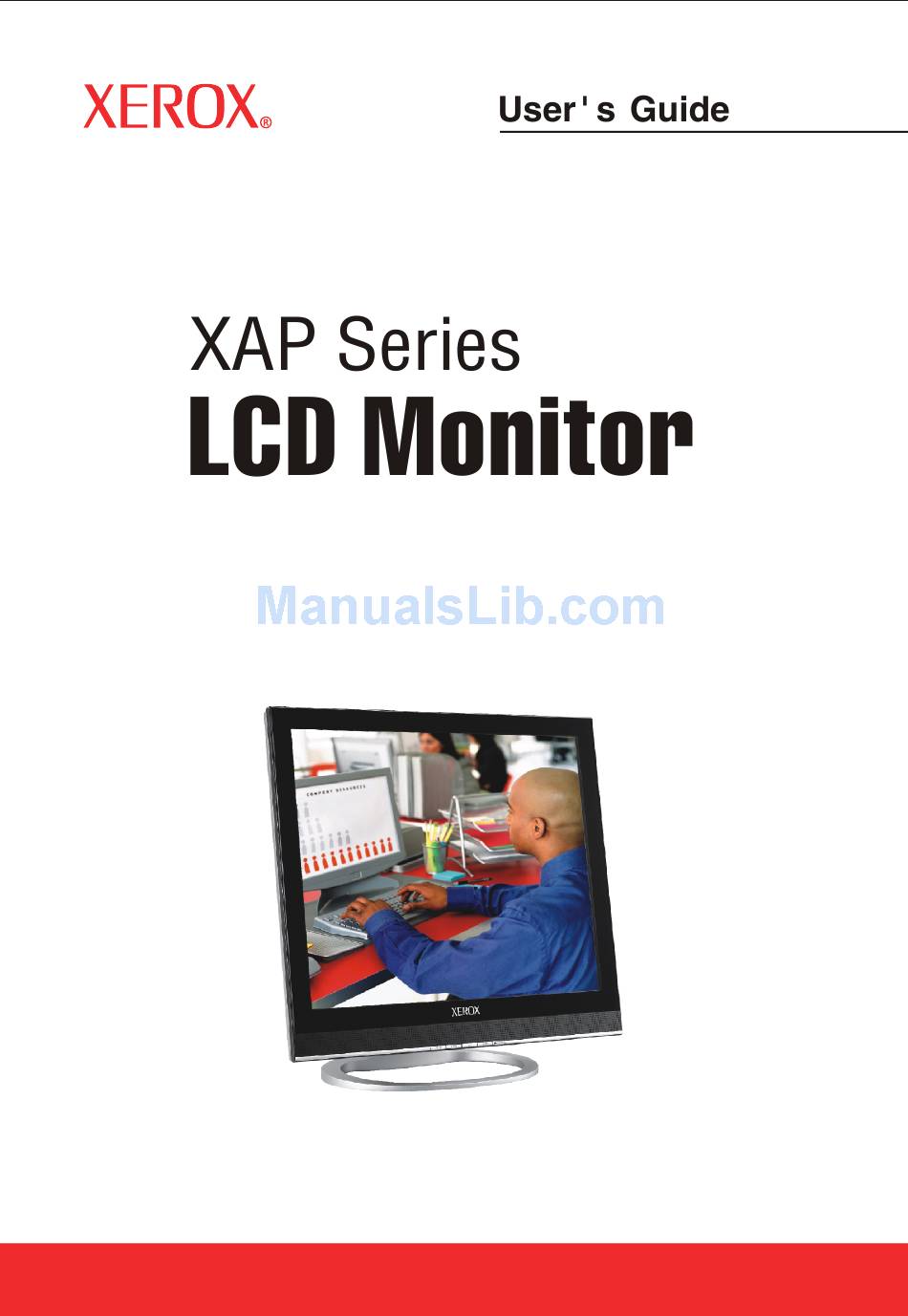

Xerox XAP series User Manual

Xerox lcd monitor user's manual
Hide thumbs

Advertisement

Quick Links

Advertisement

loading

  Related Manuals for Xerox XAP series

  Summary of Contents for Xerox XAP series

  • Page 2 ©2005 by Xerox Corporation. All rights reserved. Copyright protection claimed includes all forms and matters of copyrightable material and information now allowed by statutory judicial law or hereinafter granted, including without limitation, material generated from the software programs which are displayed on the screen such as icons, screen displays, looks, etc.
  • Page 3: Table Of Contents

    CE Marking Declaration Of Conformity ...4 Federal Communications Commission (FCC) Statement ...5 Important Safety Instructions ...6 1 Introduction Features ...9 Package Contents ...10 Front View and Controls ... 11 2 Installation Connecting Your LCD Monitor to a Computer ...12 Method 1: Analog (D-SUB) Connection ...12 Method 2: Digital (DVI) Connection ...14 Using Your LCD Monitor ...16 Installing the Wall Mount (optional) to Your LCD Monitor ...20...
  • Page 4 EUROPE When disposing of Proview products in Europe, please contact one of the following three locations to make arrangements for recycling. Proview International (UK) Limited 30 The Avenue, Watford, Hertfordshire WD17 4AE United Kingdom Timothy Lo Tel: +44 1923-248-111 Fax: +44 1923-248-222 Email: tim.lo@proview.co.uk...
  • Page 5: Ce Marking Declaration Of Conformity

    FCC/CE CE Marking Declaration Of Conformity This LCD monitor complies with the requirements of the EC Directive 89/336/EEC “EMC Directive” and 73/23/EEC “Low Voltage Directive” as amended by Directive 93/68/EEC. The electro-magnetic susceptibility has been chosen at a level that gives correct operation in residential areas, business and light industrial premises and small-scale enterprises, inside as well as outside of the buildings.
  • Page 6: Federal Communications Commission (Fcc) Statement

    Federal Communications Commission (FCC) Statement This equipment has been tested and found to comply with the limits of a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 7: Important Safety Instructions

    Important Safety Instructions To prevent any injuries, the following safety precautions should be observed in the installation, use, servicing and maintenance of this equipment. Before operating this equipment, please read this manual completely, and keep it nearby for future reference. Warnings •...
  • Page 8 • Do not touch the power cord and antenna cable during lightning. • Remove the plug from the wall outlet if the equipment will not be used for a long period of time. • Do not place, use or handle this equipment near water. •...
  • Page 9 • If any of the following conditions occur, unplug the power cord from the outlet and request service from qualified personnel. a. The power cord or plug is damaged. b. Liquid is spilled into the product . c. An object falls onto or into the product. d.
  • Page 10: Introduction

    The XAP series features two built-in 2w stereo speakers integrated into the stylish design. • Professional DVI Input Digital Video Input (DVI) provides precise digital image display, and the XAP series the flexibility to accept both digital or analog signals. Introduction xTraMove...
  • Page 11: Package Contents

    Package Contents Make sure all of the following contents are included in the box. If any items are missing, please return this product to the original place of purchase. CAUTION: Be sure to save original box and all packing material for future transport of monitor.
  • Page 12: Front View And Controls

    Front View and Controls MENU Press once to display the OSD (On Screen Display). And press to activate the items you highlight . DOWN/UP In OSD mode, press the DOWN/UP buttons to move the selection highlight to the next menu item counterclockwise or clockwise, respectively.
  • Page 13: Installation

    2 Installation Refer to the owner’s manual of the computer for connections. In the process of connecting external equipment, do not connect any AC power cords to wall outlets until all other connections are completed. Connecting Your LCD Monitor to a Computer Method 1: Analog (D-SUB) Connection Turn off the computer and unplug the power cable.
  • Page 14 Connect the power cord to wall outlet and LCD monitor. Press the POWER button, located on the bottom side of the main unit to turn the monitor on, then turn the computer on. If the monitor displays an image, the monitor is successfully installed.
  • Page 15: Method 2: Digital (Dvi) Connection

    Method 2: Digital (DVI) Connection Turn off the computer and unplug the power cable. Connect the signal cable (DVI-I) to the DVI port on the back of the computer. Connect the audio cable to the line-in port on the back of the computer.
  • Page 16 If the screen displays “out of range”, please follow the instructions below to set up: • Press the MENU button to display the OSD. • Press the UP or DOWN button to highlight the SELECT) icon, then press the MENU button. The OSD displays: •...
  • Page 17: Using Your Lcd Monitor

    Using Your LCD Monitor In order to ensure a healthy and relaxed body position when using the monitor at visual display workstations, you are able to adjust the monitor’s angle or height of the stand. The angle of the LCD monitor may be adjusted approximately 40 degrees.
  • Page 18 To access the SETTINGS dialog box, go to START>SETTINGS>CONTROL PANEL>DISPLAY. Inside the DISPLAY PROPERTIES window, go to the SETTINGS Tab. If the feature is available, you will find it listed within this dialog box. If you have trouble locating this feature, you might also visit the website of your display driver manufacturer (whose name should be displayed on the DISPLAY PROPERTIES>SETTINGS tab) for technical...
  • Page 19 Installation The height of the LCD monitor’s stand may be adjusted approximately 12cm. Be sure to follow the sequence described below. Step1. First, release the LCD monitor’s stand lock. Use one hand to push the upper end of stand down, while using the other hand to press the stand’s lock button to unlock.
  • Page 20 Step3. Next, adjust the height of the stand’s post Use one hand to press down the upper end of stand to lower the height of the stand’s post, you should feel some resistance to this motion. NOTE: When the stand’s post is moved into lock position, please repeat Step 1 to release.
  • Page 21: Installing The Wall Mount (Optional) To Your Lcd Monitor

    Installing the Wall Mount (optional) to Your LCD Monitor If you wish to lock the LCD monitor on a wall, carefully follow the instructions below. Remove the screws on the back of the stand. Affix the VESA mount to the back of the LCD monitor using the four screws provided in the wall-mount kit.
  • Page 22: Osd Menu

    3 OSD Menu Using the OSD Menu To create the best picture, your XAP series has been preset at the factory with the Preset Mode Timing shown on page 25. The OSD (On Screen Display) Menu allows the user to adjust various settings and options by following the steps below.
  • Page 23: The Osd Options

    The OSD Options The OSD menu includes the following options: Controls the overall brightness. Controls the difference between the brightest and darkest regions of the picture. Adjusts the position of the picture left and right in the window. Adjusts the position of the picture up and down in the window.
  • Page 24 Allows selection of the general color tint: Select User Mode, WARM, or COOL. Allows selection of ANALOG INPUT or DIGITAL INPUT depending on the type of input signal currently in use. Restores all options to the factory settings. Controls which language is used on all the on-screen menus. Xerox©...
  • Page 25 Changes the position of the OSD. Exits the OSD. H. POSITION Moves the OSD left and right in the window. V. POSITION Moves the OSD up and down in the window. EXIT Exits the OSD menu. EXIT Xerox© LCD Monitor User’s Manual...
  • Page 26: Technical Information

    4 Technical Information Preset Mode Timing Chart The screen image has been optimized during manufacture for the display modes listed below. Video signal: (IBM PC/AT) Dot X Line 720 x 400 640 x 480 800 x 600 1024 x 768 1280 x 1024 Xerox©...
  • Page 27: Dvi Connector Pin Assignment

    DVI Connector PIN Assignment C1 C2 C3 C4 DESCRIPTION TMDS Data 2- TMDS Data 2+ TMDS Data 2/4 shield DDC Clock DDC Data Analog Vertical Sync TMDS Data 1- TMDS Data 1+ TMDS Data 1/3 shield +5V Power DESCRIPTION Hot Plug Detect TMDS Data 0- TMDS Data 0+ TMDS Data 0/5 shield...
  • Page 28: D-Sub Connector Pin Assignment

    D-SUB Connector PIN Assignment Xerox© LCD Monitor User’s Manual Technical Information DESCRIPTION Green Blue Ground Self Test Red Ground Green Ground Blue Ground 5 VDC Ground Ground SDA (FOR DDC) H. Sync V. Sync SCL (FOR DDC)
  • Page 29: Plug And Play

    Plug and Play This monitor conforms to the VESA DDC (Display Data Channel) standard, which means that when it is used with a DDC compatible video card, the monitor is easier to set up. With VESA DDC 1/2B, when the monitor is turned on, it will automatically notify a windows 9X/2000/XP host computer of its scanning frequencies, capabilities and characteristics.
  • Page 30: Troubleshooting

    Troubleshooting Before consulting service personnel, check the following chart for a possible cause and solution to the trouble you are experiencing. Monitor will not turn on No picture • Make sure the power cord is plugged in. • Check the signal cable connecting the LCD monitor •...
  • Page 31: Specifications

    Specifications MODEL LCD Panel Max. Resolution Speakers Input Connector Power Source Power Consumption Dimension Changes are periodically made to this specifications. Current specifications may also be obtained via the internet, www.xerox-displays.com or www.xerox-displays.info XAP-172i Panel Size 17’ TFT LCD Brightness Contrast Ratio 500:1 Dot Pitch...
  • Page 32: Authorized Service Centers

    Hours: 8AM ~ 6PM - Central Time EUROPE AUTHORIZED SERVICE CENTER CONTACTS: XOAL BVBA RAKETSRAAT 100 B-1130 BRUSSEL BELGIUM E-EMAIL: rma@proview-repair.com http://www.proview-repair.com Hotline: 00800 00 88 77 66 Fax: +32-2-725-2513 Hours: 10AM ~ 12PM and 2PM ~ 5PM Monday through Friday...
