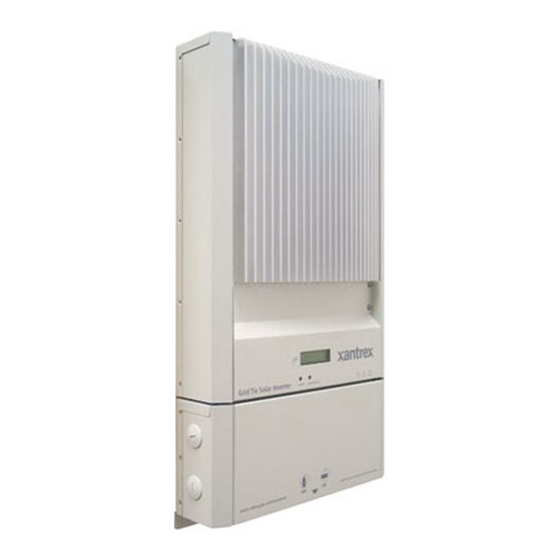

Grid tie solar inverter
Hide thumbs
Table of Contents

Advertisement

Quick Links

GT3.0
Owner's Manual
Xantrex Grid Tie
Solar Inverter

Advertisement

Table of Contents
loading

Related Manuals for Xantrex GT3.0

Summary of Contents for Xantrex GT3.0

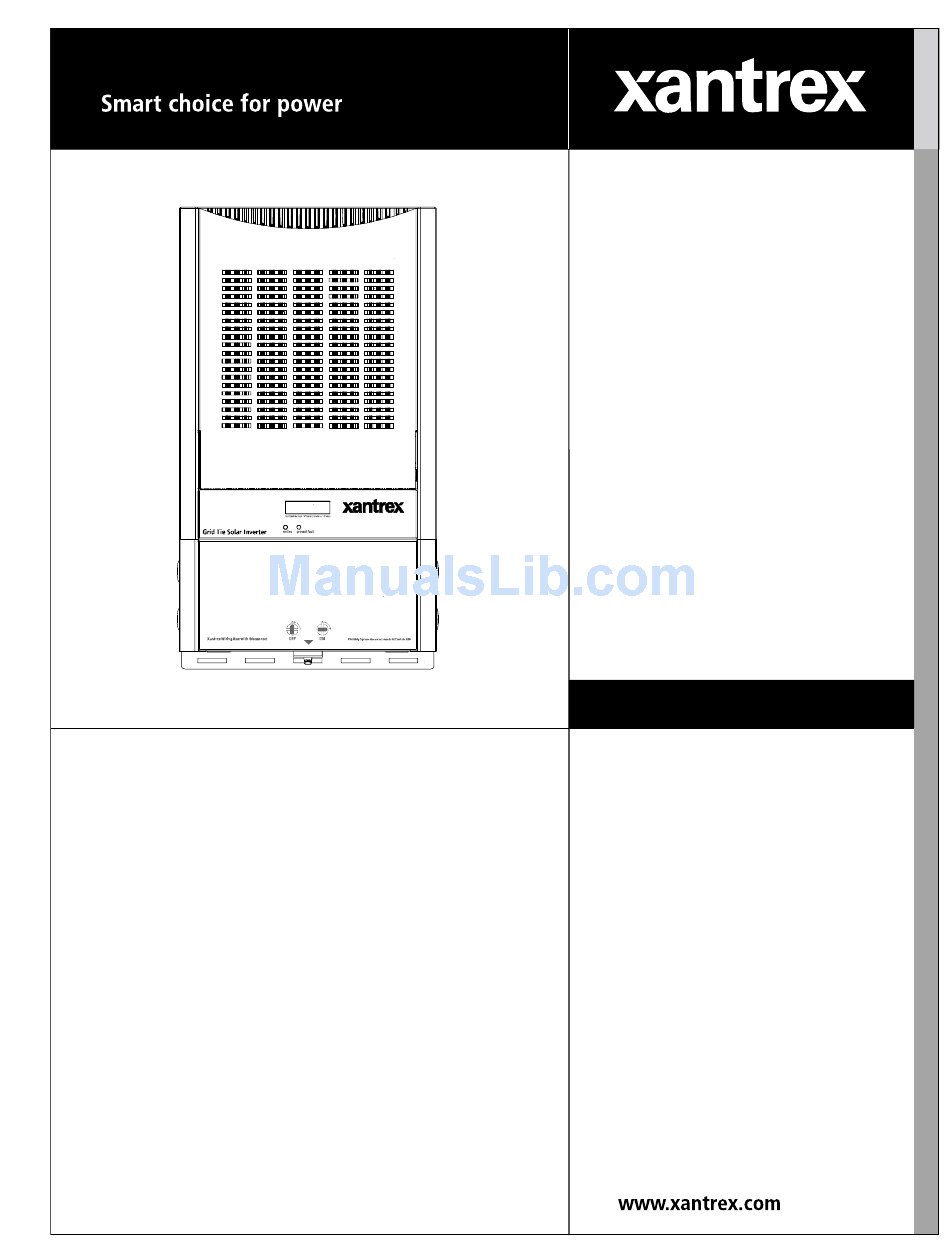

  • Page 1 GT3.0 Owner’s Manual Xantrex Grid Tie Solar Inverter...
  • Page 3 Xantrex Grid Tie Solar Inverter Owner’s Manual...
  • Page 4 About Xantrex Xantrex Technology Inc. is a world-leading supplier of advanced power electronics and controls with products from 50 watt mobile units to one MW utility-scale systems for wind, solar, batteries, fuel cells, microturbines, and backup power applications in both grid-connected and stand-alone systems. Xantrex products include inverters, battery chargers, programmable power supplies, and variable speed drives that convert, supply, control, clean, and distribute electrical power.

  • Page 5: About This Manual

    About This Manual The purpose of this Owner’s Manual is to provide explanations and procedures for installing, operating, maintaining, and troubleshooting the Xantrex Grid Tie Solar Inverter™. Scope The manual provides safety guidelines, detailed planning and setup information. It provides procedures for installing the inverter and information about operating and troubleshooting the unit.

  • Page 6: Conventions Used

    About This Manual Conventions Used The following conventions are used in this guide. WARNING Warnings identify conditions that could result in personal injury or loss of life. CAUTION Cautions identify conditions or practices that could result in damage to the unit or other equipment.

  • Page 7: Related Information

    Related Information You can find more information about Xantrex Technology Inc. as well as its products and services at www.xantrex.com Other useful documentation on photovoltaic systems includes: • “A Guide to Photovoltaic (PV) System Design and Installation”, California Energy Commission (CEC), publication #500-01-020, June 2001 (available at www.energy.ca.gov).

  • Page 9: Important Safety Instructions

    Important Safety Instructions SAVE THESE INSTRUCTIONS—This manual contains important instructions that shall be followed during the installation and maintenance of the Xantrex Grid Tie Solar Inverter. 1. Before installing and using the GT Inverter, read all instructions and cautionary markings on the inverter, wiring box, and all appropriate sections of this guide.

  • Page 10: Regulatory Compliance

    Safety Regulatory Compliance The GT Inverter has complete on-board over-current, over-temperature and anti-islanding protection, and meets U.S., Canadian and international safety operating standards and code requirements: • UL 1741 – Standard for Inverters, Converters, and Controllers for Use in Independent Power Systems •...

  • Page 11: Verification And Commissioning Test

    No changes to these settings can be made in the field by the user. Only authorized personnel with the utility’s permission may change these settings. Contact Xantrex Technology to gain permission and the procedure/equipment to make these changes.

  • Page 13: Table Of Contents

    Contents Important Safety Instructions Regulatory Compliance - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - viii FCC Information to the User - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - viii Verification and Commissioning Test - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ix 1 Introduction...
  • Page 14 Contents 3 Wiring the Inverter Accessing the Wiring Terminals - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3–2 Connecting the DC Wiring- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3–4 Connecting the AC Wiring- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3–7 Connecting Inverters in Parallel - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3–10...
  • Page 15 A Specifications Electrical Specifications - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - A–2 Input - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -A–2 Output - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -A–2 Adjustable disconnect settings - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -A–3...
  • Page 17 Figures Figure 1-1 Basic System Overview - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–2 Figure 1-2 Main Features of the GT Inverter- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–4 Figure 1-3...
  • Page 19 Tables Table 1-1 GT Inverter Models - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–8 Table 2-1 MPPT Operational Window - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2–6 Table 2-2...
  • Page 20 xviii...

  • Page 21: Introduction

    Introduction Chapter 1, “Introduction”, contains information about the features and functions of the Xantrex Grid Tie Solar Inverter. The topics in this chapter are organized as follows. “About the Xantrex Grid Tie Solar Inverter”: • • “Removable Components”: • • “Model Configurations”.

  • Page 22: About The Xantrex Grid Tie Solar Inverter

    Introduction About the Xantrex Grid Tie Solar Inverter The Xantrex Grid Tie Solar Inverter (GT Inverter) is designed to convert solar electric (photovoltaic or PV) power into utility-grade electricity that can be used by the home or sold to the local power company. Installing the GT Inverter consists of mounting it to the wall and connecting the DC input to a PV array and the AC output to the utility.

  • Page 23: Standard Features

    PV compatibility The GT Inverter is designed to take advantage of solar modules configured as high voltage PV string arrays—single crystalline, poly crystalline, or thin film—with a 195 to 550 Vdc input voltage Maximum Power Point range. Maximum Power The GT Inverter uses Xantrex proprietary Maximum Power Point Tracking Point Tracking (MPPT) technology to harvest the maximum amount of energy from the solar (MPPT)

  • Page 24: Optional Features

    GT Fan Kit (Xantrex part # 864-0201) includes: • Heat sink cover • Fan assembly. Figure 1-2 Main Features of the GT Inverter 1–4 Xantrex GT3.0 Inverter Heat Sink Optional Heat Sink cover LED Indicator Lights Wiring Box AC/DC Disconnect Switch Mounting Slots...

  • Page 25: Safety And Standards

    Safety and Standards Meets standards and The GT Inverter has complete on-board over-current, over-temperature and anti- requirements islanding protection, and meets U.S., Canadian and international safety operating standards and code requirements: • UL 1741 – Standard for Inverters, Converters, and Controllers for Use in Independent Power Systems •...

  • Page 26: Removable Components

    Introduction Removable Components The wiring box is standard for all North American models of the GT Inverter. Some European models are available without the wiring box. See “Model Configurations” on page 1–8 for specific details. The heat sink cover and fan assembly are available in the optional Fan Kit.

  • Page 27: Optional Heat Sink Cover And Fan

    Optional Heat Sink Cover and Fan In areas where high ambient temperatures (>45 (such a south-facing installation), a heat sink cover and fan assembly (GT Fan Kit, Xantrex part # 864-0201) can be added to the front of the unit. The fan assembly provides forced-air ventilation directly over the heat sink.

  • Page 28: Model Configurations

    Table 1-1 shows the different model configurations available. Table 1-1 GT Inverter Models M o d e l N u m b e r GT3.0-NA-bb-208 GT3.0-aa GT3.0-NA-bb-240 1. 208 Vac/60 Hz and 230 Vac/50 Hz models not available at this time 2.

  • Page 29: Installation

    Installation Chapter 2, “Installation”, provides information about planning for and installing the GT Inverter. It contains information to help you plan wire routes, AC and DC connections, and find a suitable location for installation. It also discusses requirements for grounding the GT Inverter and your PV array.

  • Page 30: Installation Options

    Installation Installation Options The GT Inverter may be installed as a single inverter for a single PV array of one or two PV strings, or in a multiple inverter configuration for multiple PV arrays (see Figure 2-1 for diagrams of both options). Single Inverter Installation In this configuration, a single inverter collects the harvested solar energy and routes the power to the main utility service panel to be used by the loads.

  • Page 31: Figure 2-1 Installation Options Overview

    Photovoltaic Panels - PV Array PV String #1 Harvested solar energy PV String #2 PV Array #1 Harvested solar energy Photovoltaic Panels: Multiple PV Arrays Harvested solar energy Grid Tie Inv e rter GT Inverter #1 PV Array #2 Figure 2-1 Installation Options Overview 975-0131-01-01 Single Inverter Installation Xantrex...

  • Page 32: Inverter Location

    Installation Inverter Location WARNING: Burn hazard Do not install in a location where people can accidentally come into contact with the front of the inverter. High temperatures can be present on the face of the inverter, causing a potential burn hazard. In extreme conditions, the GT Inverter chassis can reach temperatures over 70°C (158°F), which can cause skin burns if accidentally touched.

  • Page 33: Pv Array Requirements

    PV Array Requirements WARNING: Shock hazard Whenever a PV array is exposed to sunlight, a shock hazard exists at the output wires or exposed terminals. To reduce the risk of shock during installation, cover the array with an opaque (dark) material before making any connections. General Recommendations It is important that the PV array is installed correctly to the manufacturer’s specifications and to local code requirements.

  • Page 34: Table 2-1 Mppt Operational Window

    Installation Voltage and MPPT Requirements MPPT operational Ensure that the PV array used in the system operates within the MPPT operational window window (Table 2-1). Table 2-1 MPPT Operational Window Voltage < 195 Vdc 195 to 550 Vdc 550 to 600 Vdc >...
  • Page 35 Guidelines for Matching PV Array Size to Xantrex Grid Tie Solar Inverter Input For determining the number of panels required in the PV string (panels connected in series), you must ensure that the following two requirements are met: 1. To avoid damage to the inverter, ensure that the PV array output will never exceed 600 Vdc under any conditions.

  • Page 36: Grounding Requirements

    Installation Grounding Requirements WARNING: Shock hazard The GT Inverter must be grounded by connection to a grounded permanent wiring system. AC Grounding North America The GT Inverter must be connected to a grounded, permanent wiring system. The negative PV conductor must be bonded to the grounding system at only one point in the system, through the internal Ground Fault Detection circuit.

  • Page 37: Figure 2-2 Basic Grounding Overview

    PV Array PV String #1 PV String #2 Figure 2-2 Basic Grounding Overview 975-0131-01-01 Xantrex GT Inverter Wiring Box GND bar AC/DC Disconnect Switch Planning the Installation Main Utility Service Panel NEUTRAL Neutral -to- Ground Bond GROUND Primary Earth Ground 2–9...

  • Page 38: Figure 2-3 Long Distance Grounding Overview

    Installation PV Array PV String #2 Array Earth Ground Distance >30 m (100 ft) (buried wire) Figure 2-3 Long Distance Grounding Overview 2–10 When the distance between the PV Array and the GT Inverter is greater than 30 m (100 ft), the array should have its own earth ground, which should be connected to the Primary Earth Ground by a buried wire.

  • Page 39: Routing The Wires

    PV Array PV String #2 Figure 2-4 Grounding With Extra Lightning Protection Overview Routing the Wires Typical Determine all wire routes to and from the GT Inverter. Typical routing configurations configurations include: • AC wiring from the GT Inverter to the main utility service panel •...

  • Page 40: Figure 2-5 Knockout Locations On Bottom Of Wiring Box

    Installation Conduit Pre-plan the wire and conduit runs. Knockouts for 1.9 cm (3/4 inch) or 2.5 cm (1 inch) conduit holes are located on the bottom and back of the wiring box. holes/knockouts Threaded 3/4” conduit holes are located on each side of the wiring box (Figure 2-5).

  • Page 41: Preparing For The Installation

    Preparing for the Installation Ensure your local utility is consulted for any requirements for connecting to or returning power to the grid. Obtain all permits necessary to complete the installation. Consult your local/national electrical code for more information. This section includes the following topics: •...

  • Page 42: Other Materials Needed

    Installation AC/DC Disconnect Switch The wiring box includes a PV/Utility disconnect switch that switches both AC and DC at the same time. If the inverter is to be installed without the integral Xantrex Wiring Box with Disconnect (Xantrex Part # 100-0243-01-01), separate approved AC and DC disconnects may be required by local authorities having jurisdiction.

  • Page 43: Mounting The Inverter

    Mounting the Inverter Overview WARNING: Fire, Shock and Energy Hazards Before installing the GT Inverter, read all instructions and cautionary markings located in this manual, on the PV array, and on the main service panel. General installation There are four main steps in the installation of the GT Inverter: steps 1.

  • Page 44: Preparing To Mount The Unit

    Installation In this chapter only the first step, mounting the inverter and installing accessories, is described. Mounting steps Instructions for mounting the GT Inverter are described in the following sections: • “Preparing to Mount the Unit” on page 2–16 • “Installing the Mounting Bracket”...

  • Page 45: Installing The Mounting Bracket

    Side view 14.6 cm 5.7" 2 cm (3/4") conduit holes with threaded caps, on both sides Dual 2 cm or 2.5 cm (3/4" or 1") knockouts, back and bottom 5.8 cm 2.278" Figure 2-7 Dimensions of GT Inverter and Knockout Locations Installing the Mounting Bracket The mounting bracket for the GT Inverter allows the unit to be easily mounted and dismounted for servicing.

  • Page 46: Figure 2-8 Mounting Bracket And Gt Inverter

    Installation Mounting bracket Rectangular slots × 25: 8 mm × 30 mm (5/16" × 1-3/16") Mounting flanges Mounting slots for securing the inverter Figure 2-8 Mounting Bracket and GT Inverter Clearance Requirements For optimal and safe operation, ensure there is adequate clearance around the inverter.
  • Page 47 WARNING: Shock hazard Before drilling holes to mount the GT Inverter, ensure there are no electrical wires or plumbing in this area. WARNING: Personal injury The GT Inverter weighs approximately 20 kg (45 lbs). Always use proper lifting techniques during installation to prevent personal injury. WARNING: Explosion hazard Do not store combustible or flammable materials anywhere near the inverter.

  • Page 48: Figure 2-9 Examples Of Mounting On A Pole Or Rails

    Installation Mounting on Poles or Rails To mount the unit using poles: 1. Ensure that poles or rails are securely assembled in place. If using horizontal rails, three rails are required: two for the mounting bracket and a third for securing the bottom edge of the inverter wiring box (see Figure 2-9).

  • Page 49: Figure 2-10 Installing The Mounting Bracket Using Plywood Support

    Mounting on Wallboard, Siding or Concrete To mount the GT Inverter to wallboard, siding, or concrete: 1. Locate the area where the GT Inverter is to be installed. 2. Install backing support material if required. See Figure 2-10. 110 cm (43") Ground / Floor Single GT Inverter Figure 2-10 Installing the Mounting Bracket using Plywood Support...

  • Page 50: Mounting The Inverter On The Bracket

    Installation Mounting the Inverter on the Bracket Mounting a Single Inverter To mount the inverter on the mounting bracket: 1. Place the GT Inverter’s mounting hooks, located on the back of the enclosure, over the bracket and ensure the inverter is seated properly, as shown in Figure 2-11.

  • Page 51: Installing Accessories

    Mounting Multiple Inverters in Parallel As shown in Figure 2-10, inverters can be mounted side by side on wallboard or a plywood support. A minimum of 30 cm (12 inches) of clearance between the units is recommended. Conduit nipples should be installed on one side of the first inverter before mounting on the bracket.

  • Page 52: Figure 2-12 Attaching The Fan Assembly

    Installation To attach the fan assembly to the inverter: 1. Using a Phillips screwdriver, remove the four panhead screws and washers from the front panel of the inverter (two screws on each side), immediately below the heat sink (see Figure 2-12). 2.

  • Page 53: Figure 2-13 Location Of Fan Connector

    To connect the fan wires: 1. Remove the wiring box cover by removing the two screws on the underside of the wiring box. Removing the wiring box cover will expose the screws that secure the front panel cover. 2. Remove the front panel cover by removing the two screws on the underside of the front panel.
  • Page 54 Installation Installing the Heat Sink Cover You may find it easier to install the heat sink cover before mounting the inverter. If the inverter is already installed and in operation, it is best to perform the following procedures after dark or on an overcast day when the unit is cool. WARNING: Burn hazard Ensure that the inverter and cover are not too hot to hold firmly before installing or removing the heat sink cover.

  • Page 55: Wiring The Inverter

    Wiring the Inverter Chapter 3, “Wiring the Inverter”, provides procedures for making DC and AC wiring connections, and grounding the GT Inverter and the PV array. Instructions for wiring inverters in parallel are also provided. The topics in this chapter are organized as follows: •...

  • Page 56: Accessing The Wiring Terminals

    Wiring the Inverter Accessing the Wiring Terminals You must remove the GT Inverter wiring box cover to access the terminal blocks, ground bar and communications ports (for inverters in parallel). To remove the wiring box cover: 1. Using a Phillips screwdriver, remove the two screws on the bottom side of the wiring box and set in a safe place (see Figure 3-1 for location of screws).

  • Page 57: Figure 3-2 Ac And Dc Terminal Block Location In The Wiring Box

    DC Terminals for connecting PV arrays AC/DC Disconnect Switch Figure 3-2 AC and DC Terminal Block Location in the Wiring Box 975-0131-01-01 Accessing the Wiring Terminals AC Terminals for connecting to main utility service panel 3–3...

  • Page 58: Connecting The Dc Wiring

    Wiring the Inverter Connecting the DC Wiring WARNING: Shock hazard Whenever a PV array is exposed to sunlight, a shock hazard exists at the output wires or exposed terminals. Ensure that the AC/DC Disconnect Switch is set to OFF before commencing any wiring.

  • Page 59: Table 3-1 Torque Values For Wires

    To wire the PV array to GT Inverter: 1. Install DC conduit from the PV string(s) to the GT Inverter wiring box, through one of the knockout holes. 2. Remove the wiring box cover (see page 3–2). 3. Route the wires from the PV string(s) through the conduit and into the wiring box.

  • Page 60: Figure 3-4 Dc Connections For Grounded Pv Array

    Wiring the Inverter Figure 3-4 DC Connections for Grounded PV Array Important: box may be required. This fusing is to be provided by the installer. 3–6 PV String #2 – – Xantrex GT Inverter AC/DC Disconnect Depending upon installation and local codes, fusing and/or a combiner PV Array PV String #1 Wiring Box...

  • Page 61: Connecting The Ac Wiring

    Connecting the AC Wiring WARNING: Shock hazard AC utility wiring to the GT Inverter unit is performed directly at the main breaker panel. This should be done only by a qualified installer or electrician. WARNING: Shock hazard Before wiring the GT Inverter, ensure the main breaker in the primary utility breaker box is switched OFF.
  • Page 62 Wiring the Inverter To wire the main utility service panel to the GT Inverter: 1. Install conduit from the main utility service panel to the wiring box of the GT Inverter. Run the two HOT wires (L1 and L2) and ground wire from the service panel through the conduit and into the inverter wiring box.

  • Page 63: Figure 3-5 Ac Connections From Gt Inverter To Utility Service Panel

    GND bar Figure 3-5 AC Connections from GT Inverter to Utility Service Panel 975-0131-01-01 Xantrex GT Inverter Wiring Box AC/DC Disconnect Switch Connecting the AC Wiring Utility Grid L1 L2 Neutral Utility Meter L1 L2 Neutral Main Utility Service Panel NEUTRAL Neutral -to-...

  • Page 64: Connecting Inverters In Parallel

    Wiring the Inverter Connecting Inverters in Parallel GT Inverters can be connected in a parallel configuration for larger PV array systems. In this configuration, separate solar arrays are required for each GT Inverter unit. The output of each GT Inverter feeds a separate dual-pole 20-Amp circuit breaker (L1 and L2) in the main utility service panel.

  • Page 65: Figure 3-6 Parallel Gt Inverter Dc And Ac Wiring

    Connecting Inverters in Parallel Figure 3-6 Parallel GT Inverter DC and AC Wiring 975-0131-01-01 3–11...

  • Page 66: Communications Wiring For Inverters In Parallel

    Wiring the Inverter Communications Wiring for Inverters in Parallel Communications wiring between GT Inverters mounted in parallel allows information about each inverter and its associated PV array to be communicated between all of the inverters in the system. Information about the entire system can be displayed on any inverter LCD in the system.

  • Page 67: Figure 3-8 Male Network Terminator

    Terminators Male network terminators (Figure 3-8) are required at both ends of the network to ensure the communication signal quality on the network. Figure 3-8 Male Network Terminator GT Inverter Xanbus Two RJ45 ports are provided in the GT Inverter, accessible from the wiring box. Ports See Figure 3-9 for the location of these ports.

  • Page 68: Figure 3-10 Rj45 Connector

    Wiring the Inverter Cabling Requirements CAUTION: Equipment damage Do not use crossover cable in a Xanbus system. The network uses Category 5 (CAT 5) cable, a standard cable available from any computer supply store. The cable consists of eight conductors in four twisted pairs with an RJ45 modular connector wired to the T568A standard.

  • Page 69: Guidelines For Routing The Network Cables

    Purchasing Network Components Consult with your system designer to determine what network components will be needed for your specific installation. Table 3-3 provides a partial list of network components and part numbers. Pre-made cables are available in standard lengths from 3 feet to 75 feet. Call your dealer or visit www.xantrex.com to purchase network components.

  • Page 70: Connect The Communications Cable Between Inverters In Parallel

    Wiring the Inverter Connect the Communications Cable between Inverters in Parallel WARNING: Shock hazard If the inverter is already installed and operational, turn OFF the breaker switches in the main utility service panel and the AC/DC Disconnect switch on the inverter wiring box before performing this procedure.

  • Page 71: Figure 3-11 Communications Wiring For Gt Inverters In Parallel

    – Xantrex GT Inverter #1 Male Terminator GND bar Figure 3-11 Communications Wiring for GT Inverters in Parallel 975-0131-01-01 Communications Wiring for Inverters in Parallel PV Array #2 – Communications cable in separate conduit from AC and DC wiring. Wiring Box AC/DC Disconnect Switch PV Array #1...
  • Page 72 3–18...

  • Page 73: Starting The Inverter

    Starting the Inverter Chapter 4, “Starting the Inverter”, contains information on starting up the Xantrex Grid Tie Solar Inverter and performing a Functional Test. The topics in this chapter are organized as follows: • “Startup Procedure” on page 4–2 • “Replacing the Wiring Box Cover” on page 4–3.

  • Page 74: Startup Procedure

    Starting the Inverter Startup Procedure Starting up the GT Inverter requires several steps. You will need to: 1. Ensure the AC/DC Disconnect switch located on the bottom of the GT Inverter unit is in the OFF position (see Figure 4-1). 2.

  • Page 75: Replacing The Wiring Box Cover

    Replacing the Wiring Box Cover After performing the voltage checks, replace all covers that were removed during installation and startup. WARNING: Shock hazard Before reattaching covers, turn OFF the breaker switches in the main utility service panel and the AC/DC Disconnect switch on the GT Inverter. If the front panel cover was removed from the GT Inverter, then it must be replaced before the wiring box cover is replaced.

  • Page 76: Starting Up The Gt Inverter

    Starting the Inverter Starting up the GT Inverter To start up the inverter: 1. Switch the AC/DC Disconnect switch to the ON position (see Figure 4-1). 2. Check the GT Inverter LCD. The startup screens (see Table 5-1 on page 5–3) should appear for five seconds each, and then the “Reconnecting in sss seconds”...

  • Page 77: Monitoring The Inverter

    Monitoring the Inverter Chapter 5, “Monitoring the Inverter”, contains information for understanding the LCD screens and the LED indicators. The topics in this chapter are organized as follows: • “Monitoring the Front Panel Display” on page 5–2 • “Front Panel Display Screens and What They Mean” on page 5–3 •...

  • Page 78: Monitoring The Front Panel Display

    Monitoring the Inverter Monitoring the Front Panel Display During startup During startup, the inverter’s front panel LCD (see Figure 5-1) shows the first three screens described in Table 5-1, “Startup Screens on GT Inverter Front Panel Display” on page 5–3. During waiting When the five-minute, five-second (305 seconds) protection timer begins, the period...

  • Page 79: Front Panel Display Screens And What They Mean

    Front Panel Display Screens and What They Mean The front panel display shows different message screens during different modes of operation (Startup, Normal, Offline, and Fault). All single units display a basic set of message screens; multiple unit systems display additional screens in Normal Operation and Offline modes.

  • Page 80: Table 5-2 Normal Operation Default Screen

    Monitoring the Inverter Table 5-2 Normal Operation Default Screen S y s t e m 2 0 0 0 W T o d a y 9 . 8 7 5 k W h If there is sufficient energy from the PV array, this screen is displayed continuously while the system is operating normally.

  • Page 81: Offline Mode

    * In a multiple unit system with communications cables properly installed, the Additional In addition, to the normal system message screens, additional screens specific to messages for each GT Inverter unit can be displayed when the unit is networked to other GT multiple unit Inverters.

  • Page 82: Fault Mode

    Monitoring the Inverter These message screens are common to all GT Inverter systems, no matter how many units are installed. If you continue to tap the unit, then the LCD will continue to cycle through all of the available offline mode screens. Table 5-6 Offline Mode Screens for All GT Inverter Units 1st time 2nd time...
  • Page 83 Fault Mode causes These message screens only appear when there is a fault, and then flash alternately with the Inverter Offline default screen (Table 5-5) until the fault is corrected. Table 5-8 Fault Message Screens * It is normal to receive this fault during low light conditions at dawn or dusk. At †...

  • Page 84: Special Screens

    Monitoring the Inverter Additional Fault Additional message screens can be viewed in fault mode by tapping the Xantrex messages for all logo near the LCD. Each additional tap displays the next screen in the order systems shown in Table 5-9. Table 5-9 Additional Fault Mode Screens 1st time 2nd time...

  • Page 85: Custom Screens

    Table 5-10 Special Message Screens Custom Screens Two custom screens are available. The inverter does not display them unless they are configured using a computer connected to the RS-232 port inside the wiring box. If programmed, the custom screens display as the fourth and fifth screens during the startup sequence.

  • Page 86: Figure 5-2 Location Of Status Indicator Lights

    Monitoring the Inverter Table 5-11 Status Indicator LEDs L E D o n Figure 5-2 Location of Status Indicator Lights 5–10 M e a n s Ground fault condition detected. Check for any fault messages on the display (see Table 5-8), and refer also to Table 6-1, “Troubleshooting the GT Inverter”...

  • Page 87: Maintenance And Troubleshooting

    Maintenance and Troubleshooting Chapter 6, “Maintenance and Troubleshooting”, contains information about how to provide general maintenance for the Xantrex Grid Tie Solar Inverter. It also provides information about troubleshooting the unit. The topics in this chapter are organized as follows: •...

  • Page 88: Factors Affecting Gt Inverter Performance

    Maintenance and Troubleshooting Factors Affecting GT Inverter Performance This section describes several factors that will affect the amount of power that a properly installed and operating GT Inverter can produce. PV Array Factors PV array ratings PV arrays are rated at ideal factory conditions, such as specified illumination (1000 W/m which seldom reflect real-world installations.

  • Page 89: Other Factors

    Other Factors Other factors that contribute to system losses are: • Dust or dirt on the array • Fog or smog • Mismatched PV array modules, with slight inconsistencies in performance from one module to another. • Inverter efficiency • Wire losses •...

  • Page 90: Replacing The Ground Fault Protection Fuse

    Maintenance and Troubleshooting Replacing the Ground Fault Protection Fuse WARNING: Shock and fire hazard Fuses should only be replaced by qualified service personnel. For continued protection against risk of fire, replace only with same type and ratings of fuse. WARNING: Shock hazard After disconnecting both AC and DC power from the GT Inverter, wait five minutes before attempting any maintenance or cleaning or working on any circuits connected to the inverter.

  • Page 91: Replacing The Inverter

    Figure 6-1 Location of Fuse, Front Panel Cover Removed Replacing the Inverter You can swap out the inverter and replace it with another GT Inverter, leaving the existing wiring box in place. This means that you do not have to disturb wiring connections in the wiring box.
  • Page 92 Maintenance and Troubleshooting Recommended tools: • Insulated screwdriver • Wire nut for PV NEGATIVE (–) wire • 7 mm socket and small ratchet, or 7 mm open wrench. WARNING: Shock hazard The inverter should only be removed from the wiring box when a replacement inverter is immediately available.

  • Page 93: Figure 6-2 Inverter And Wiring Box Sections

    Figure 6-2 Inverter and Wiring Box Sections To replace the inverter on the wiring box: 1. If it has not already been removed, remove the front panel cover on the inverter now. The wiring box cover should have been removed in the previous procedure.

  • Page 94: Identifying Error/Fault Conditions And Solutions

    Maintenance and Troubleshooting Identifying Error/Fault Conditions and Solutions Most error or fault conditions will be identified by fault message screens on the GT Inverter front panel LCD. These are described in the “Fault Mode” section on page 5–6 of this manual. Most of these fault conditions are self-correcting and require no user action to remedy.

  • Page 95: Specifications

    Specifications Appendix A, “Specifications”, contains information about the electrical and environmental specifications of the Xantrex Grid Tie Solar Inverter. The topics in this appendix are organized as follows: • “Electrical Specifications” on page A–2 • “Environmental Specifications” on page A–5 •...

  • Page 96: Electrical Specifications

    600 Vdc 16.6 A DC 19 A DC Up to 3300 W Short circuit diode GF detection, I > 1 A GT3.0 North American GT3.0 European 3000 W AC 3000 W AC 2500 W AC 2500 W AC 20 A...

  • Page 97: Adjustable Disconnect Settings

    214 Vac 205 Vac 261 Vac 250 Vac 59.4 Hz 47.1 Hz 60.4 Hz 50.9 Hz 305 sec. GT3.0 GRID TIE SOLAR INVERTER Output Power versus Ambient Temperature Ambient Temperature (C) Standard Unit Electrical Specifications Adjustment Range From... To... 180 Vac 269 Vac 46.0 Hz...

  • Page 98: Efficiency

    Specifications Efficiency Maximum efficiency Efficiency at 75% of nominal output power rating Euro efficiency Nighttime tare loss Figure A-2 Typical Efficiency A–4 94.6% 94.5% 93.3% TYPICAL EFFICIENCY [%] at 195VDC, 240VAC, 25C 1000 Output Power (W) 1500 2000 2500 975-0131-01-01 3000...

  • Page 99: Environmental Specifications

    Environmental Specifications Rated operating temperature range Tolerable operating temperature range Storage temperature range Power derating Tolerable relative humidity limit User Display Type Size Backlight Display Accuracy Instantaneous Power Voltage Current System Lifetime energy Mechanical Specifications Outdoor enclosure Inverter dimensions (H × W × D) Shipping dimensions (H ×...

  • Page 100: Accessories

    Specifications Accessories GT Fan Kit (includes fan assembly and heat sink cover) Part number Fan control Fan power consumption (operating) A–6 864-0201 Thermal, activates when the internal surface of the heat sink reaches 60° C (140° F). 3.84 W 975-0131-01-01...

  • Page 101: Warranty And Return Information

    The dated dealer invoice or purchase receipt showing original equipment manufacturer (OEM) status, or • The dated invoice or purchase receipt showing the product exchanged under warranty 975-0131-01-01 This Limited Warranty is provided by Xantrex Technology, Inc. ("Xantrex") In any warranty claim, dated proof of purchase must accompany the WA–1...

  • Page 102: Disclaimer

    Warranty and Return What does this warranty not cover? product or costs related to the removal, installation, or troubleshooting of the customer's electrical systems. This warranty does not apply to and Xantrex will not be responsible for any defect in or damage to: the product if it has been misused, neglected, improperly installed, physically damaged or altered, either inter- nally or externally, or damaged from improper use or use in an unsuitable environment;...

  • Page 103: Return Material Authorization Policy

    Include the following: • The RMA number supplied by Xantrex Technology, Inc. clearly marked on the outside of the box. • A return address where the unit can be shipped. Post office boxes are not acceptable.

  • Page 104: Information About Your System

    Warranty and Return Information About Your System As soon as you open your Xantrex Grid Tie Solar Inverter package, record the following information and be sure to keep your proof of purchase. Model Number _________________________________ Serial Number _________________________________ Purchased From _________________________________ Purchase Date _________________________________...

  • Page 105: Index

    Index abbreviations and acronyms 2–13 AC circuit breaker requirements 2–8 AC grounding requirements A–2 AC output voltage ratings 4–2 AC utility voltage 3–7 AC wiring instructions A–5 acceptable wire sizes 3–2 accessing AC and DC terminals 1–7, A–6 accessories A–3 adjustable disconnect settings 4–2 checking AC utility voltage...
  • Page 106 Index WA–4 serial number 2–16 knockout locations LEDs, status LEDs 2–8 lightning protection 2–8 long-distance grounding 6–3 maintenance, general maximum power point tracking, A–5 mechanical specifications messages, front panel display 1–8 model configurations WA–4 model number mounting bracket 2–17 installing 2–21 on backing support 2–20...
  • Page 107 6–8 do not illuminate 6–8 red LED is on temperature affecting PV array performance range for locating Xantrex GT Inverter 3–3 terminal blocks in wiring box 3–13 terminators, male network A–3 thermal derating chart 3–5 torque values for wires 6–8 troubleshooting the GT Inverter voltmeter measuring PV array DC at startup...
  • Page 108 IX-4...
