  • Page 1 PROFESSIONAL MORTAR GUN SET Model No: CHT733 Part No: 1801733 USER INSTRUCTIONS GC10/12...
  • Page 2 INTRODUCTION Thank you for purchasing this CLARKE product. Please read and follow the instructions carefully. In doing so you will ensure the safety of yourself and others around you, and you can look forward to the product giving you long & satisfactory service.

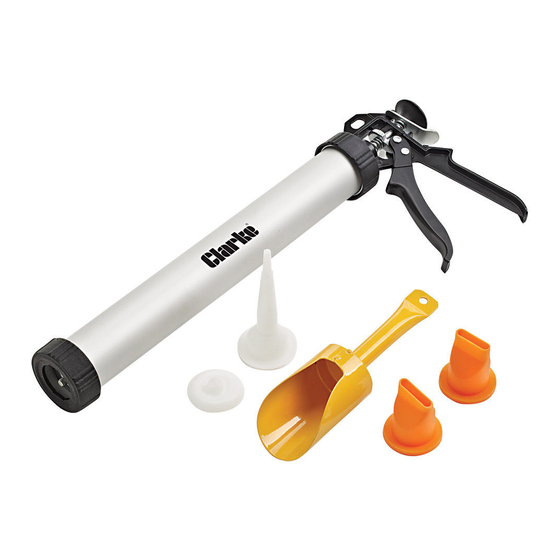

  • Page 3 Aluminium Body with retaining ring The CHT733 Brick Mortar Gun can be used as a mortar or tile grouting gun and can be used for jobs such as re-pointing walls, filling gaps in patio slabs and grouting floor and wall tiles.
  • Page 4 ASSEMBLY For working with mortar mixes, fit a Fig 1 nozzle as follows: 1. Unscrew the end retaining ring from the body of the gun as shown in Fig 1. 2. Insert either a straight or angled Fig 2 nozzle into the opening of the ring.
  • Page 5 Fill the gun with mix as follows: 1. Unscrew the trigger end of the gun from the body and withdraw the trigger assembly and plunger. 2. With the scoop provided, fill the body with the correct mix of mortar to within 3 cm of the top as shown in Fig 5.
  • Page 6 2. For working with patio slabs or floor tiles, use the angled nozzle and hold the mortar gun at 45º to the work as you apply the mix. • To withdraw the plunger, push the Fig 8 trigger plate forward and pull the rod backwards until it is fully retracted as shown in Fig 8.
  • Page 7 6. Screw the plunger end, with nut and metal cup, back onto the plunger. • A spares kit ref CHT734, containing additional nozzles, a scoop and replacement plunger end is available from your Clarke dealer, Part No: 1801734. Parts & Service: 020 8988 7400/E-mail:Parts@clarkeinternational.com or Service@clarkeinternational.com...
