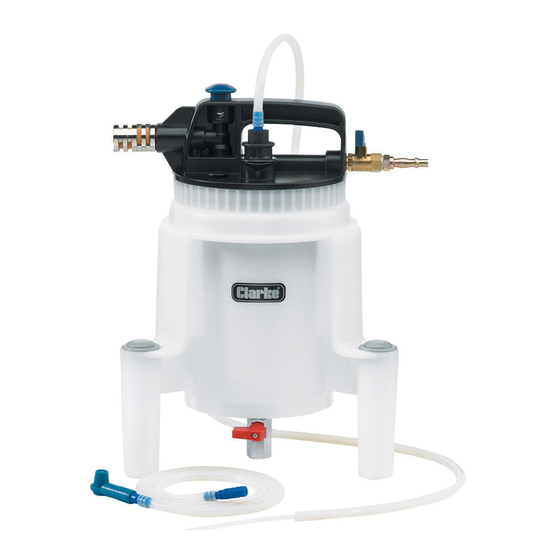

- Page 1 AIR OPERATED CLUTCH & BRAKE BLEEDING KIT MODEL NO: CHT637 Part No: 1801637 OPERATING & MAINTENANCE INSTRUCTIONS GC01/12...
-
Page 2: Introduction
GUARANTEE This CLARKE product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt as proof of purchase. -
Page 3: Table Of Contents
) t i Please note that the details and specifications contained herein, are correct at the time of going to print. However, CLARKE International reserve the right to change specifications at any time without prior notice. Parts & Service: 020 8988 7400/E-mail:Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 4: General Safety Precautions
2. NEVER use this product if any part is damaged. Have it inspected and repaired by your local Clarke dealer. 3. NEVER modify or tamper with this product in any way. Use it only for the purpose for which it is designed. - Page 5 12. ALWAYS comply with all local authority regulations when disposing of any type of used oil. 13. ALWAYS have the unit repaired by your local CLARKE dealer, using only identical replacement parts. This will ensure the safety of the unit is maintained.
-
Page 6: Equipment Components
EQUIPMENT COMPONENTS Parts & Service: 020 8988 7400/E-mail:Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 7: Principle Of Operation
PRINCIPAL OF OPERATION The Clarke clutch & brake bleeding kit is designed for one-man operation. It is used to drain brake fluid from a hydraulic system such as the clutch or brake systems on an vehicle. It can also be used to extract a variety of fluids from reservoirs including the master cylinders or those for power steering fluid. - Page 8 5. Connect the Extract Tube (H) to the Fluid Inlet Plug (G) using the adaptor (E) . 6. Insert the free end of the Extract Tube (H) into the master cylinder on the vehicle. 7. Turn the air valve (I) on, if no air flows through the unit then press the Push Button (B) to create the vacuum.
- Page 9 2. Make sure all the bleed screws are clean. 3. Connect compressed air supply to the Air Valve (I). 4. Connect the adaptor (E) of the Bleed Tube (F) to the Fluid Inlet Plug (G). Note: Consult the vehicle manufacturers guidelines for the vacuum bleeding procedure and any specific wheel bleeding sequence.
- Page 10 7. Turn the air valve (I) on, if no air flows through the unit then press the Push Button (B) to create the vacuum. Allow a few seconds for vacuum to build in the bleeder tank before suction occurs. 8. Using a wrench, loosen/open the bleed screw slightly, until you can see fluid draining through the Bleed Tube and into the Tank...
-
Page 11: Troubleshooting
If you are still having difficulties with this product, contact your CLARKE International Service Department on 020-8988-7400. MAINTENANCE No maintenance is required but always drain, wash and clean the unit after each use. -
Page 12: Parts Lists And Diagrams
PARTS LIST - EXTRACTION UNIT & IMPORTANT: The use of parts other than genuine CLARKE replacement parts may result in safety hazards, decreased performance, and will invalidate your warranty. Parts & Service: 020 8988 7400/E-mail:Parts@clarkeinternational.com or Service@clarkeinternational.com... - Page 13 PARTS DIAGRAM - EXTRACTION UNIT Parts & Service: 020 8988 7400/E-mail:Parts@clarkeinternational.com or Service@clarkeinternational.com...
- Page 14 PARTS LIST- REFILLING BOTTLE Parts & Service: 020 8988 7400/E-mail:Parts@clarkeinternational.com or Service@clarkeinternational.com...
- Page 15 PARTS DIAGRAM - REFILLING BOTTLE Parts & Service: 020 8988 7400/E-mail:Parts@clarkeinternational.com or Service@clarkeinternational.com...
