STOCKHOLM COFFEE TABLE
ASSEMBLY INSTRUCTIONS

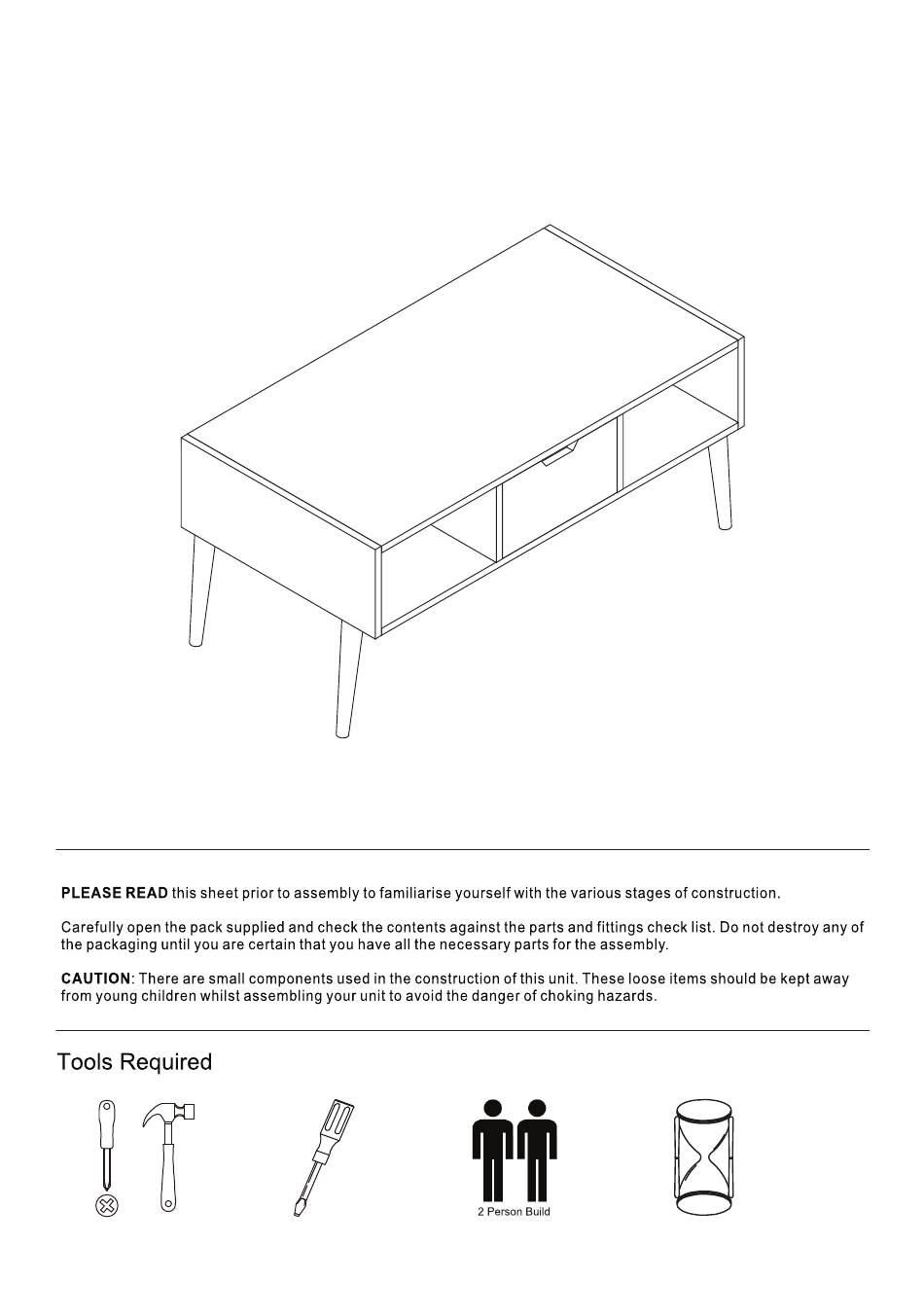

Thank you for purchasing the STOCKHOLM COFFEE TABLE. Please read the
instructions carefully to ensure safe operation of the product.
Size: W104.0 x D50.0 x H42.5cm
COLOUR: WHITE & OAK
Batch No.WMI16579(PO#2653)
Page 1 of 13
1 Hour
Set Up
