STOCKHOLM 1 DRAWER NIGHTSTAND
ASSEMBLY INSTRUCTIONS

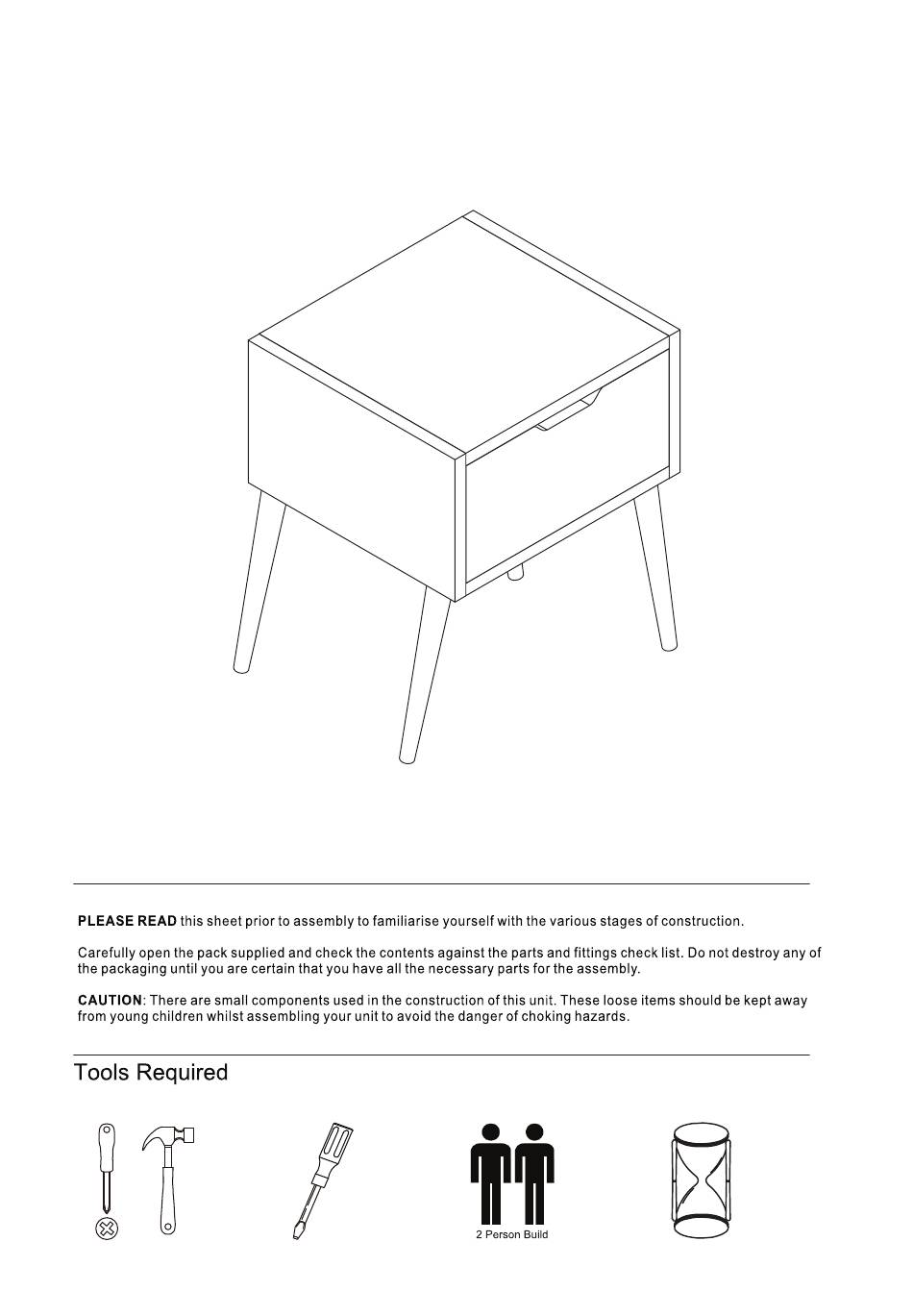

Thank you for purchasing the STOCKHOLM 1 DRAWER NIGHTSTAND. Please read the
instructions carefully to ensure safe operation of the product.
Size: W29.5 x D29.5 x H32.3cm
COLOUR: WHITE & OAK
Batch No.WMI16579(PO#2653)
Page 1 of 12
30Mins
Set Up

Advertisement

loading
Need help?

Need help?

Do you have a question about the STOCKHOLM 1 DRAWER NIGHTSTAND and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for GFW STOCKHOLM 1 DRAWER NIGHTSTAND

  • Page 1 STOCKHOLM 1 DRAWER NIGHTSTAND ASSEMBLY INSTRUCTIONS Thank you for purchasing the STOCKHOLM 1 DRAWER NIGHTSTAND. Please read the instructions carefully to ensure safe operation of the product. Size: W29.5 x D29.5 x H32.3cm COLOUR: WHITE & OAK 30Mins Set Up Batch No.WMI16579(PO#2653)
  • Page 2: Care Information

    STOCKHOLM 1 DRAWER NIGHTSTAND ASSEMBLY INSTRUCTIONS IMPORTANT - READ CAREFULLY - RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE. INFORMATION This product is intended for a maximum load of 20 kg spread evenly thorough the storage compartments. Do not exceed this weight.
  • Page 3 STOCKHOLM 1 DRAWER NIGHTSTAND ASSEMBLY INSTRUCTIONS Please check the pack contents before assembling this product. If any components are missing, please contact your retailer. The fittings pack contains small items that should be kept away from small children. Batch No.WMI16579(PO#2653)
  • Page 4 STOCKHOLM 1 DRAWER NIGHTSTAND ASSEMBLY INSTRUCTIONS DESCRIPTION:TOP PANEL DESCRIPTION:BOTTOM PANEL DESCRIPTION:LEFT SIDE PANEL QTY:1 PC QTY:1 PC QTY:1 PC DIMENSIONS:295X271X12MM DIMENSIONS:295X271X12MM DIMENSIONS:295X148X12MM DESCRIPTION:RIGHT SIDE PANEL DESCRIPTION:BACK PANEL DESCRIPTION:WOODEN LEG QTY:1 PC QTY:1 PC QTY:4 PCS DIMENSIONS:295X148X12MM DIMENSIONS:285X142X3MM DIMENSIONS:175X35MM DESCRIPTION:DRAWER LEFT SIDE PANEL...
  • Page 5 STOCKHOLM 1 DRAWER NIGHTSTAND ASSEMBLY INSTRUCTIONS FIXINGS (TO SCALE) Dimensions CAM BOLT (6x35mm) CAM LOCK (15x10mm) DOWEL (6X30MM) SCREWS (4x35mm) SCREWS (4x12mm) SCREWS (3.5x12mm) NAIL (1.5x10mm) NOT TO SCALE STICKERS LEG BRACKETS DRAWER BASE RUNNERS CABINET RUNNER CAUTION: There are many small components used in the construction of this product.
  • Page 6 STOCKHOLM 1 DRAWER NIGHTSTAND ASSEMBLY INSTRUCTIONS Layout Parts on Soft Surface Layout all part on a soft surface i.e. Rug,carpet or packaging carton Batch No.WMI16579(PO#2653) Page 6 of 12...
  • Page 7 STOCKHOLM 1 DRAWER NIGHTSTAND ASSEMBLY INSTRUCTIONS 7: DRAWER LEFT SIDE PANEL x 1 8: DRAWER RIGHT SIDE PANEL x 1 9: DRAWER BACK PANEL x 1 10: DRAWER BOTTOM BOTTOM PANEL x 1 D: SCREWS x 4 7: DRAWER LEFT...
  • Page 8 STOCKHOLM 1 DRAWER NIGHTSTAND ASSEMBLY INSTRUCTIONS F: SCREWS x 4 J: DRAWER BASE RUNNERS x 1 3: LEFT SIDE PANEL x 1 4: RIGHT SIDE PANEL x 1 F: SCREWS x 4 K: CABINET RUNNER x 1 Batch No.WMI16579(PO#2653) Page 8 of 12...
  • Page 9 STOCKHOLM 1 DRAWER NIGHTSTAND ASSEMBLY INSTRUCTIONS 1: TOP PANEL x 1 2: BOTTOM PANEL x 1 4: RIGHT SIDE PANEL x1 C: DOWEL x 4 D: SCREWS x 4 3: LEFT SIDE PANEL x1 C: DOWEL x 4 D: SCREWS x 4 Batch No.WMI16579(PO#2653)
  • Page 10 STOCKHOLM 1 DRAWER NIGHTSTAND ASSEMBLY INSTRUCTIONS STEP 7 5: BACK PANEL x1 G: NAIL x 10 STEP 8 E: SCREWS x 20 I: LEG BRACKETS x 4 Batch No.WMI16579(PO#2653) Page 10 of 12...
  • Page 11 STOCKHOLM 1 DRAWER NIGHTSTAND ASSEMBLY INSTRUCTIONS STEP 9 6: WOODEN LEG x 4 STEP 10 H: STICKERS x 8 Batch No.WMI16579(PO#2653) Page 11 of 12...
  • Page 12: Complete Assembly

    STOCKHOLM 1 DRAWER NIGHTSTAND ASSEMBLY INSTRUCTIONS Complete Assembly STOCKHOLM 1 DRAWER NIGHTSTAND Your is now completely assembled. Periodically check to ensure that the components are in their proper position, free from damage. Also, make sure the connectors are tight and secure.
