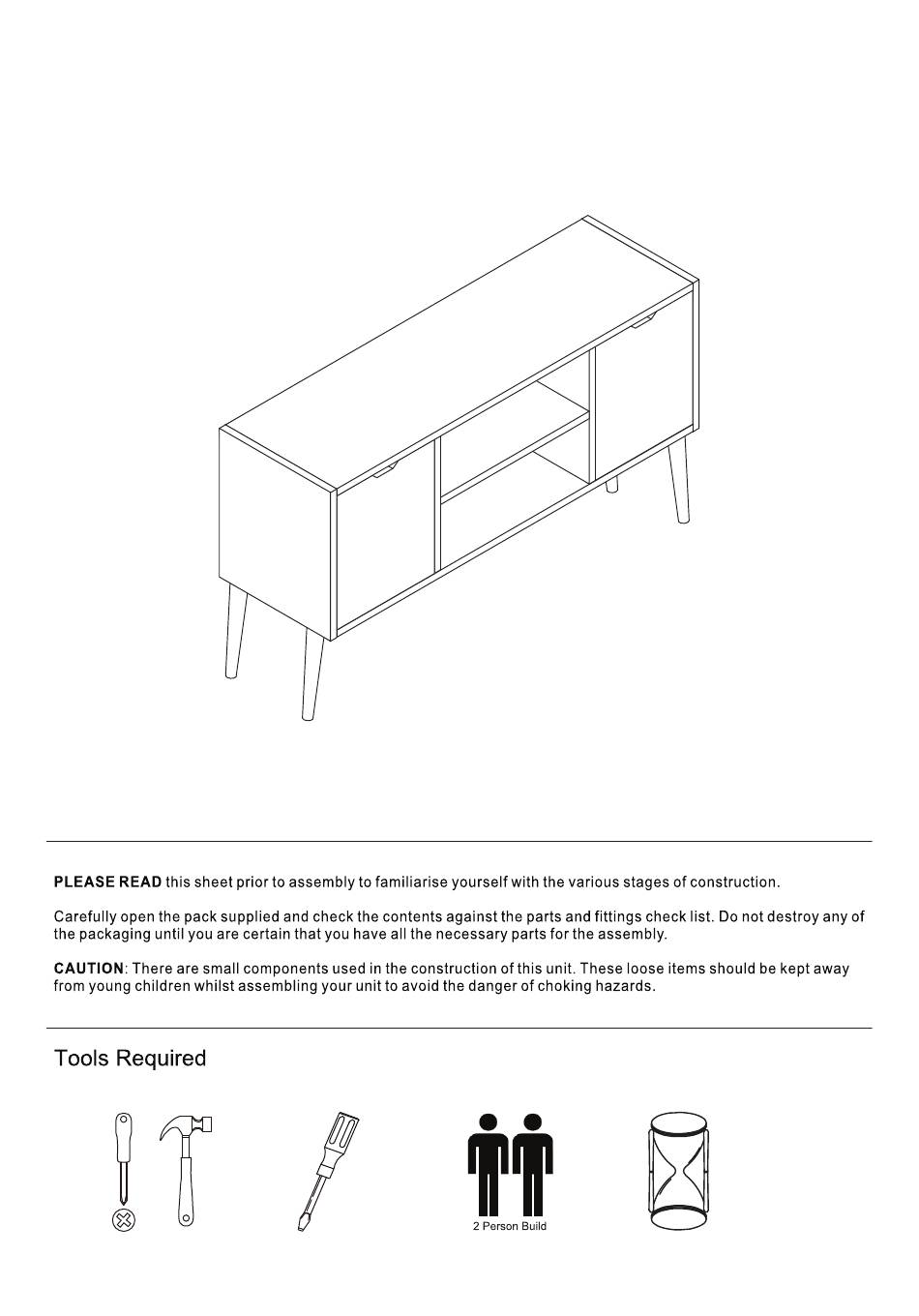

STOCKHOLM TV CABINET
ASSEMBLY INSTRUCTIONS
Thank you for purchasing the STOCKHOLM TV CABINET. Please read the instructions
carefully to ensure safe operation of the product.
Size: W120.0 x D38.0 x H56.5cm
COLOUR: WHITE & OAK
Batch No.WMI16579(PO#2653)
Page 1 of 13
1 Hour
Set Up
Advertisement
Related Manuals for GFW STOCKHOLM TV CABINET
Summary of Contents for GFW STOCKHOLM TV CABINET
- Page 1 STOCKHOLM TV CABINET ASSEMBLY INSTRUCTIONS Thank you for purchasing the STOCKHOLM TV CABINET. Please read the instructions carefully to ensure safe operation of the product. Size: W120.0 x D38.0 x H56.5cm COLOUR: WHITE & OAK 1 Hour Set Up Batch No.WMI16579(PO#2653)
-
Page 2: Care Information
STOCKHOLM TV CABINET ASSEMBLY INSTRUCTIONS IMPORTANT - READ CAREFULLY - RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE. INFORMATION This product is intended for a maximum load of 30 kg spread evenly thorough the storage compartments. Do not exceed this weight. Due to the size of this product we recommend that it is assembled in the room intended for use. - Page 3 STOCKHOLM TV CABINET ASSEMBLY INSTRUCTIONS Please check the pack contents before assembling this product. If any components are missing, please contact your retailer. The fittings pack contains small items that should be kept away from small children. Batch No.WMI16579(PO#2653) Page 3 of 13...
- Page 4 STOCKHOLM TV CABINET ASSEMBLY INSTRUCTIONS DESCRIPTION:TOP PANEL DESCRIPTION:LEFT SIDE PANEL DESCRIPTION:RIGHT SIDE PANEL DESCRIPTION:BOTTOM PANEL QTY:1 PC QTY:1 PC QTY:1 PC QTY:1 PC DIMENSIONS:1170X379X15MM DIMENSIONS:325X380X15MM DIMENSIONS:325X380X15MM DIMENSIONS:1170X379X15MMM DESCRIPTION:LEFT MIDDLE PANEL DESCRIPTION:LEFT BACK PANEL DESCRIPTION:MIDDLE BACK PANEL DESCRIPTION:RIGHT BACK PANEL QTY:1 PC...
- Page 5 STOCKHOLM TV CABINET ASSEMBLY INSTRUCTIONS Dimensions CAM BOLT (6x35mm) CAM LOCK (15x10mm) DOWEL (8X30MM) SCREWS (4x35mm) SCREWS (4x12mm) NAIL (1.5x10mm) NOT TO SCALE STICKERS LEG BRACKETS HINGE DOOR STOPPER CAUTION: There are many small components used in the construction of this product.
- Page 6 STOCKHOLM TV CABINET ASSEMBLY INSTRUCTIONS Layout Parts on Soft Surface Layout all part on a soft surface i.e. Rug,carpet or packaging carton Batch No.WMI16579(PO#2653) Page 6 of 13...
- Page 7 STOCKHOLM TV CABINET ASSEMBLY INSTRUCTIONS STEP 1 TOP PANEL CAM BOLT DOWEL J:DOOR STOPPER X2 STEP 2 BOTTOM PANEL LEFT MIDDLE PANEL RIGHT MIDDLE PANEL CAM BOLT DOWEL Batch No.WMI16579(PO#2653) Page7 of 13...
- Page 8 STOCKHOLM TV CABINET ASSEMBLY INSTRUCTIONS STEP 3 LEFT MIDDLE PANEL RIGHT MIDDLE PANEL SHELF PANEL B:CAM LOCK X4 STEP 4 TOP PANEL BOTTOM PANEL LEFT MIDDLE PANEL RIGHT MIDDLE PANEL SHELF PANEL B:CAM LOCK X8 Batch No.WMI16579(PO#2653) Page 8 of 13...
- Page 9 STOCKHOLM TV CABINET ASSEMBLY INSTRUCTIONS STEP 5 RIGHT SIDE PANEL C:DOWEL X4 D:SCREWS X4 STEP 6 LEFT SIDE PANEL C:DOWEL X4 D:SCREWS X4 Batch No.WMI16579(PO#2653) Page 9 of 13...
- Page 10 STOCKHOLM TV CABINET ASSEMBLY INSTRUCTIONS STEP 7 LEFT BACK PANEL X1 7:MIDDLE BACK PANEL X1 8:RIGHT BACK PANEL X1 NAIL X30 STEP 8 BOTTOM PANEL SCREWS X20 LEG BRACKETS Batch No.WMI16579(PO#2653) Page 10 of 13...
- Page 11 STOCKHOLM TV CABINET ASSEMBLY INSTRUCTIONS STEP 9 13:WOODEN LEGS X4 STEP 10 11:LEFT DOOR PANEL X1 12:RIGHT DOOR PANEL X1 SCREWS X24 HINGE Batch No.WMI16579(PO#2653) Page 11 of 13...
- Page 12 STOCKHOLM TV CABINET ASSEMBLY INSTRUCTIONS STEP 11 STICKERS Batch No.WMI16579(PO#2653) Page 12 of 13...
-
Page 13: Complete Assembly
STOCKHOLM TV CABINET ASSEMBLY INSTRUCTIONS Complete Assembly STOCKHOLM TV CABINET Your is now completely assembled. Periodically check to ensure that the components are in their proper position, free from damage. Also, make sure the connectors are tight and secure. Retain these instructions for future reference.
