red lion ET-18MG-MIL-SS User Manual

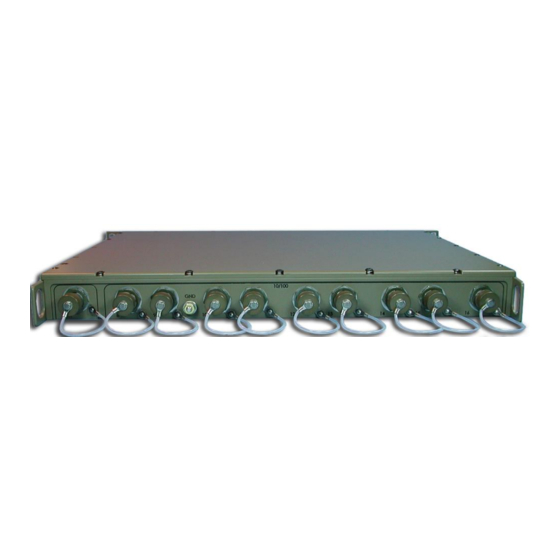

18-port ip67 military ethernet switch
Hide thumbs

Advertisement

Quick Links

Download this manual
Installation and Wiring
Contents at a Glance:
Section 1
General Information
Section 3
Mechanical and Installation
Section 4
Power and Communications
Section 5
Mating Connections
This manual applies to the following products:
ET-18MG-MIL-SS
ET-18MG-MIL_manual.r04.doc
18-Port IP67 Military
Ethernet Switch
Manual
Switch with 16 10/100 ports and 2 Gigabit fiber optic ports
USER MANUAL
Page 1 of 12
Page 3
Page 5
Page 7
Page 12
Last Revised: 17-Dec-13

Advertisement

loading
Need help?

Need help?

Do you have a question about the ET-18MG-MIL-SS and is the answer not in the manual?

Questions and answers

Related Manuals for red lion ET-18MG-MIL-SS

Summary of Contents for red lion ET-18MG-MIL-SS

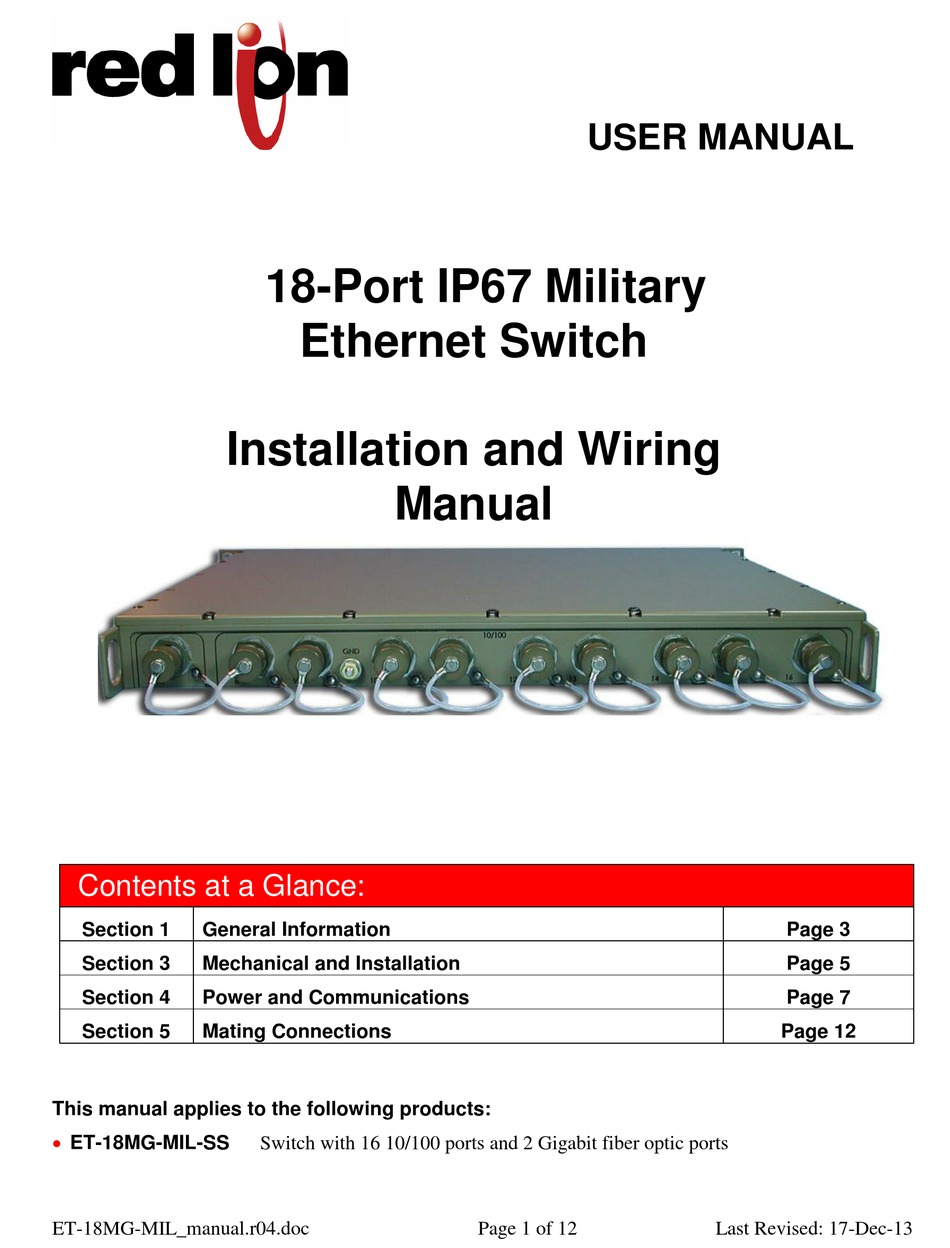

  • Page 1 Section 4 Power and Communications Page 7 Section 5 Mating Connections Page 12 This manual applies to the following products:  ET-18MG-MIL-SS Switch with 16 10/100 ports and 2 Gigabit fiber optic ports ET-18MG-MIL_manual.r04.doc Page 1 of 12 Last Revised: 17-Dec-13...
  • Page 2 Red Lion's liability shall not exceed the price of the individual units, which are the basis of the claim. In no event shall Red Lion be liable for any loss of profits, loss of use of facilities or equipment, or other indirect, incidental or consequential damages.

  • Page 3: General Specifications

    Section 1 General Specifications This manual will help you install and maintain the switch. Installation of these switches Overview will enable the user to manage the network by monitoring/gathering network data, allow for browser or telnet configuration, increase network performance, and much more. Note: This manual only covers the installation and wiring of these switches.
  • Page 4 Military surge protection Exceeds MIL-STD-1275; 100 volts for 1 second Transient protection 15,000 watts peak Spike Protection 5,000 watts (10x for 10 uS) or 250 volts (50x for 100 uS) Truly industrial design Environmental -40 to +75 °C (cold startup at -40 °C) Operating temperature range Storage temperature range -40 to +85 °C...
  • Page 5 Section 2 Mechanical Dimensions and Installation The switch is designed to be mounted into a typical 19” rack. Use the mechanical diagram Overview below as a reference guide when installing the switch. The mounting ears are included and pre-attached to the switch. They may be removed and reversed as desired. Power 17.32"...
  • Page 6 Front View of Switch Back View of Switch Side and Top View of Switch ET-18MG-MIL_manual.r04.doc Page 6 of 12 Last Revised: 17-Dec-13...

  • Page 7: Section 3 Power And Communication Connections

    Section 3 Power and Communication Connections The switch features MIL-DTL-38999 Series III style connectors which meet or exceed the Overview MIL-STD-38999 standard for military connectors. All these connectors have EMI shielding, ESD protection, plus moisture and corrosion resistance. All mating connectors will self-lock with one 360 degree turn of the coupling nut.

  • Page 8: Power Input Receptacle

    The switch requires a positive voltage between 10 and 30 VDC. Make the power Power connections as shown in the diagram below. Connector Power Connector Location ET-18MG-MIL Power Input Receptacle DC Supply Power Pin (male) Connector Pinout Contacts Shell=A (9), Insert=35, Contacts=P, Keying=N (no connection on pins 2, 4, 5 and 6) Recommended Plug: (w/ cadmium plating, socket contacts, Normal keying) Amphenol # D38999/26WA35SN...
  • Page 9 The switch offers a RS232 serial port for accessing the local management interface. Once Console you have made a physical connection refer to the software user manual on how to access Connector the switch via this console port. Console Connector Location Console Port Receptacle Socket...
  • Page 10 The switch has 16 fast (10/100) Ethernet ports. These ports will auto-detect the speed and Ethernet duplex of the connection. Alternatively the ports can be disabled or configured for fixed Connector settings via one of the management interfaces. See the software user manual for details. Ethernet Connector Location...
  • Page 11 For the ET-18MG-MIL-SS the two Gigabit (1000 Mbps) ports are fiber optic. They are Gigabit Fiber singlemode (1310 nm) for connection distances up to 10 km. Connector Ethernet Connector Location Gigabit Fiber Receptacle Socket Ethernet Connector (female) Pinout Contacts Recommended Plug: (w/ cadmium plating, pin contacts, Normal keying)

  • Page 12: Section 4 Service Information

    Section 4 Service Information We sincerely hope that you never experience a problem with any Red Lion product. If you Service do need service, call Red Lion at 877-432-9908. A trained specialist will help you to Information quickly determine the source of the problem. Many problems are easily resolved with a single phone call.
