Ethernet
Industrial
Switch
Installation and Wiring Manual
Contents at a Glance:
Section 1
Section 2
Section 3
Section 4
Section 5
Section 6
This manual applies to the following products:

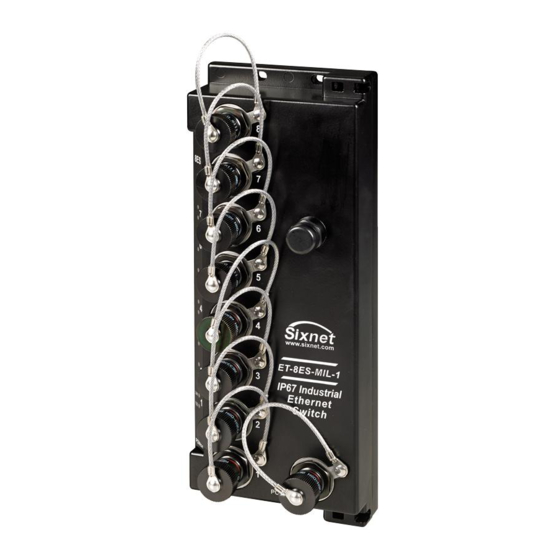

ET-8ES-MIL-1
ET-8MS-MIL-1
ET-8xS-MIL_manual r07.doc
IP67
Fast
8-port unmanaged IP67 Ethernet switch with 8 10/100 ports
8-port managed IP67 Ethernet switch with 8 10/100 ports
USER MANUAL
Page 1 of 9
Page 3
Page 5
Page 6
Page 7
Page 8
Page 9
Last Revised: 16-Jan-14
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for red lion ET-8ES-MIL-1
Summary of Contents for red lion ET-8ES-MIL-1
-
Page 1: Table Of Contents
Page 8 Section 6 Service Information Page 9 This manual applies to the following products: ET-8ES-MIL-1 8-port unmanaged IP67 Ethernet switch with 8 10/100 ports ET-8MS-MIL-1 8-port managed IP67 Ethernet switch with 8 10/100 ports ET-8xS-MIL_manual r07.doc Page 1 of 9... - Page 2 Red Lion's liability shall not exceed the price of the individual units, which are the basis of the claim. In no event shall Red Lion be liable for any loss of profits, loss of use of facilities or equipment, or other indirect, incidental or consequential damages.
-
Page 3: General Specifications
Section 1 General Specifications This manual will help you install and maintain the IP67 Industrial Ethernet Switch. Overview Installation of these switches will enable the user to manage the network by monitoring/gathering network data, allow for browser or telnet configuration, increase network performance, and more. - Page 4 MIL Standard Specification Description Military MIL-STD-810F; 501.4, I; +70°C Transport/Storage High Temperature Standards 501.4, II +65°C operating Compliance MIL-STD-810F; 502.4, I; -20°C Transport/Storage Low Temperature 501.4, II -10°C operation MIL-STD-810F; 507.4 Humidity MIL-STD-810F; 500.4, II 9000 Feet Low pressure operating MIL-STD-810F;...
-
Page 5: Led Indicators
Section 2 LED Indicators The IP67 Industrial Ethernet switches have communication LEDs for each port, an “OK” Overview output LED, a status LED and power LEDs. Refer to the sample pictures below for the location of these LEDs. LED Locations The Status LED indicates the overall health of the switch. -
Page 6: Mechanical Dimensions\Installation
Section 3 Mechanical Dimensions and Installation The IP67 Industrial Ethernet Switch can be mounted either on its edge or flat, as shown Overview below. All LED’s are visible from either mounting position. NOTE: Mounting holes will accept a #12 size screw or smaller. 2.45"... -
Page 7: Power And Communication Wiring
Section 4 Power and Communication Wiring The IP67 Industrial Switches can be powered from the same DC source that is used to Overview power your other devices. 10 to 30 VDC needs to be applied between Pin A and Pin B as shown below. -
Page 8: Mating Connections Wiring
Section 5 Mating Connections Wiring The IP67 Industrial Switches meet or exceed all MIL-STD-38999 Series III for severe Overview environmental applications. All connectors and their mating couplings have EMI shielding and ESD, moisture and corrosion resistance. All mating connectors will self-lock with one 360 degree turn of the coupling nut. -
Page 9: Service Information
Section 6 Service Information Service We sincerely hope that you never experience a problem with any Red Lion product. If you do need service, call Red Lion at 1-877-432-9908 for Technical Support. A trained specialist will Information help you to quickly determine the source of the problem. Many problems are easily resolved with a single phone call.
