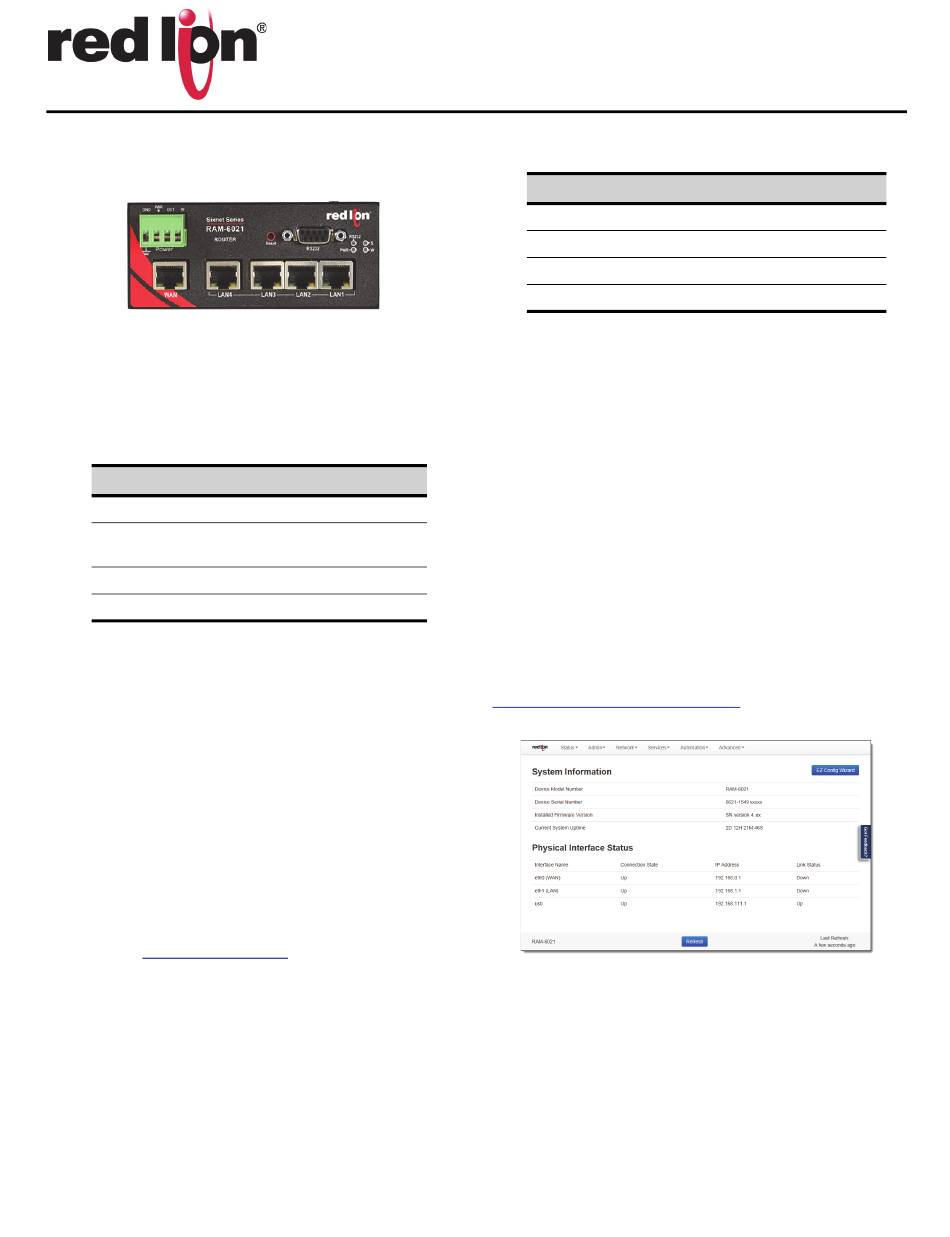

red lion RAM-6021 Quick Start Manual

U I
NPACKING NSTRUCTIONS
1.

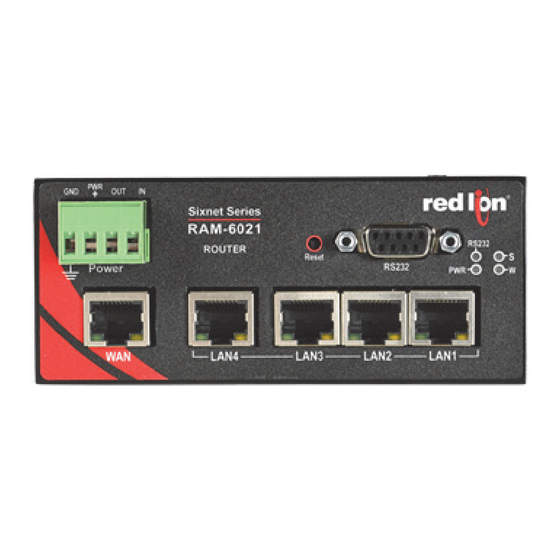

Unpack the Red Lion unit and verify the following compo-
nents are enclosed for the RAM-6021 Router: RAM-6021 &
this quick start guide.
2. There are 2 methods to provide power to the router:
• 4-pin screw terminal
• Side mounted 2.5mm barrel connector
The router requires a power source between 8 and 30 VDC
to operate:
LABEL DESCRIPTION
GND Ground
PWR+ Power 8 to 30 VDC (12 or 24 VDC
nominal)
IN Digital and analog input
OUT Digital output
3. Connect to the WAN or LAN port for network connectivity.
A W U I
CCESSING THE EB SER NTERFACE
1.
Connect the RAM-6021 router to an existing network.
a.
Connect an Ethernet cable between the router and your
local corporate LAN or directly to your PC/Laptop.
b.
Verify the green LED on the Ethernet port is lit.
2. RAM-6021 will obtain its IP address via DHCP if a DHCP
server is present, if not the Ethernet interface will set a static
IP and enable a DHCP server on the interface. If your PC is
connected directly to the Red Lion router it will obtain a local
IP address from the router.
3. Access Web User Interface
Open a web browser and navigate to http://ram-<Last 6 of
Ethernet MAC Address>:
Example: http://ram-6d3f11.local/
A W U I
CCESSING THE EB SER NTERFACE
1.
Connect the PC to the RAM-6021 router.
a.
Connect an Ethernet cable between the local PC and any
available Ethernet port.
2. Setup PC IP Address.
PC to Ethernet Interfaces
CONNECT. MONITOR. CONTROL.
A N
USING UTO ET
(T M )
RADITIONAL ETHOD
© 2014 - 2017 Red Lion Controls. All Rights Reserved
RAM-6021 WIRED ROUTER
Select "Use the following IP address" and fill in the blank
fields with the information below:
WAN/ETH0
IP Address 192.168.0.2
Subnet Mask 255.255.255.0
Default Gateway 192.168.0.1
Preferred DNS 192.168.0.1
3. Access Web User Interface
Open a web browser and enter the following in the address
bar:
• WAN/ETH0: http://192.168.0.1:10000/
• LAN/ETH1: http://192.168.1.1:10000/
L I
OGIN NSTRUCTIONS
• User Name: admin (lowercase letters)
• Password: last six digits of the unit's serial number
Upon successfully logging in, the web UI will launch.
Note: For security purposes, it is recommended that the
admin password be changed according to your internal poli-
cies.
To change password, go to: Admin
If you have any problems getting connected, please refer to the
Red Lion Software Manual located at::
www.redlion.net/sixnet_documentation.
Web UI:
You are now connected to the web interface. If you should
see anything other than the screen shown above, please
refer to the RAM-6021 User Manual, located on our website:
www.redlion.net.
For more information to set up Modbus features, please refer
to the RAM-6021 User Manual.
QUICK START GUIDE
LP1043-A
LAN/ETH1
192.168.1.2
255.255.255.0
192.168.1.1
192.168.1.1
Access Settings.

