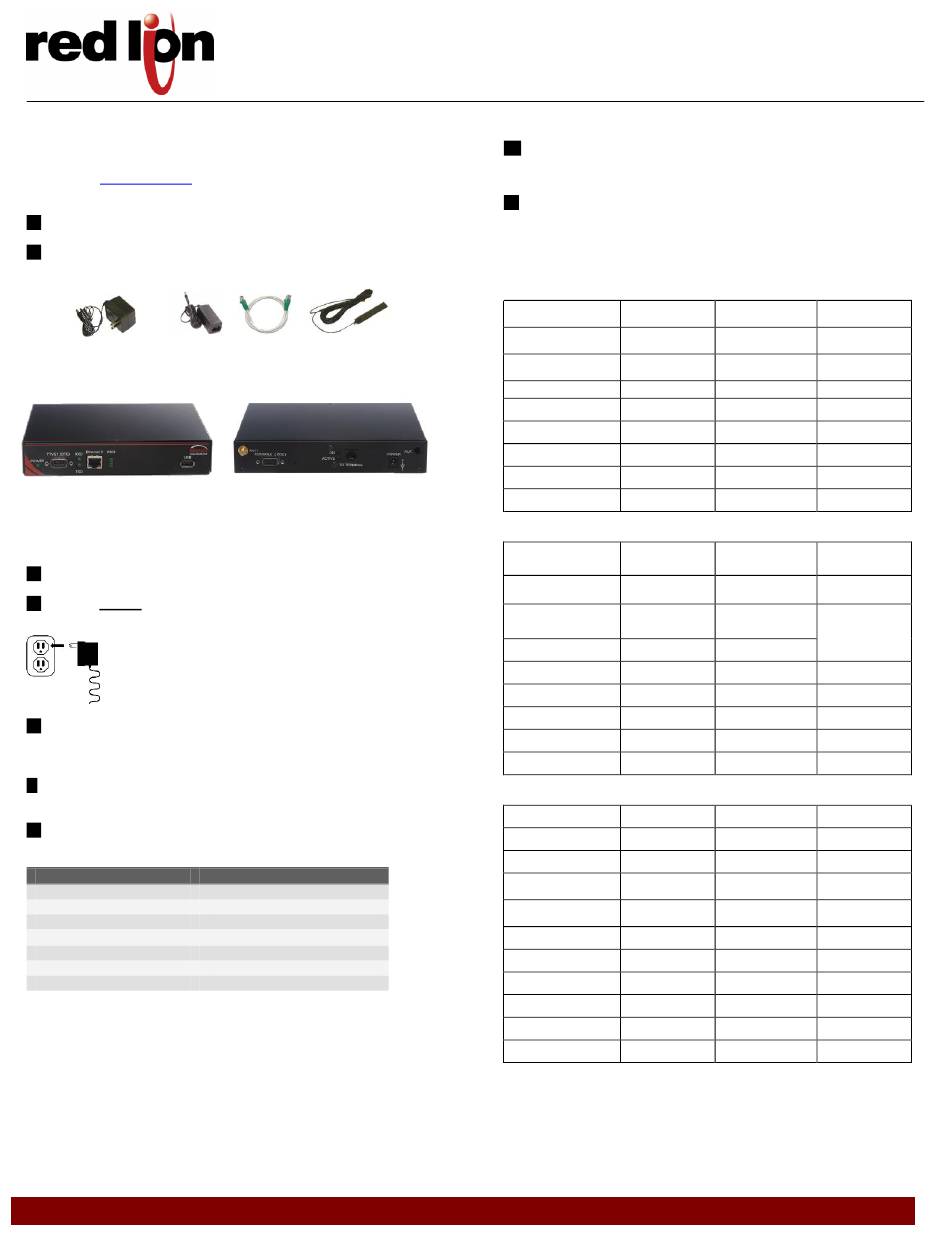

red lion A-2200 Quick Start Manual

Thank you for purchasing an ATM Router. The A-2200 can be used for
IP ATMs over wireless. The A-2201 can be used for both Dial ATMs and
IP ATMs over wireless. For more detailed specs and list of all supported
ATMs go to: www.redlion.net.
UNPACKING INSTRUCTIONS
1 Unpack the A2200/A2201.
1
2 Verify the following components are enclosed (Figure
Figure A: Package contents:
Power Supply
Power Supply
(United States)
(International)
(Front)
Note: Non-US power supplies require customer-supplied power cord to
connect power supply to AC power outlet.
If any items are missing, please contact us at: 800-489-7781.
1 Plug the power supply into the wall outlet.
2 Plug the 12 Volt cable from the power supply into the power port on
the rear of the A2200/A2201.
3 Unpack unit, Uncoil and attach the antenna cable to the screw thread
on the left / back of the unit.
FOR DIAL ATMs
1 Plug the telephone cable from the ATM into the box at the TO
TERMINAL port on the back of the unit.
2 The following table lists the phone number to be dialed by the Dial
ATM to select the Processor.
Dial ATM Phone #
1111
1112
2222
3333
4444
5555
6666
Note: Dial ATMs Baud Rate (modem speed) must be 2400bps.
Most ATMs can accept only four numbers. If ATM must have at least 7
numbers then 999-xxxx can be used. Example: for RBS World Pay:
999-4444.
20 Willow Springs Circle • York, PA 17406 • USA • T +1 717 767 6511 • customer.service@redlion.net
A).
Antenna
Crossover Cable
(Varies)
(RJ45)
(Back)
Processor
CDS Primary
CDS Secondary
Elan
Switch Commerce
RBS World Pay
Metavante
ASAI (Data Stream)
FOR IP ATMs
1 Plug a RJ45 Patch Ethernet cable or a RJ45 Crossover Ethernet
cable between the ATM's Ethernet port and WAN port on the Red Lion
A2200/A2201. (The Wan port on the A2200/A2201 is "auto sensing").
2 Once the A2200/A2201 and the ATM are powered on please be sure
the Yellow and/or Green LED is lit on the A2200/A2201 on the bottom
side of the Ethernet Port.
The following tables are for Triton IP ATMs and Hyosung IP ATMs.
TRITON IP ATM SETUP
Host Processor CDS
Communication
Protocol TCP/IP
Communication Triton Standard
Message Format TCP/IP
Host IP Address 192.168.1.1
Host IP Port 7000/7001
ATM IP Address 192.168.1.2
Subnet Mask 255.255.255.0
Default Router 192.168.1.1
Local Port (Incoming) 1000
TRITON IP ATM SETUP
Data Stream
Host Processor (ASAI)
Communication
Protocol TCP/IP
Communication Triton Standard
Message Format TCP/IP
Host IP Address 192.168.1.1
Host IP Port 7004
ATM IP Address 192.168.1.2
Subnet Mask 255.255.255.0
Default Router 192.168.1.1
Local Port (Incoming) 1000
HYOSUNG IP ATM SETUP
Host Processor CDS
Network Type TCP/IP
TCP/IP Type Defined Standard
CRC Check Mode
(CRC Option) Enable
EOT Customer
Defined EOT Required
SSL Option Disable
Host IP Address 192.168.1.1
Host IP Port 7000/7001
ATM IP Address 192.168.1.2
Subnet Mask 255.255.255.0
Default Router 192.168.1.1

QUICK START GUIDE

ATM Cellular Routers
Models A-2200 and A-2201
Rev 6 – November 12, 2009
Switch
Elan Commerce
TCP/IP TCP/IP
Triton Standard Triton Standard
TCP/IP no CRC TCP/IP no CRC
192.168.1.1 192.168.1.1
7002 7003
192.168.1.2 192.168.1.2
255.255.255.0 255.255.255.0
192.168.1.1 192.168.1.1
1000 1000
RBS World Pay Metavante
TCP/IP TCP/IP
Triton Standard Triton Standard
TCP/IP no CRC TCP/IP no CRC
192.168.1.1 192.168.1.1
449 450
192.168.1.2 192.168.1.2
255.255.255.0 255.255.255.0
192.168.1.1 192.168.1.1
1000 1000
Elan Switch Commerce
TCP/IP TCP/IP
Standard Standard
Disable Disable
EOT Required EOT Required
Disable Disable
192.168.1.1 192.168.1.1
7002 7003
192.168.1.2 192.168.1.2
255.255.255.0 255.255.255.0
192.168.1.1 192.168.1.1
