Summary of Contents for red lion N-Tron 302MC
- Page 1 ® N-Tron Series 300 Series Media Converter & Industrial Ethernet Switches Installation Guide | December 2015...
- Page 2 20 Willow Springs Circle York, PA 17406 All rights reserved. Red Lion, the Red Lion logo and N-Tron are registered trademarks of Red Lion Controls, Inc. All other company and product names are trademarks of their respective owners. CONTACT INFORMATION :...
-
Page 3: Table Of Contents
Table of Contents Revised 2015-12-04 Table of Contents Preface ................iii Disclaimer . - Page 4 Table of Contents Revised 2015-12-04 Vibration ..............1-3 Cold: IEC60068-2-1 .
-
Page 5: Preface
While every effort has been made to ensure that this document is complete and accurate at the time of release, the information that it contains is subject to change. Red Lion Controls is not responsible for any additions to or alterations of the original document. -
Page 6: Environmental Impact Statement
As needed, Documentation Notes and/or Product Bulletins will be provided between major releases to describe any new information or document changes. The latest online version of this document and all product updates can be accessed through the Red Lion web site http://www.redlion.net Publication History The following information lists the release history of this document. -
Page 7: Document Comments
Revised 2015-12-04 www.redlion.net/n-tron_documentation Document Comments Red Lion appreciates all comments that will help us to improve our documentation quality. The user can submit comments through the Red Lion Customer Service. Simply email us at customer.service@redlion.net. Additional Product Information Additional product information can be obtained by contacting the local sales representative or Red Lion through the contact numbers and/or e-mail addresses listed on the inside of the front cover. -
Page 8: Electrical Safety Warnings / Avertissements De Sécurité Électrique
Preface Revised 2015-12-04 Electrical Safety Warnings / Avertissements de sécurité électrique WARNING: Do not work on equipment or cables during periods of lightning activity. AVERTISSEMENT: Ne pas travailler sur le matériel ou les câbles pendant les périodes d'activité de la foudre. WARNING: Properly ground the unit before connecting anything else to the unit. -
Page 9: Hazardous Location Warnings / Les Avertissements D'emplacement Dangereux
Preface Revised 2015-12-04 WARNING: Disconnect the power cable before removing the enclosure top. AVERTISSEMENT: Débranchez le câble d'alimentation avant de retirer le boîtier supérieur. Hazardous Location Warnings / Les avertissements d'emplacement dangereux WARNING: Install only in accordance with Local and National Codes of authorities having jurisdiction. -
Page 10: Laser Safety Waning / Consignes De Sécurité Relatives Au Laser
Preface Revised 2015-12-04 Laser Safety Warning / Consignes de sécurité relatives au laser CAUTION (Only for FXE products): CLASS 1 LASER PRODUCT. Do not stare into the laser. ATTENTION (Uniquement pour les produits FXE): PRODUIT LASER CLASSE 1. Ne pas regarder dans le laser. -
Page 11: Introduction And Specifications

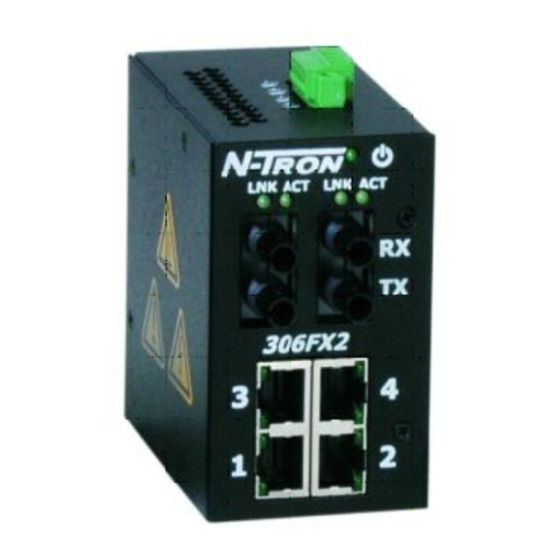

Section 1 Introduction and Specifications Introduction The Red Lion N-Tron® 300 series Unmanaged Industrial Ethernet Switches support high speed layer 2 switching between ports. All 300 series switches are housed in a ruggedized steel enclosure, and provide Category-5 compliant 10/100-BaseT connections for high performance network design, and hub/repeater upgrades. -
Page 12: 300 Series Specifications
Introduction and Specifications Revised 2015-12-04 • Up to 1.8 Gb/s Maximum Throughput • Industry Standard 35mm DIN-Rail Mounted Enclosure 300 Series Specifications Table 1. 300 Series Key Specifications Physical Specifications Model Height Width Depth Weight 302MC 2.97 in (75.56mm) 2.01 in (50.99mm) 3.17 in (80.56mm) 0.75 lbs (0.3 kg) 304TX... -
Page 13: Regulatory Approvals
Introduction and Specifications Revised 2015-12-04 Table 2. [Fiber Transceiver Characteristics Fiber Length 2km* 15km** 40km** 80km** -19dBm -15dBm -5dBm -5dBm TX Power Minimum -31dBm -31dBm -34dBm -34dBm RX Sensitivity Maximum 1310nm 1310nm 1310nm 1550nm Wavelength * = Multimode **= Singlemode Regulatory Approvals Safety Suitable for use in Class I, Division 2, Groups A, B, C and D Hazardous Locations, or Nonhazardous Locations... -
Page 14: Certifications
Introduction and Specifications Revised 2015-12-04 Certifications GOST-R Certified N-Tron® 300 Series Hardware Guide... -
Page 15: Installation
Installation Revised 2015-12-04 Section 2 Installation Introduction This section contains the information and procedures necessary to unpack, inspect, install and connect the N-Tron 300 series models. Unpacking Remove all the equipment from the packaging, and store the packaging in a safe place or dispose according to your standard operating procedure. - Page 16 Installation Revised 2015-12-04 WARNING: Disconnect the power cable before removing the enclosure top. AVERTISSEMENT: Débranchez le câble d'alimentation avant de retirer le boîtier supérieur. WARNING: Do not operate the unit with the top cover removed, as this could create a shock or fire hazard.
-
Page 17: Din-Rail Mounting
Installation Revised 2015-12-04 DIN-Rail Mounting Install the unit in a standard DIN-Rail. Recess the unit to allow at least 5” of horizontal clearance for fiber optic cable bend radius (2” for TX models). To install the unit to 35mm industrial DIN-Rail, To remove the unit from the 35mm industrial DIN- place the top edge of the included mounting Rail, place a flat head screwdriver into the orange... -
Page 18: Connections
Installation Revised 2015-12-04 Connections Power Connection 1. Unscrew & Remove the DC Voltage Input Plug from the top header. 2. Install the DC Power Cables into the Plug (observing polarity on unit). 3. Plug the Voltage Input Plug back into the top header. 4. -
Page 19: Ground Connection
Installation Revised 2015-12-04 Ground Connection 300 Series Grounding Techniques The grounding philosophy of any control system is an integral part of the design. N-Tron 300 series switches are designed to be grounded, but the user has been given the flexibility to float the switch when required. The best noise immunity and emissions (i.e. -
Page 20: Rj45 Connector Crimp Specifications
Installation Revised 2015-12-04 RJ45 Connector Crimp Specifications Please reference the illustration below for the Cat5 cable specifications: Connecting the Unit For 300 series fiber units, remove the dust cap from the fiber optic connectors and connect the fiber optic cables. For Fiber Optic ports, the TX port on the near station should be connected to the RX port of the far end station, and the RX port should be connected to the TX port of the far end station. -
Page 21: Operation And Maintenance
Operation and Maintenance Revised 2015-12-04 Section 3 Operation and Maintenance Introduction This section provides information on the N-Tron 300 series device ports and LED indicators function as well as basic troubleshooting guidelines. 300 Series Ports and Indicators The 300 series ports and LED indicators, and a description of their functions, are identified in the following figure Table Table 3. -
Page 22: 300 Series Led's And Operating Modes
Operation and Maintenance Revised 2015-12-04 300 Series LED’s and Operating Modes The 300 series LED’s and a description of the associated operating mode is presented in Table Table 4. Unit LED’s Color Description Green Power is applied Power is off Green Link between ports established No link between ports... -
Page 23: Limited Warranty
N-Tron® 300 Series Limited Warranty (a) Red Lion Controls Inc., Sixnet Inc., N-Tron Corporation, or Blue Tree Wireless Data, Inc. (the “Company”) war- rants that all Products shall be free from defects in material and workmanship under normal use for the period of time provided in “Statement of Warranty Periods”... - Page 24 Operation and Maintenance Revised 2015-12-04 3-14 N-Tron® 300 Series Hardware Guide...
