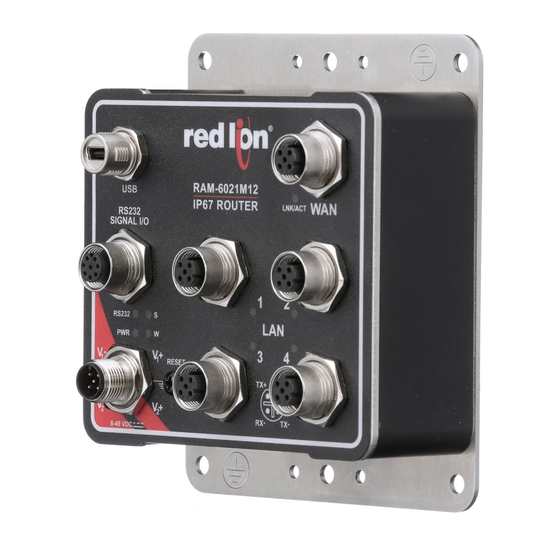

RAM® 6021M12 Router
Accessing the Web User Interface using AutoNet
1.
Connect the RAM-6021M12 router to an existing network.
a.
Connect an Ethernet cable between the router and your
local corporate LAN or directly to your PC/Laptop.
b.
Verify the green LED on the Ethernet port is lit.
2. RAM-6021M12 will obtain its IP address via DHCP if a
DHCP server is present, if not the Ethernet interface will set
a static IP and enable a DHCP server on the interface. If
your PC is connected directly to the Red Lion router it will
obtain a local IP address from the router.
3. Access Web User Interface
Open a web browser and navigate to http://ram-<Last 6 of
Ethernet MAC Address>:
Example: http://ram-6d3f11.local/
Accessing the Web User Interface (Traditional Method)
1.
Connect the PC to the RAM-6021M12 router.
a.
Connect an Ethernet cable between the local PC and any
available Ethernet port.
2. Setup PC IP Address.
PC to Ethernet Interfaces
Select "Use the following IP address" and fill in the blank
fields with the information below:
Item WAN/ETH0
IP Address 192.168.0.2
Subnet Mask 255.255.255.0
Default Gateway 192.168.0.1
Preferred DNS 192.168.0.1
Unpacking Instructions
1.
Unpack the Red Lion unit and verify the following components are enclosed in the package:
•
Quick Start Guide
•
RAM-6021M12 Router
2.
The RAM-6021M12 is powered by two redundant power inputs located on a single 5-pin
M12 A-coded connector.
•
The router requires a power source rated between 8 and 49 VDC
Input Voltage
Steady Input Current
BTU/hr
Inrush Current
3.
Connect to the WAN or LAN port for network connectivity.
LAN/ETH1
192.168.1.2
255.255.255.0
192.168.1.1
192.168.1.1
-1-
Item
Power 8 to 49 VDC
0.15A @ 24VDC
12.25
33.9A/0.0287ms @ 24VDC
3. Access Web User Interface
Open a web browser and enter the following in the address
bar:
• WAN/ETH0: http://192.168.0.1:10000/
• LAN/ETH1: http://192.168.1.1:10000/
Login Instructions
• User Name: admin (lowercase letters)
• Password: last six digits of the unit's serial number
Upon successfully logging in, the web UI will launch.
Note: For security purposes, it is recommended that the
admin password be changed according to your internal
policies.
To change password, go to: Admin
If you have any problems getting connected, please refer to
the Red Lion Software Manual located at:
http://www.redlion.net
Web UI:

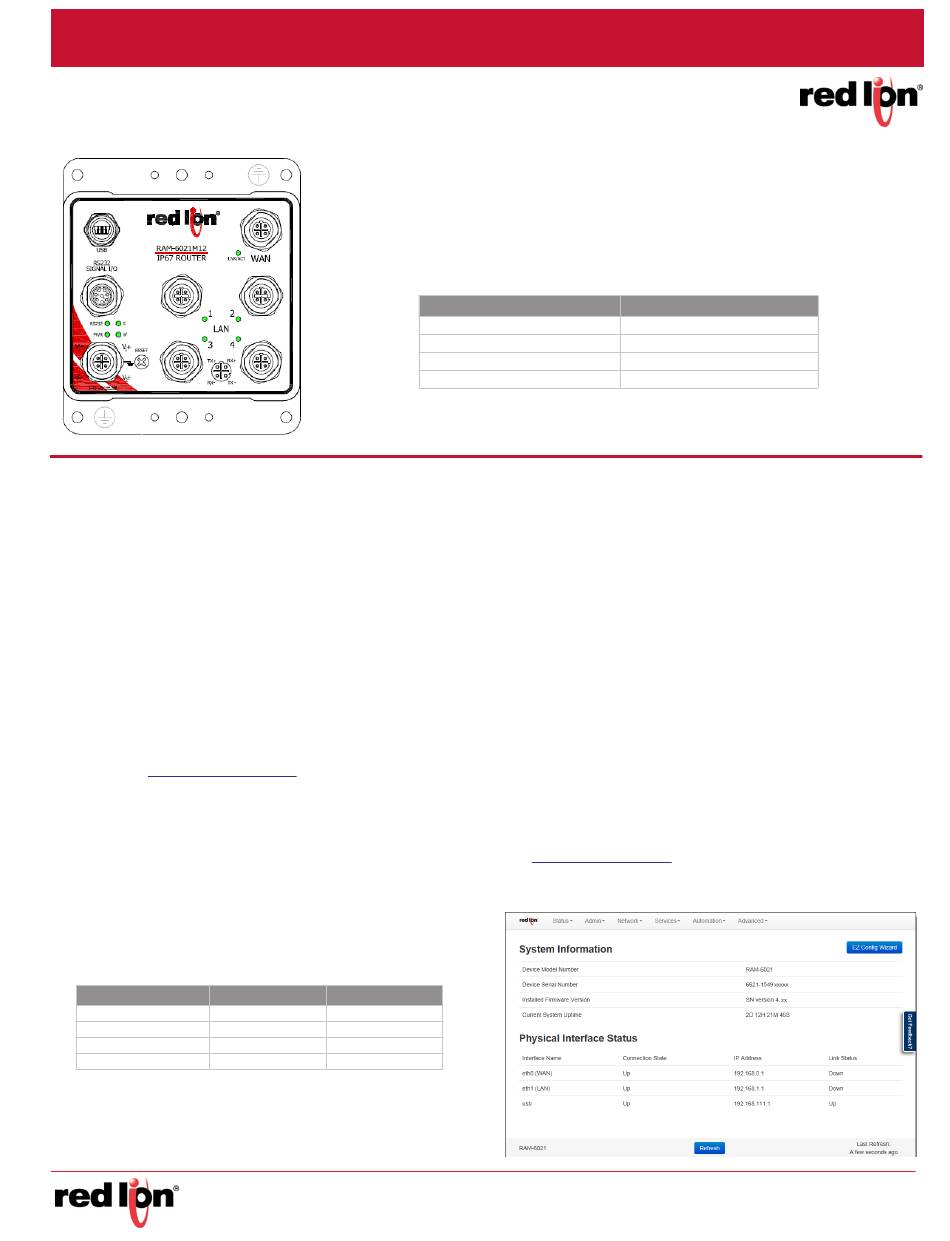

Quick Start Guide
RAM® Series
Drawing No. LP1061-A
Description
Access Settings.

