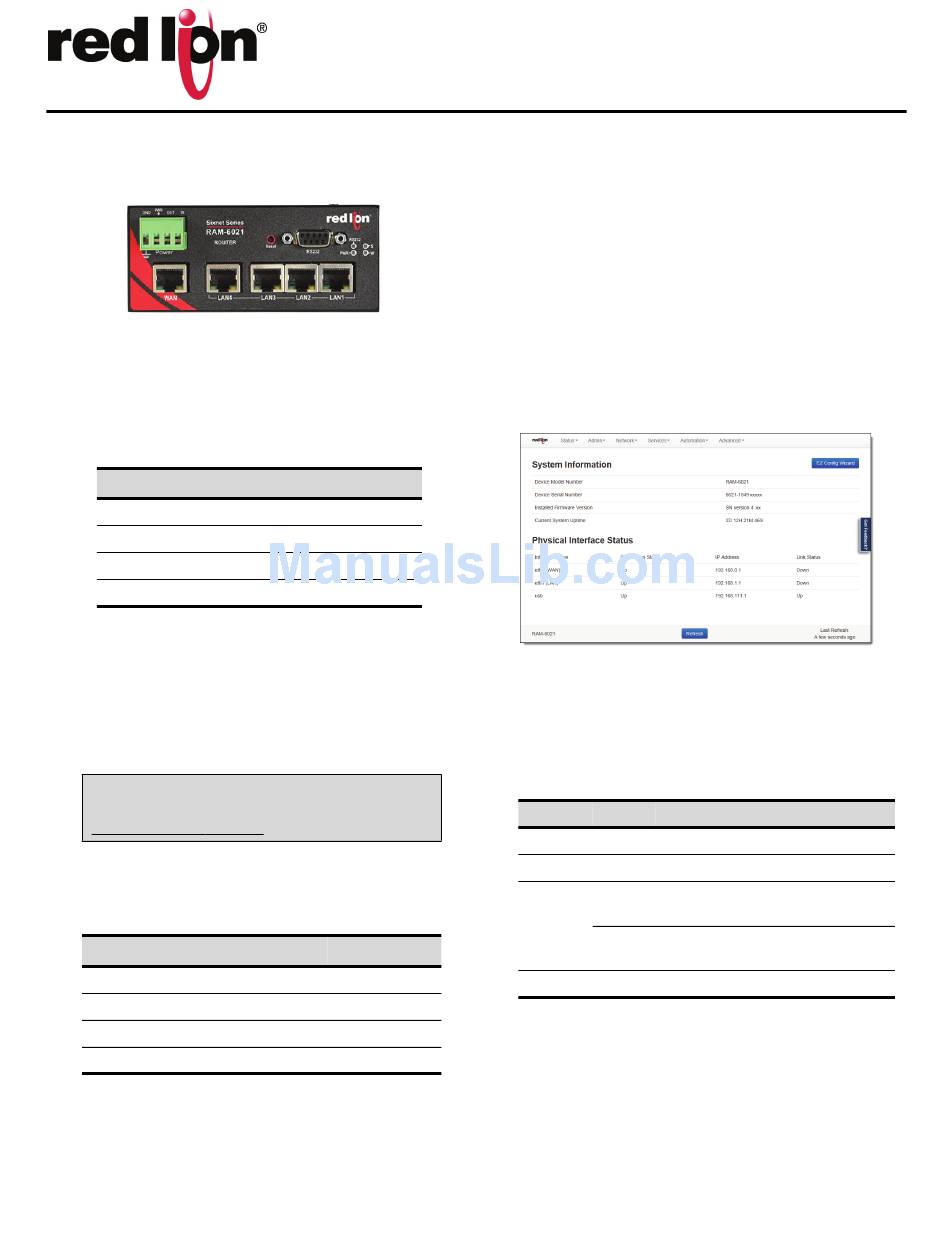

red lion RAM-6021 Quick Start Manual

UNPACKING INSTRUCTIONS

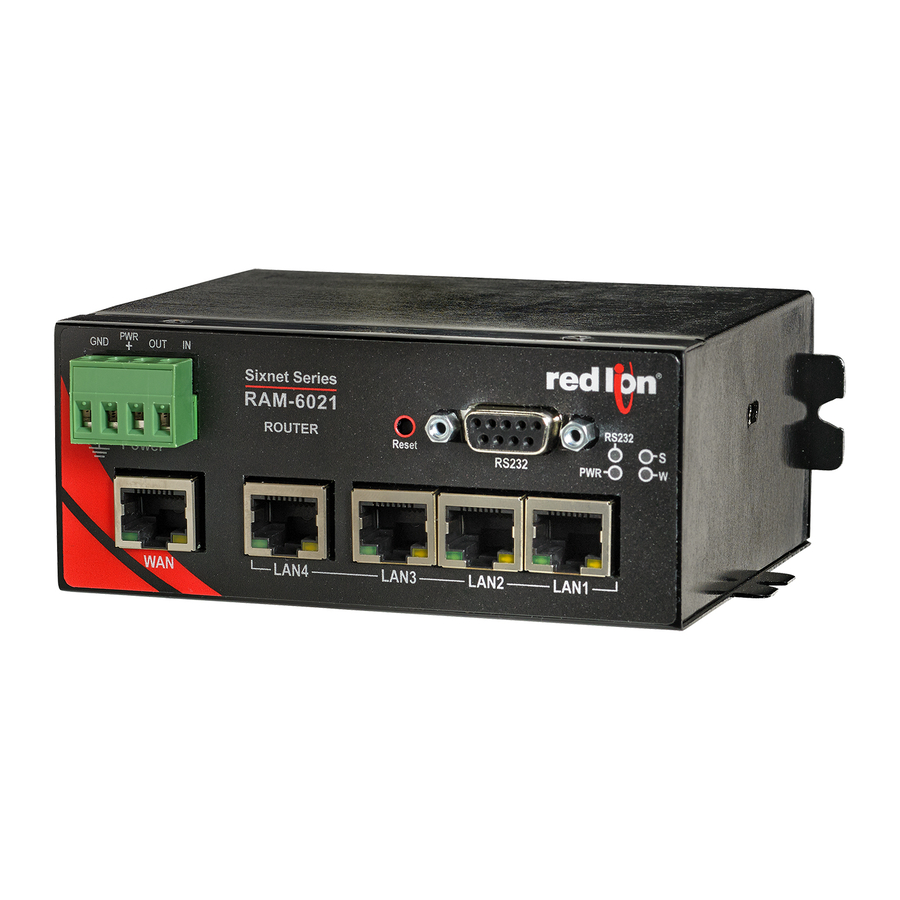

1. Unpack the Red Lion unit and verify the following components are
enclosed for the RAM-6021 Router: RAM-6021 & this quick start
guide.
2. There are 2 methods to provide power to the router:
• 4-pin screw terminal
• Side mounted 2.5mm barrel connector
The router requires a power source between 8 and 30 VDC to
operate:
LABEL DESCRIPTION
GND Ground
PWR+ Power 8 to 30 VDC (12 or 24 VDC nominal)
IN Digital and analog input
OUT Digital output
3. Connect to the WAN or LAN port for network connectivity.

ACCESSING THE WEB USER INTERFACE

1. Connect PC to the RAM-6021 Router
Connect a CAT-5 Ethernet cable between the local PC and the
unit's Ethernet port. Verify that the green LED is lit.
2. Setup PC IP Address
For assistance with configuring your PC, see the appropri-
ate Microsoft support webpage listed at:
http://support.microsoft.com
PC to Ethernet Interfaces
Select "Use the following IP address" and fill in the blank fields
with the information below:
WAN/ETH0
IP Address 192.168.0.2
Subnet Mask 255.255.255.0
Default Gateway 192.168.0.1
Preferred DNS 192.168.0.1
CONNECT. MONITOR. CONTROL.
3.

LOGIN INSTRUCTIONS

Upon successfully logging in, the web UI will launch.
Note: For security purposes, it is recommended that the admin pass-
word be changed according to your internal policies.
To change password, go to: Admin->Access Settings.
Web UI:
You are now connected to the web interface. If you should see anything
other than the screen shown above, please refer to the RAM-6021 User
Manual, located on our website: www.redlion.net.
For more information to set up Modbus features, please refer to the
RAM-6021 User Manual.

HARDWARE STATUS LEDs

LAN/ETH1
192.168.1.2
255.255.255.0
192.168.1.1
RED LION CONTROLS TECHNICAL SUPPORT
192.168.1.1
If you have followed all of the instructions up to this point, are satisfied
that you are not having an authentication problem and your unit is still
not communicating, then it it is time to contact Red Lion Technical Sup-
port at
© 2014 Red Lion Controls. All Rights Reserved
Access Web User Interface
Open a web browser and enter the following in the address bar:
• WAN/ETH0: http://192.168.0.1:10000/
• LAN/ETH1: http://192.168.1.1:10000/
• User Name: admin (lowercase letters)
• Password: last six digits of the unit's serial number
LED State Description
Power ON Power is applied to the router
W View section 1.1.7 in Hardware Guide
ON Link established with serial device but
no data activity
RS232
FLASH Data transmitted/received with
attached serial device
Ethernet ON Link established with Ethernet device
support@redlion.net or 1-877-432-9908.

QUICK START GUIDE

RAM-6021
WIRED ROUTER
1
