3. Configuration

By using jumpers it is possible to set on what kind of event should departure switch
react by closing or opening its contacts. The departure switch can react to three
different events: dep. switch on/off from the SWITCH 1, dep. switch on/off from the
SWITCH 2 and pick up/hang up the telephone line (means beginning and end of the
call).

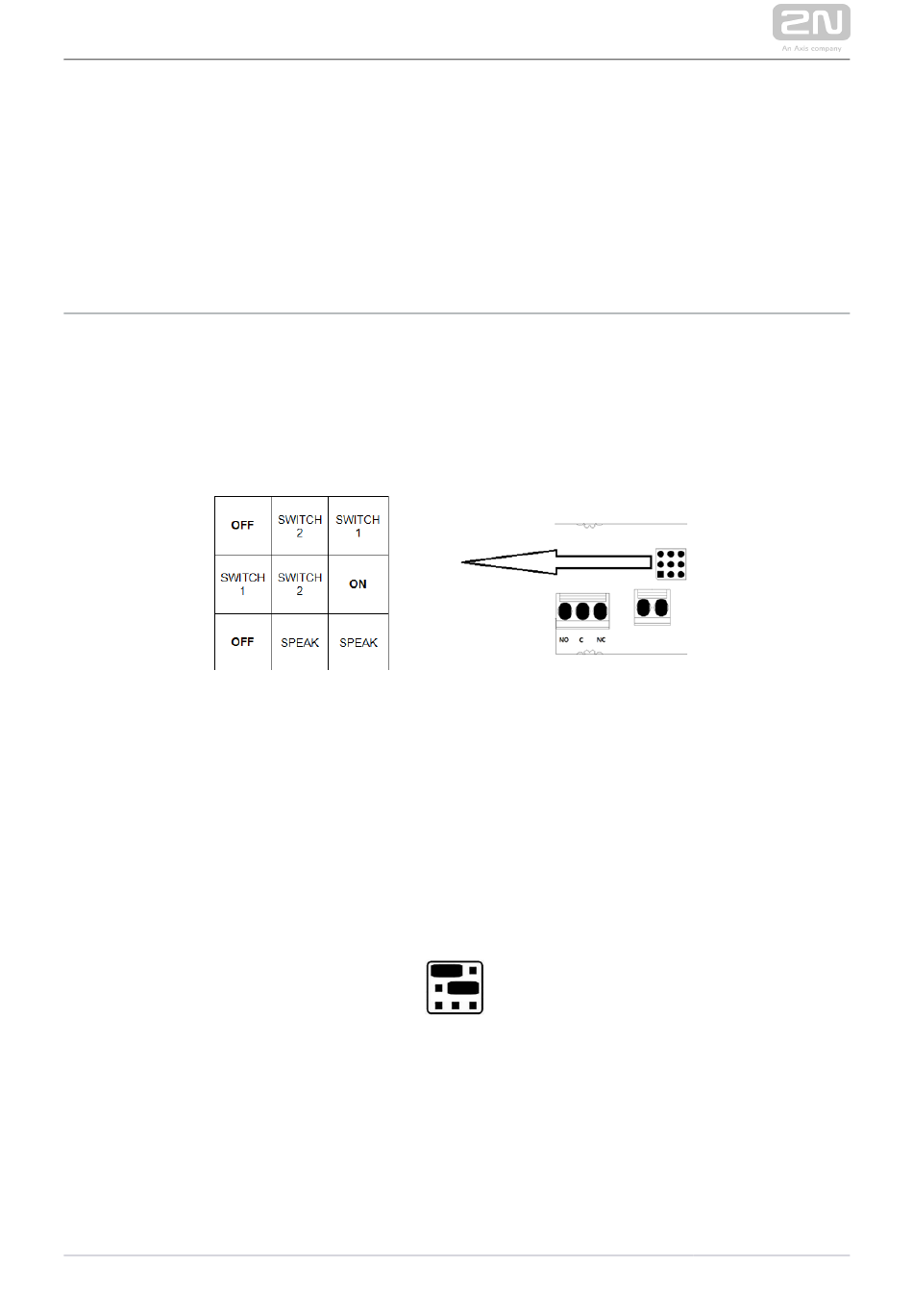

The dep. switch contacts are available both normally open (between clips NO and C)
as well as normally closed (between clips C and NC). NC and NO in this case refers to
the contact state. see pic. above.
Example 1 – dep. switch operation by using password for SWITCH 2
Switching on and off is set to SWITCH 2. Dep. switch will close after receiving
password for SWITCH 2 (parameter
821
) and open after the switching time for
SWITCH 2 (parameter
823
) will elapse. If you set parameter
824
to non-zero value, will
be also synchronized with SWITCH 1 (explained in the communicator manual).
2N TELEKOMUNIKACE a.s., www.2n.cz
8/12
