- Page 1 AXIS T85 PoE+ Network Switch Series AXIS T8504-R Industrial PoE Switch AXIS T8508 PoE+ Network Switch AXIS T8516 PoE+ Network Switch AXIS T8524 PoE+ Network Switch User Manual...
-
Page 2: Table Of Contents
How to connect a 60 W camera (AXIS T8504-R) ..... . . How to use the console port (AXIS T8504-R) ...... -
Page 3: About This Document
AXIS T85 PoE+ Network Switch Series About this document About this document Note The product is intended for use by network administrators who are responsible for operating and maintaining network equipment. Basic working knowledge of general switch functions, security, the Internet Protocol (IP), and Simple Network Management Protocol (SNMP) is assumed. -
Page 4: Solution Overview
AXIS T85 PoE+ Network Switch Series Solution overview Solution overview... -
Page 5: Product Overview

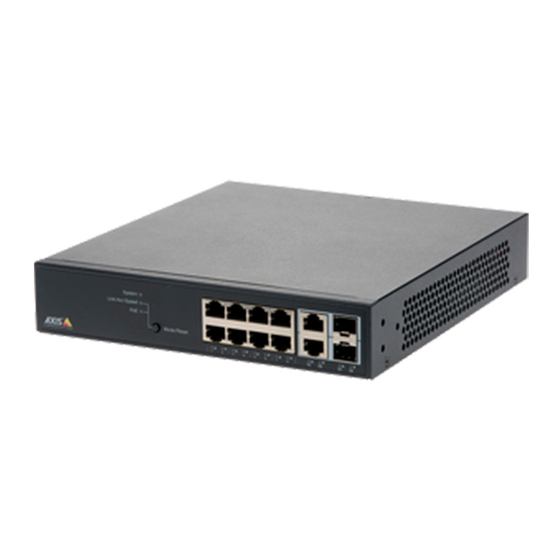

AXIS T85 PoE+ Network Switch Series Product overview Product overview AXIS T8504-R Industrial PoE Switch Product label RJ45 ports (PoE+) x4 RJ45 ports (Uplink) x2 SFP slots x2 LEDs (front panel) Power connector x2 Digital input Digital output relay Console connector... - Page 6 AXIS T85 PoE+ Network Switch Series Product overview LEDs (front panel) Mode/reset button RJ45 ports (PoE+) x8 RJ45 ports (non-PoE) x2 SFP slots x2 Power connector Product label AXIS T8516 PoE+ Network Switch Bracket LEDs (front panel) Mode/reset button RJ45 PoE ports 1-16...
- Page 7 AXIS T85 PoE+ Network Switch Series Product overview AXIS T8524 PoE+ Network Switch Bracket LEDs (front panel) Mode/reset button RJ45 ports (PoE+) x24 RJ45 ports (non-PoE) x2 SFP slots x2 Power connector Product label...
-
Page 8: Get Started
Install, connect and power up the product as specified in its Installation Guide. 1. Use AXIS IP Utility or AXIS Device Manager to find the product on the network. For information on how to discover and assign an IP address, go to axis.com/support 2. -
Page 9: Get To Know Your Product's Web Page
AXIS T85 PoE+ Network Switch Series Get started Get to know your product’s web page Basic features Advanced features Toggle button - switch between windowed and full screens RJ45 port (PoE+) status indicators RJ45 port (non-PoE) status indicators SFP port status indicators... -
Page 10: Access Devices In Your Product's Network
AXIS T85 PoE+ Network Switch Series Access devices in your product's network Access devices in your product's network Topology view The topology view allows you to remotely access, manage and monitor all discovered IP devices in your product’s network, for example via a tablet or a smart phone. -
Page 11: Setup Examples
AXIS T85 PoE+ Network Switch Series Setup examples Setup examples Set up access VLANs VLANS are typically used on large networks to create multiple broadcast domains, but they can also be used to segregate network traffic. For example, video traffic can be part of one VLAN, and other network traffic can be part of another. -
Page 12: Reserve An Ip Address Based On Mac Address
AXIS T85 PoE+ Network Switch Series Setup examples 2. Under Basic Settings in the Protocol Version drop-down menu, select RSTP, and click Apply. 3. Go to Advanced > Spanning Tree > Configuration > CIST Port. 4. Under CIST Normal Port Configuration, make sure that STP Enabled is selected for the switch’s ports as follows: Switch –... -
Page 13: Check Connection Status Via Poe Auto Checking
AXIS T85 PoE+ Network Switch Series Setup examples If you want to use the same schedule for all days of the week, select the start and end times on the Week Day row marked with an asterisk (*). If you want to use the same schedule for certain days of the week only, select the start and end times for selected days on the respective Week Day rows. -
Page 14: How To Connect A 60 W Camera (Axis T8504-R)
AXIS T85 PoE+ Network Switch Series Setup examples How to connect a 60 W camera (AXIS T8504-R) 1. Go to Basic > Basic Settings > PoE > Power Management. 2. Under PoE Port Configuration in the PoE Mode drop-down menu, select 2–pair. -
Page 15: Maintenance
AXIS T85 PoE+ Network Switch Series Maintenance Maintenance Restart the product Note Any configuration files or scripts you have saved in the product are available after restart. 1. Go to Advanced > Maintenance > Restart Device. 2. If you want to simulate a power-on (cold restart), select Force Cool Restart. This will impact the traffic routed through the product. -
Page 16: Revert To Alternate Firmware Image
AXIS T85 PoE+ Network Switch Series Maintenance 4. Click Upload. After firmware upgrade, the product will restart normally. Revert to alternate firmware image You can choose to use the alternate (backup) firmware image instead of the active (primary) firmware image in the product. -
Page 17: Specifications
The lights are ON for all LEDs Green (blink) default settings Mode/reset button (AXIS T8508, AXIS T8516, AXIS T8524) Press the Mode/Reset button for a certain period of time to perform the following tasks. Task to be performed Time period of pressing... - Page 18 AXIS T85 PoE+ Network Switch Series Specifications Color Indication Alarm The switch has detected an abnormal Red (lit) state, for example temperature or voltage out of range. The system is normal. Ring master LED Indication Color Ring Master has been detected in the Green (lit) switch.
- Page 19 AXIS T85 PoE+ Network Switch Series Specifications RJ45 ports Down The port is enabled and supplying power Green (lit) to connected device. The switch has detected an abnormal Amber (lit) state, for example overload. The port has no active network cable connected, or it is not connected a PoE device.
- Page 20 AXIS T85 PoE+ Network Switch Series Specifications By pressing the Mode/Reset button in less than 2 seconds to change LED modes (Link/Act/Speed Mode or PoE Mode), users can check the port status by reading the LED behaviors in the tables below.
- Page 21 User Manual Ver. M5.3 AXIS T85 PoE+ Network Switch Series Date: May 2021 © Axis Communications AB, 2017 - 2021 Part No. T10114339...
