4. External button switch

External switch functional description
After an external button (
switch
on the pic. above) is pushed (switch OFF/ON), The
"departure switch" occurs regardless of
configuration settings
. After an external
button is released (switch ON/OFF) "departure switch" ends automaticaly after preset
delay time by adjustable rotary trimmer from approx. 1 sec. up to 6 sec. regardless of
configuration settings NC and NO on the pic. below in this case refers to the door
.
state if switch is in OFF state
.
Both connectors (for external button and door lock) are galvanically isolated from
each other and main electrical circuitry of the main communicator board.
How to connect

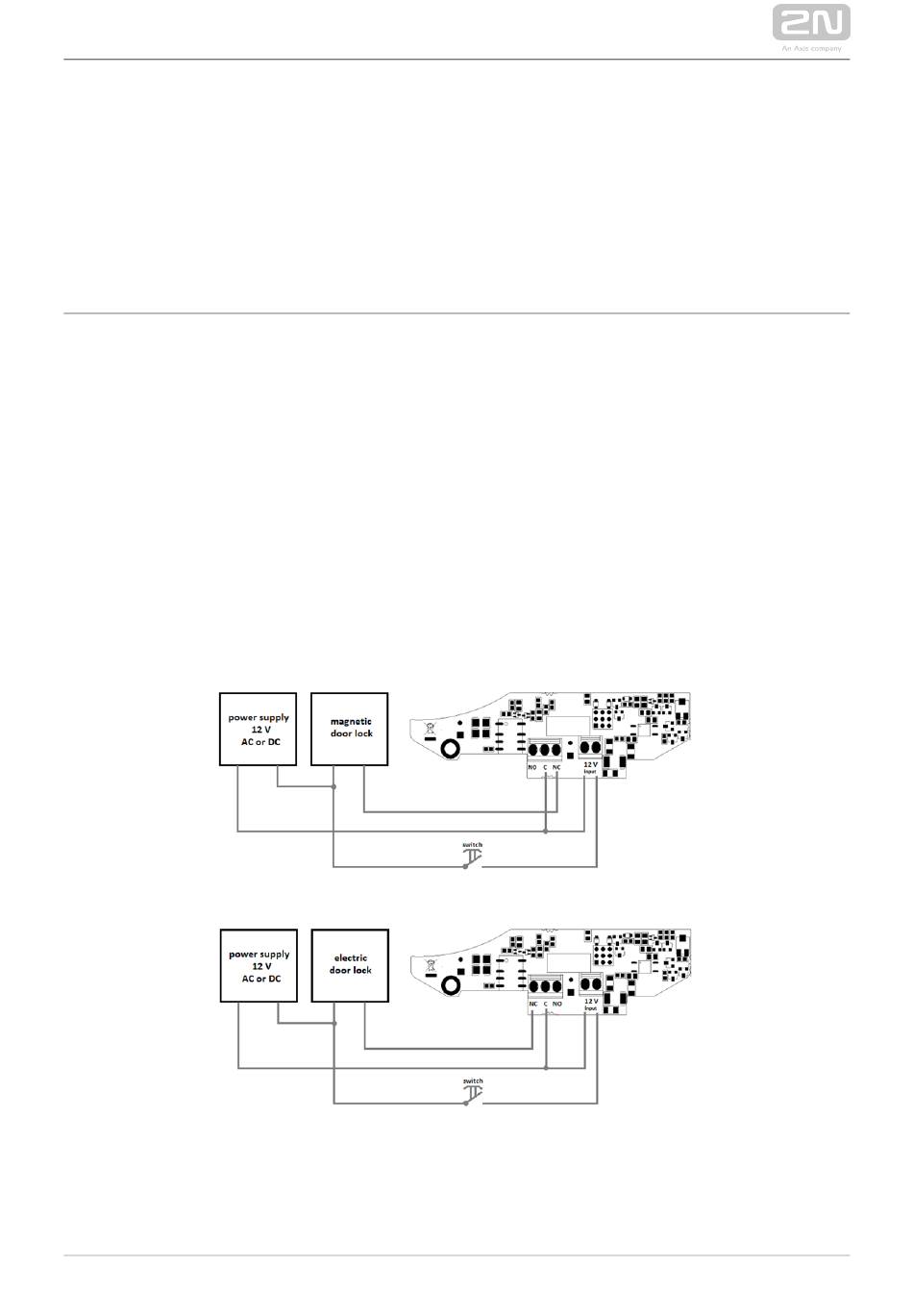

Examples on how to connect lock in case of one power supply:
2N TELEKOMUNIKACE a.s., www.2n.cz
10/12
