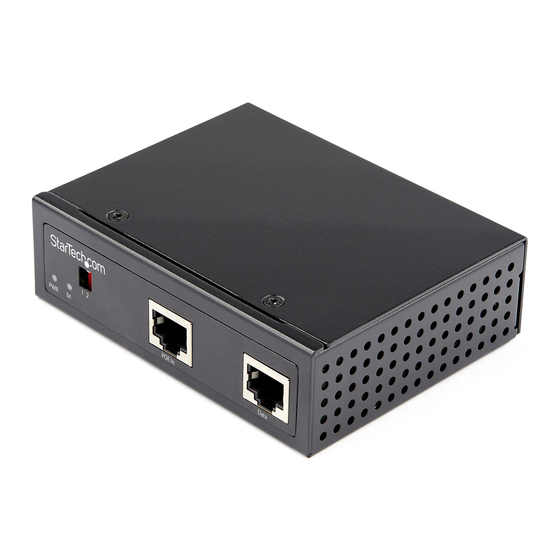

StarTech.com POESLT1G48V Quick Start Manual

60W Industrial-Grade Hardened 802.3bt PoE Splitter 10/100/1000Mbps (48VDC Max Output)

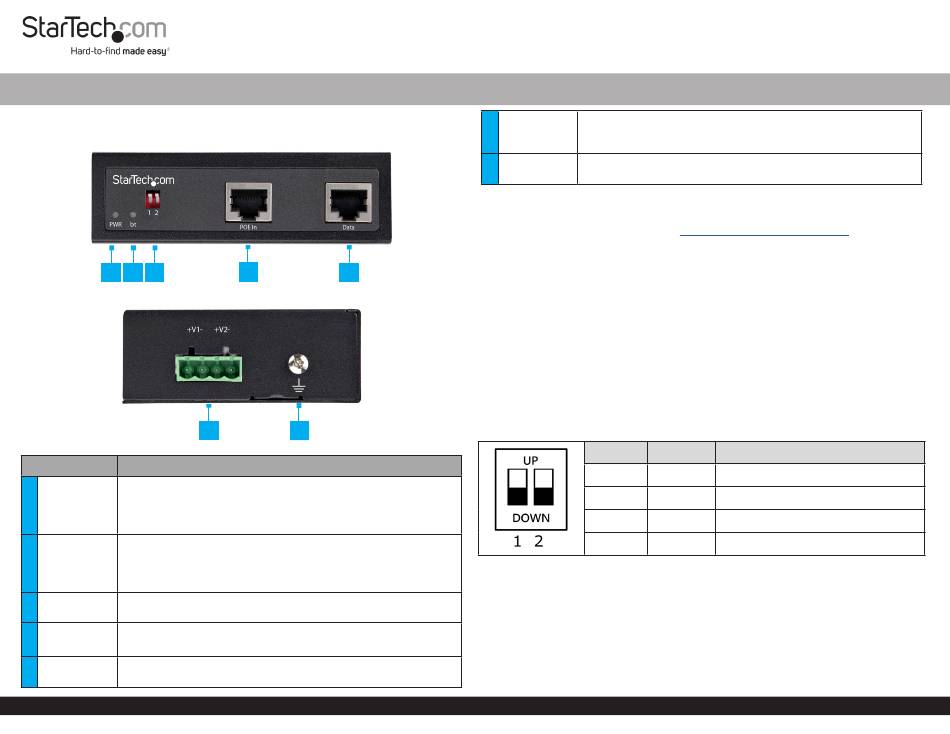

Product Diagram (POESLT1G48V)
Front View
1 2 3
Side View
Component
• On - Power output is detected on Terminal Block Power
Output Port
PWR LED
1
Indicator
• Off - Power output is not detected Terminal Block Power
Output Port
• On - POE IEEE 802.3bt and Power Source Equipment (PSE) is
detected on PoE Input Port
bt LED
2
Indicator
• Off - POE IEEE 802.3bt and PSE is not detected on PoE Input
Port
DIP Switches • Select the desired output voltage for the Terminal Block Power
3
1 and 2 Output Port
• Connect PSE via RJ45 Terminated Network Cable
PoE Input
4
Port
• Supported power input voltage range is 15W up to 90W
• Connect a Non-PoE Device via RJ45 Terminated Network
5
Data Port
Cable
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
4 5
6 7
Function
Terminal
• Provides power to Non-PoE Equipment
6
Block Power
• Supported power input voltage range is 44-57V
Output Port
Grounding
7 • Attach a Grounding Wire to protect Network Equipment
Screw
Requirements
For the latest requirements, please visit www.startech.com/POESLT1G48V.
• Power Source Equipment (ex. PoE Gigabit Switch, PoE Injector) x 1
• RJ45 Terminated UTP/STP Cat 5e (or better) Network Cable (sold separately) x 2
• Earth Ground Connection x 1
• Grounding Wire x 1
• (Optional - for power) Flat Head Screwdriver x 1
• (Optional - for mounting) Phillips Head Screwdriver x 1
• (Optional - for mounting) Screws x 2
Installation
Select DC Output Voltage using the DIP Switches
Toggle the DIP Switches up and/or down to select the output voltage of the Terminal
Block Power Output Port.
DIP1 DIP2
UP UP
DOWN UP
UP DOWN
DOWN DOWN
Grounding the PoE Extender
Connect a Grounding Screw to the Grounding Point on the PoE Splitter and to the
Earth Ground Connection.
Connecting the PoE Splitter
1. Connect a Network Cable to the PoE Output Port of the Power Source Equipment
and to the PoE Input Port on the PoE Splitter.
Quick-Start Guide
Output voltage / Output current
48VDC / 1.5A (default)
24VDC / 2.3A
16VDC / 2.3A
12VDC / 2.3A
Manual Revision: June 18, 2020
