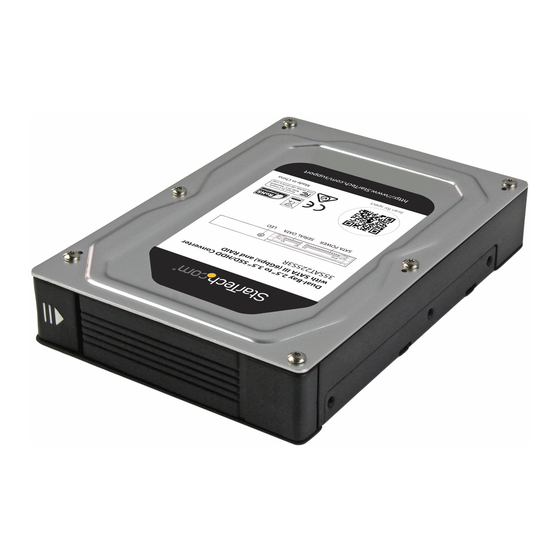

StarTech.com 35SAT225S3R Quick Start Manual

Dual-Bay 2.5" to 3.5" SATA SSD/HDD Converter | RAID

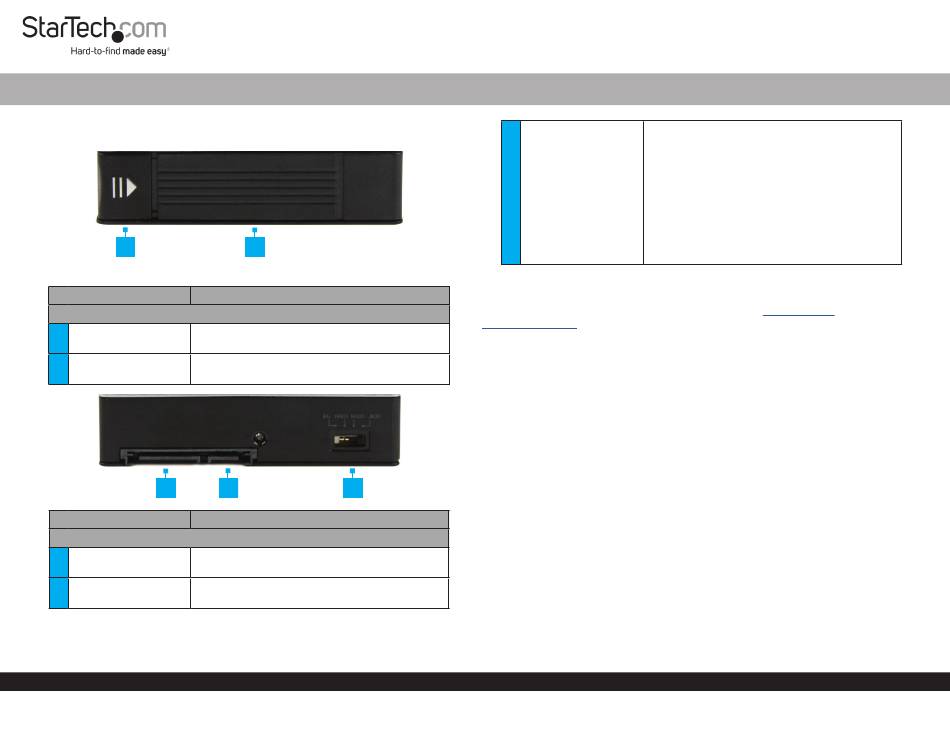

Product Diagram (35SAT225S3R)
1
Port
• Used to open the Front Door, giving the user
1 Front Button
access to the SATA Drive Slot.
• Used to secure the SATA Drive in the SATA
2
Front Door
Drive Slot.
3
Port
• Used to connect a Power Supply to the
3 SATA Power Port
Converter.
• Used to connect the Converter to a
4
RJ-45 Port
Computer's Motherboard.
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
2
Function
Front
4
5
Function
Back
Redundant Array of Independent Disks (RAID)
combines disk drive components to reduce
redundancy and increase performance.
• BIG: Combines the free space on multiple disk
drives.
• RAID1: Data Mirroring without parity or
5 RAID Switch
stripping.
• RAID0: Data Stripped without mirroring or
parity.
• JBOD: Just a bunch of drives, multiple disk
drives operating independently.
Requirements
For the latest requirements and full manual, please visit
com/35SAT225S3R.
Insert a drive into the converter
Warning! Drives should be handled carefully. If you're not careful with your drives,
you may lose data as a result.
1. Push in on the side of the Front button and lift the Front door away from the
converter.
2. Gently slide the SATA connector on the drive into the corresponding connector on
the converter.
Note: The connector on your drive is keyed so that it only fits in the adapter one way.
3. If necessary, repeat steps 1 and 2 to install a second drive.
4. Push the Front door closed.
Install the converter in a computer
1. Turn off the computer that you want to install the converter into.
2. Open your computer case. For more information about how to do this properly,
consult the documentation that came with your computer system.
3. Insert the converter into the 3.5 in. drive slot in your computer.
4. Insert two of the mounting screws through the side of the drive slot and into the
side of the converter.
Quick-Start Guide
www.startech.
Manual Revision: January 15, 2019 11:50 AM
